Bambi VT - Page 32

30

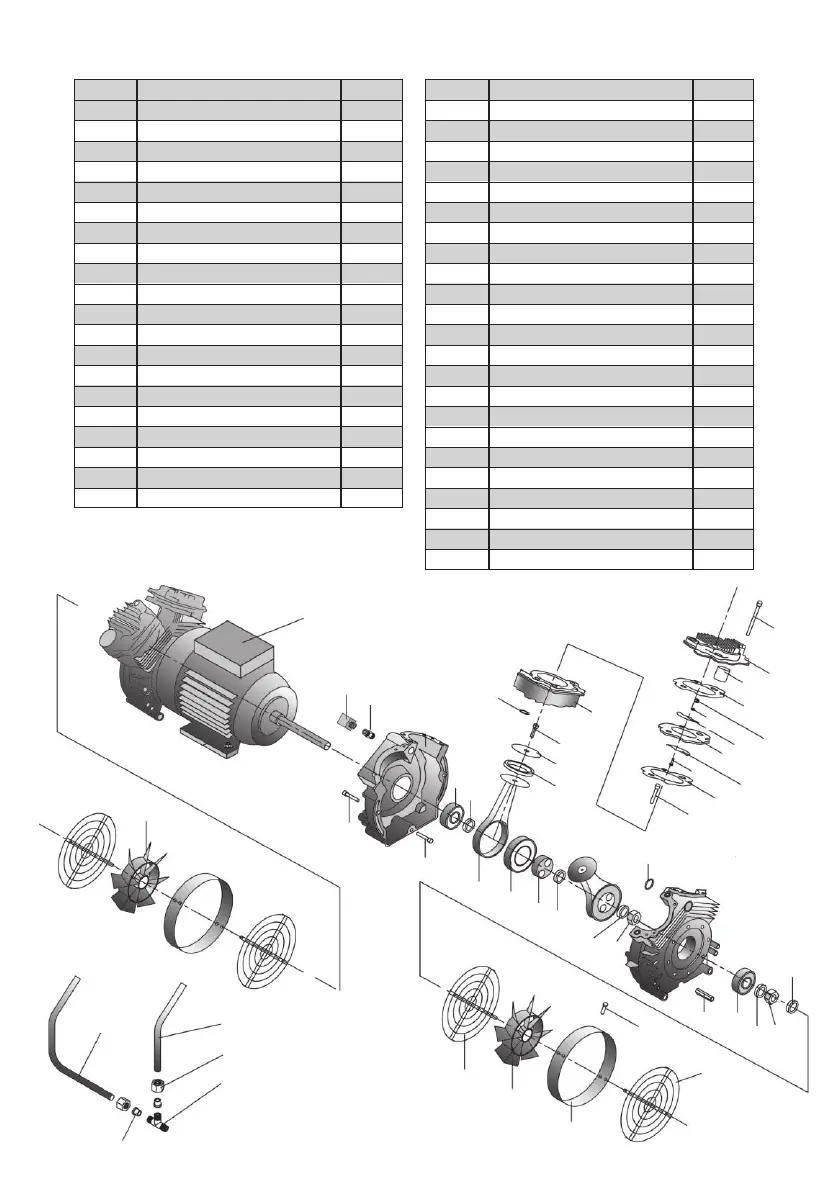

Motor / Pump Parts:
VT250 / VT250D / VTS250 / VTS250D
Ref No. Description Part no.
2a Outlet connector BPB0614
2b Outlet connector BPB0654
3 Block fixing BPB0665
5 Block screw BPB0667
6 Block bearing BPB0668
7 Short spacer BPB0669
8 Con rod BPB0670
9 Con rod bearing BPB0671
10 Eccentric BPB0672
11 Large spacer BPB0673
12 Capacitor BPB0701
13 Block O ring BPB0674
14 Eccentric nut BPB0984
16 Stud bolt BPB0676
17 Washer BPB0677
18 M16 nut BPB0678
19 VT250 Outer fan cover BPB0991
20 VT250 fan ring BPB0990
21 Fan cover fixing BPB0706
22 VT250 Right hand fan BPB0988
23 VT250 Inner fan cover BPB0987
24 Piston seal BPB0623
25 Top washer BPB0693
26 Top washer screw BPB0692
27 Cylinder BPB0690
28 Valve plate gasket BPB0621
29 Inlet valve strip BPB0685
30 Outlet valve strip BPB0685
31 Valve plate nut BPB0683
32 Cylinder head gasket BPB0620
33 Inlet filter BPB0682
34 Cylinder head BPB0681
35 Cylinder head bolt BPB0680
36 Valve plate washer BPB0684
37 Valve plate BPB0686
38 Valve plate bolt BPB0687
39 Cyinder bolt BPB0688
40 Cylinder O ring BPB0691
41 VT250 Left hand fan BPB0989
42 90° connecting pipe BPB0993
43 Straight pipe BPB0994
44 Tee piece BPB0992
45 Connecting pipe nut BPB0986
46 Connecting pipe olive BPB0985
3
5
6
7
8
13
14
15
16
17
18
19
20
21
24
25
26
27
28
30
31
32
33
34
36
1a
23
22
35
38
39
40
37
4
9
11
12
10
29
41
2
43
42
1b
5
14
4
Ref No. Description Part No.
1a Outlet connector BPB0614
1b Outlet connector BPB0654
2 Block fixing BPB0665
3 Block screw BPB0667
4 Block bearing BPB0668
5 Short spacer BPB0669
6 Con rod BPB0670
7 Con rod bearing BPB0671
8 Eccentric BPB0672
9 Large spacer BPB0673
10 Capacitor BPB0701
11 Block O ring BPB0674
12 Eccentric nut BPB0984
13 Stud bolt BPB0676
14 Washer BPB0677
15 M16 nut BPB0678
16 VT250 Outer fan cover BPB0991
17 VT250 fan ring BPB0990
18 Fan cover fixing BPB0706
19 VT250 Right hand fan BPB0988
20 VT250 Inner fan cover BPB0987
21 Piston seal BPB0623
22 Top washer BPB0693
23 Top washer screw BPB0692
24 Cylinder BPB0690
25 Valve plate gasket BPB0621
26 Inlet valve strip BPB0685
27 Outlet valve strip BPB0685
28 Valve plate nut BPB0683
29 Cylinder head gasket BPB0620
30 Inlet filter BPB0682
31 Cylinder head BPB0681
32 Cylinder head bolt BPB0680
33 Valve plate washer BPB0684
34 Valve plate BPB0686
35 Valve plate bolt BPB0687
36 Cyinder bolt BPB0688
37 Cylinder O ring BPB0691
38 VT250 Left hand fan BPB0989
39 90° connecting pipe BPB0993
40 Straight pipe BPB0994
41 Tee piece BPB0992
42 Connecting pipe nut BPB0986
43 Connecting pipe olive BPB0985
