The IT6000-C forms a locking dimple into
the Tie-Lok tie with the punch and cuts the
remaining tail. When installing a Tie-Lok tie,
a visual check is recommended to verify the
presence of a locking dimple after the tie
has been applied.
The IT5000-C forms a locking lip on the
preformed JR clamp and cuts the remaining
tail. When installing a JR clamp, a visual
check is recommended to verify the
presence of the locking lip after the clamp
has been applied.
Tie / Clamp Inspection
By controlling and monitoring the items that are needed to form a good lock, an operator
can help ensure that the clamp will be applied correctly without having to inspect every
assembly. The key issues are:
• Adequate air pressure and volume (Pg.10)
• Appropriately setting the tension and cutoff air pressure for the application (Pg.13)
• Angle of approach (Pg.15)
• Operator Handling Ergonomics (Pg.19)
• Mounting the tool on a weight balancer or custom fixture (Pg.21)
• Following the recommended Preventative Maintenance schedule (Pg.25)

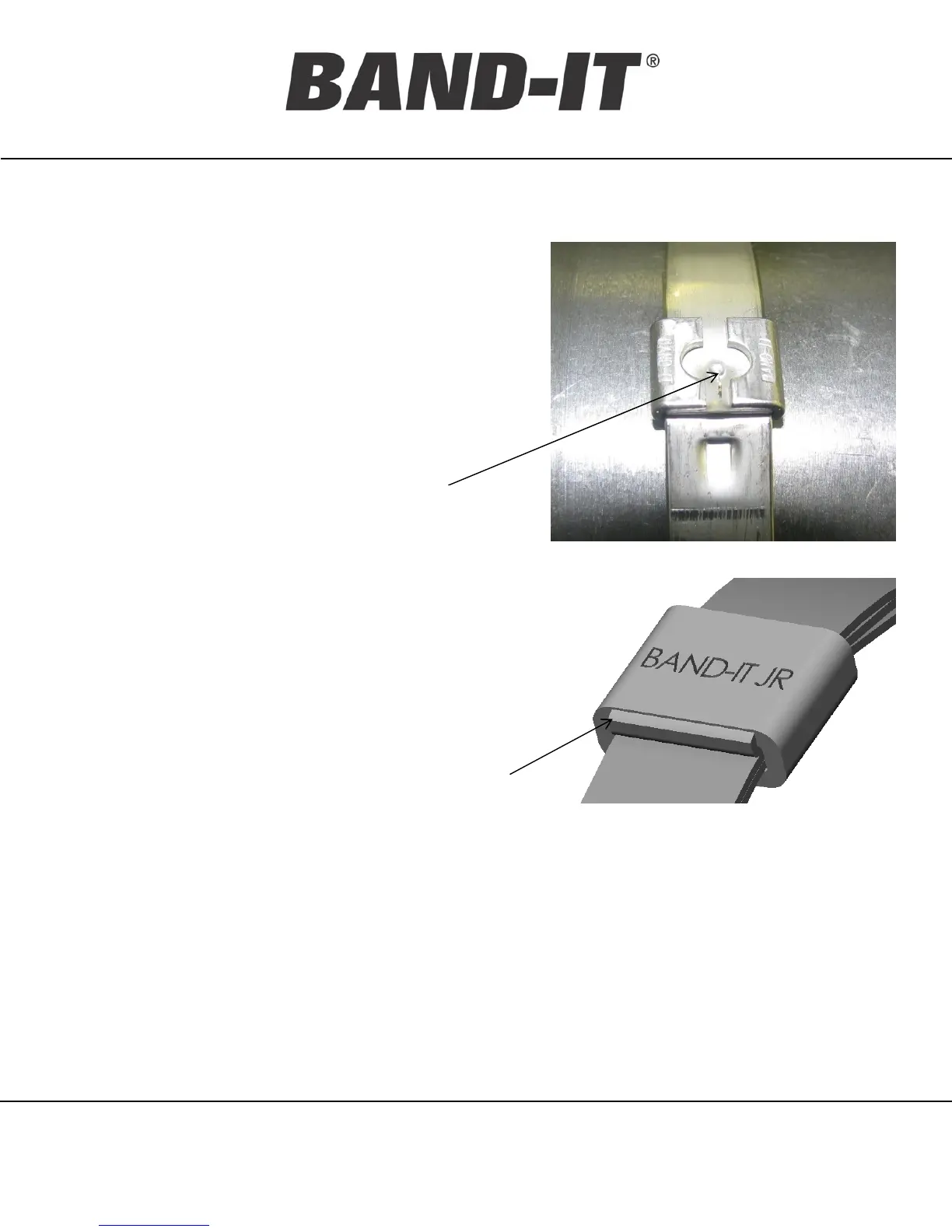

Locking Dimple
Locking Lip
