Clamp Placement

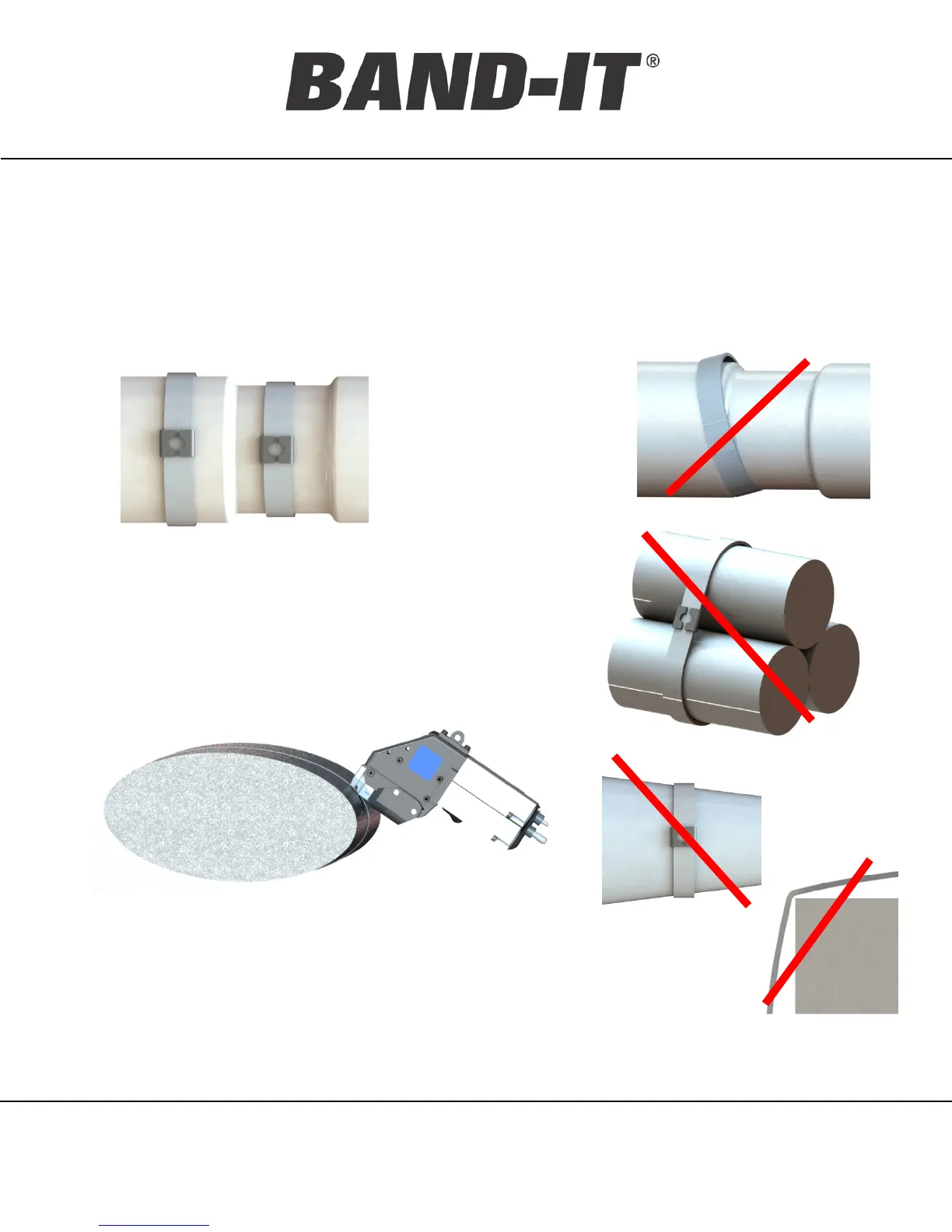

Buckle location is critical to clamp performance. Use the following guidelines as a reference.
• Band target area must be wider that the band and tool head with some additional
clearance for variation side to side.
• Do not install clamps at an angle
• Buckle locations cannot be over air gaps
• Avoid installing buckles on flat surfaces when possible
• On large oval shapes locate buckle on smaller
radius.
• Do not install clamps around square corners
• Do not install clamps on tapered surfaces or on tube bends
• Tie-Lok & JR Clamp advised min installed diameter is 1”
For specific questions contact BAND-IT-IDEX Customer Service at 1-800-525-0758 or
303-320-4555 for more information.
