IT Tool Clearance Requirements

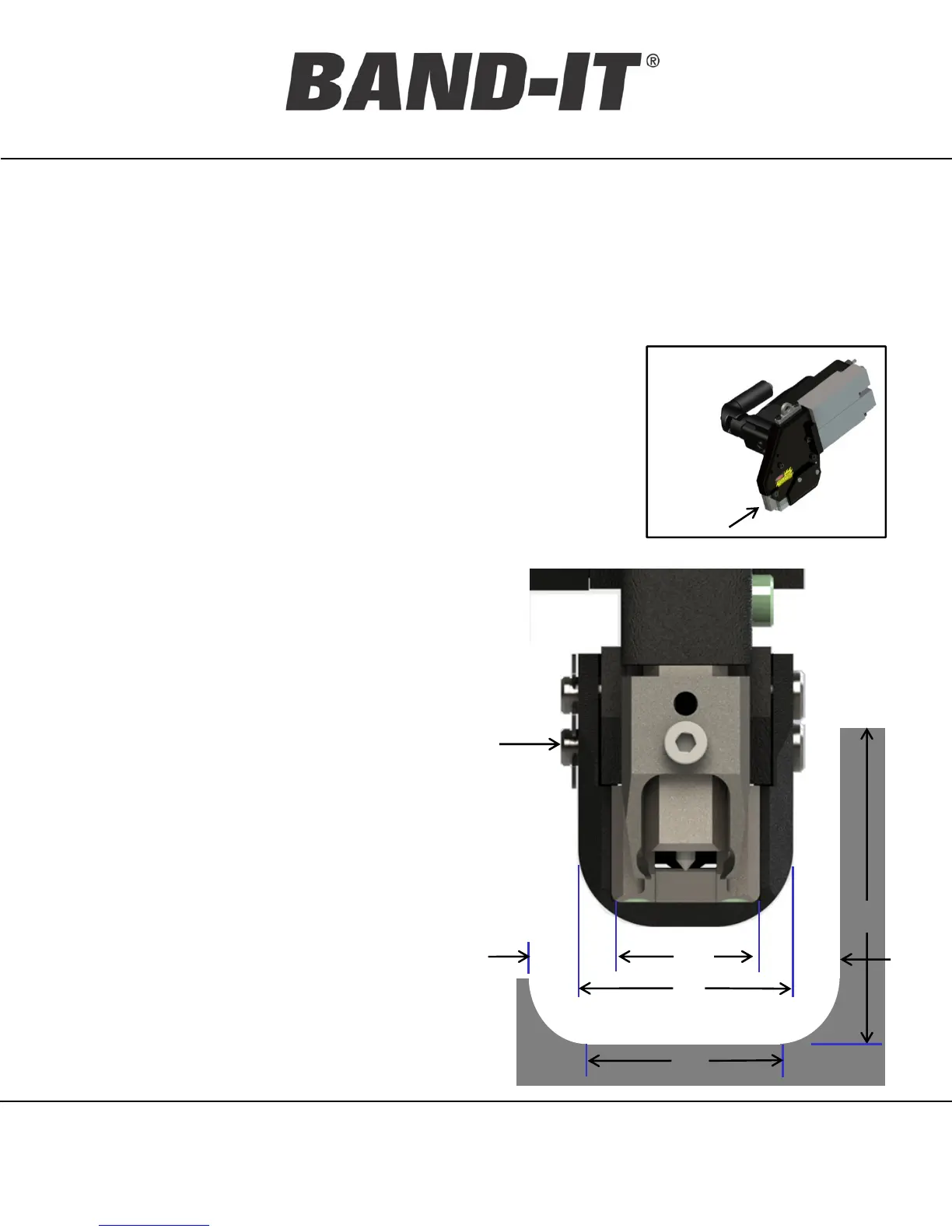

There are three common considerations for tool clearance
1. Channel Flat width (D)
• Must be wider than the blade (A) 0.96” [24.4mm]
2. Raised width (E)
• Must be wider than flip cover (B) 1.38” [35.1mm]
when between 0.23” - 1.5” [5.8 - 38.1mm] tall
• Must be wider than the pins (C) when taller than
1.5” [38.1mm]
3. Shoulder height (F) depends on tool orientation
• When under the handle, must be less than 2”
• When away from handle, width must increase to
give clearance to air cylinders, but no height
limitation.
A. Blade width
• 0.96” [24.4mm]
B. Flip cover width
• 1.38” [35.1mm]
C. Pin
D. Flat width
• > 0.96” [24.4mm]
E. Channel width
• > 1.38” [35.1mm]
F. Shoulder height
• < 2” [50.8mm]
A
B
D
E
Front
View
C
