B&M Boltzero Bunk Bed - Assembly Instructions; Step 9: Attaching Upper Slats; Step 10: Attaching Lower Slats

8
Assembly Instructions
Step 9
Step 10
Attaching upper slats
Note: Before
attaching the
slats ,
carefully make
adjustments to
ensure the bed
frame is straight.
Note: Position
the horizontal rail
below when
attaching the
slats onto the
bed.

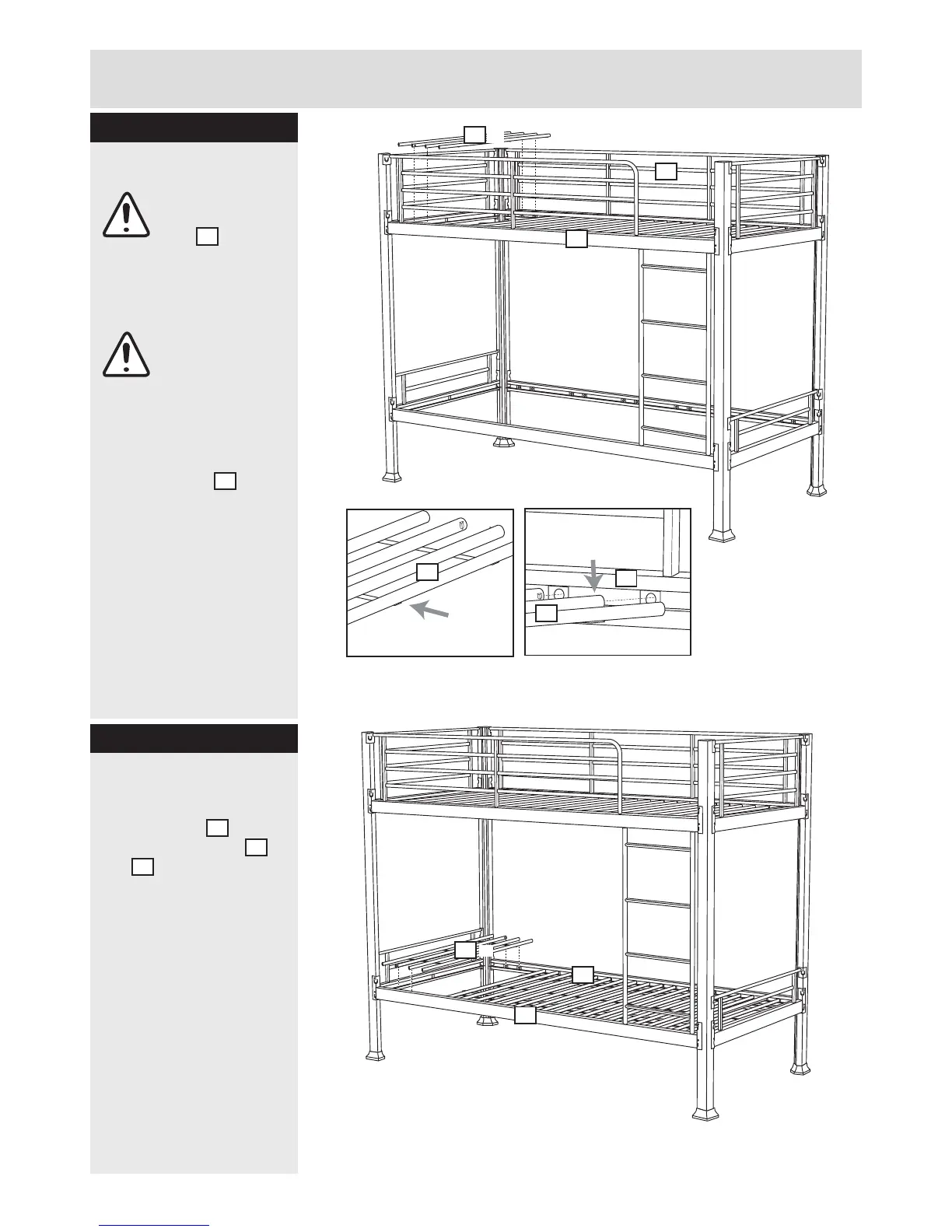

Starting on one end,
attach the slats one
by one into upper rails
(9) and (10). Push to
insert the button on the
slats into the hole on the
rails as shown. Make
sure it is lock when you
hear the ‘click’ sound.
Insert one end of the
slats first before inserting
and locking the other
end.
Attaching lower slats
Repeat step 9 to attach
the other slats into
holes on lower rails (6)
and (7).
11
11
x6
Insert button
to hole to lock
Cross rail
position bottom
11
11
11
10
10
9
x6
11
11
7
7
6
6
