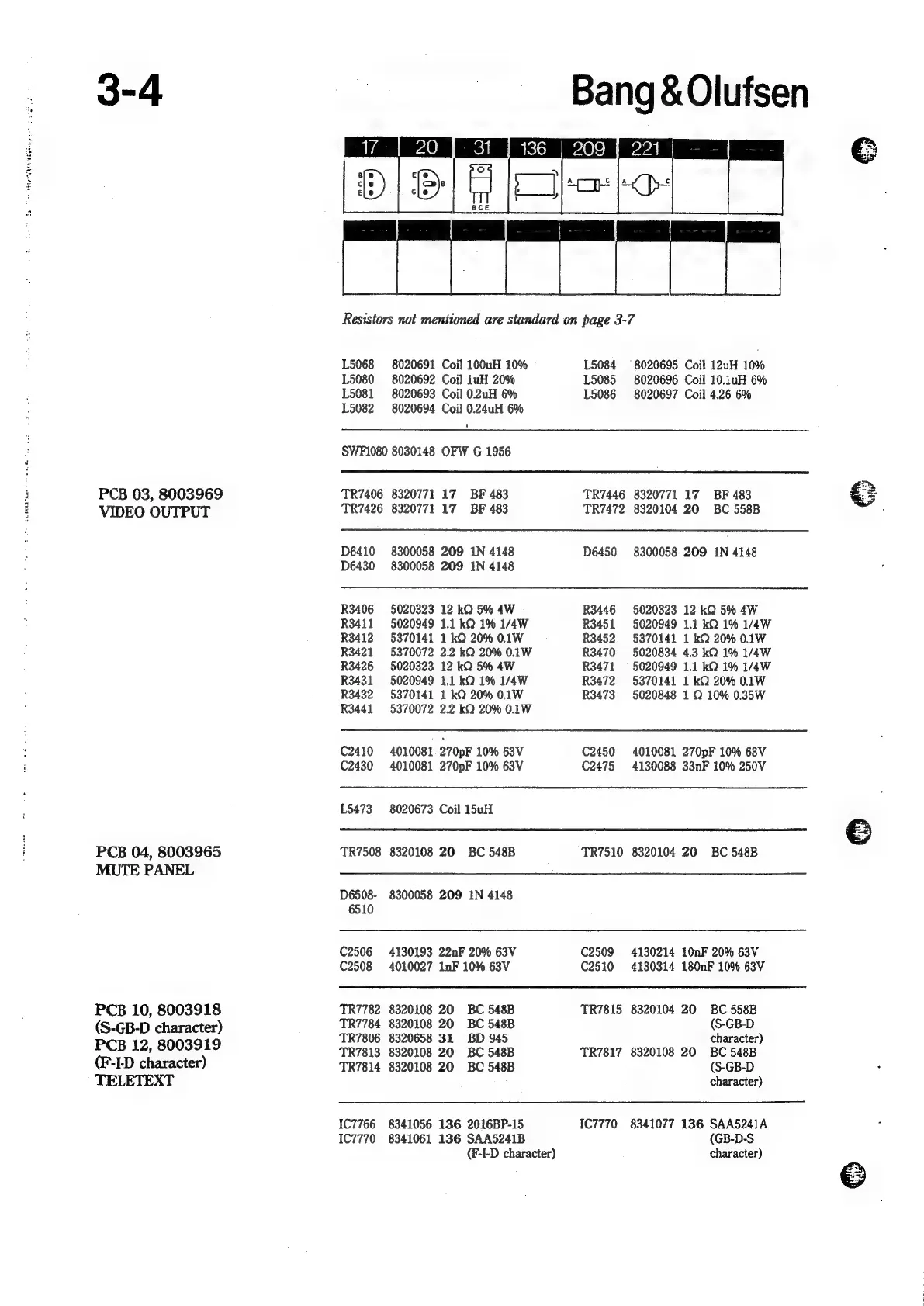

Bang & Olufsen Beolink 1000 Service Manual

te oe 8 Os
PRMD ee ek
PCB 03, 8003969
VIDEO OUTPUT
PCB 04, 8003965
MUTE PANEL
PCB 10, 8003918
(S-GB-D character)
PCB 12, 8003919
(F-1-D character)
TELETEXT
Bang &Olufsen
Resistors not mentioned are standard on page 3-7
L5068 8020691 Coil 100uH 10%
L5080 8020692 Coil luH 20%
L5081 8020693 Coil 0.2uH 6%
L5082 8020694 Coil 0.24uH 6%
SWF1080 8030148 OFW G 1956
L5084 8020695 Coil 12uH 10%
L5085 8020696 Coil 10.iuH 6%
L5086 8020697 Coil 4.26 6%
TR7406 8320771 17 BF 483
TR7426 8320771 17 BF 483
D6410 8300058 209 1N 4148
D6430 8300058 209 1N 4148
R3406 5020323 12 kQ 5% 4W
R3411 5020949 1.1 kQ 1% 1/4W
R3412 5370141 1 kQ 20% 0.1W
R3421 5370072 2.2 kQ 20% 0.1W
R3426 5020323 12 kQ 5% 4W
R3431 5020949 1.1 kQ 1% 1/4W
R3432 5370141 1 kQ 20% 0.1W
R3441 5370072 2.2 kQ 20% 0.1W
C2410 4010081. 270pF 10% 63V
C2430 4010081 270pF 10% 63V
15473 8020673 Coil 15uH
TR7508 8320108 20 BC 548B
D6508- 8300058 209 1N 4148
6510
C2506 4130193 22nF 20% 63V
C2508 4010027 InF 10% 63V
TR7446 8320771 17 BF 483
TR7472 8320104 20 BC 558B
ai
D6450 8300058 209 1N 4148
R3446 5020323 12 kQ 5% 4W
R3451 5020949 1.1 kQ 1% 1/4W
R3452 5370141 1 kQ 20% 0.1W
R3470 5020834 4.3 kQ 1% 1/44W
R3471 = 5020949 1.1 kQ 1% 1/4W
R3472 5370141 1 kQ 20% 0.1W
R3473 5020848 1 Q 10% 0.35W
C2450 4010081 270pF 10% 63V
C2475 4130088 33nF 10% 250V
©
TR7510 8320104 20 BC 548B
C2509 4130214 10nF 20% 63V
C2510 4130314 180nF 10% 63V
TR7782 8320108 20 BC 548B
TR7784 8320108 20 BC 548B
TR7806 8320658 31 BD 945
TR7813 8320108 20 BC 548B
TR7814 8320108 20 BC 548B
IC7766 8341056 136 2016BP-15
IC7770 - 8341061 136 SAA5241B
(F-I-D character)
TR7815 8320104 20 BC 558B
(S-GB-D
character)
TR7817 8320108 20 BC 548B
(S-GB-D
character)
IC7770 8341077 136 SAA5241A
(GB-D-S
character)
