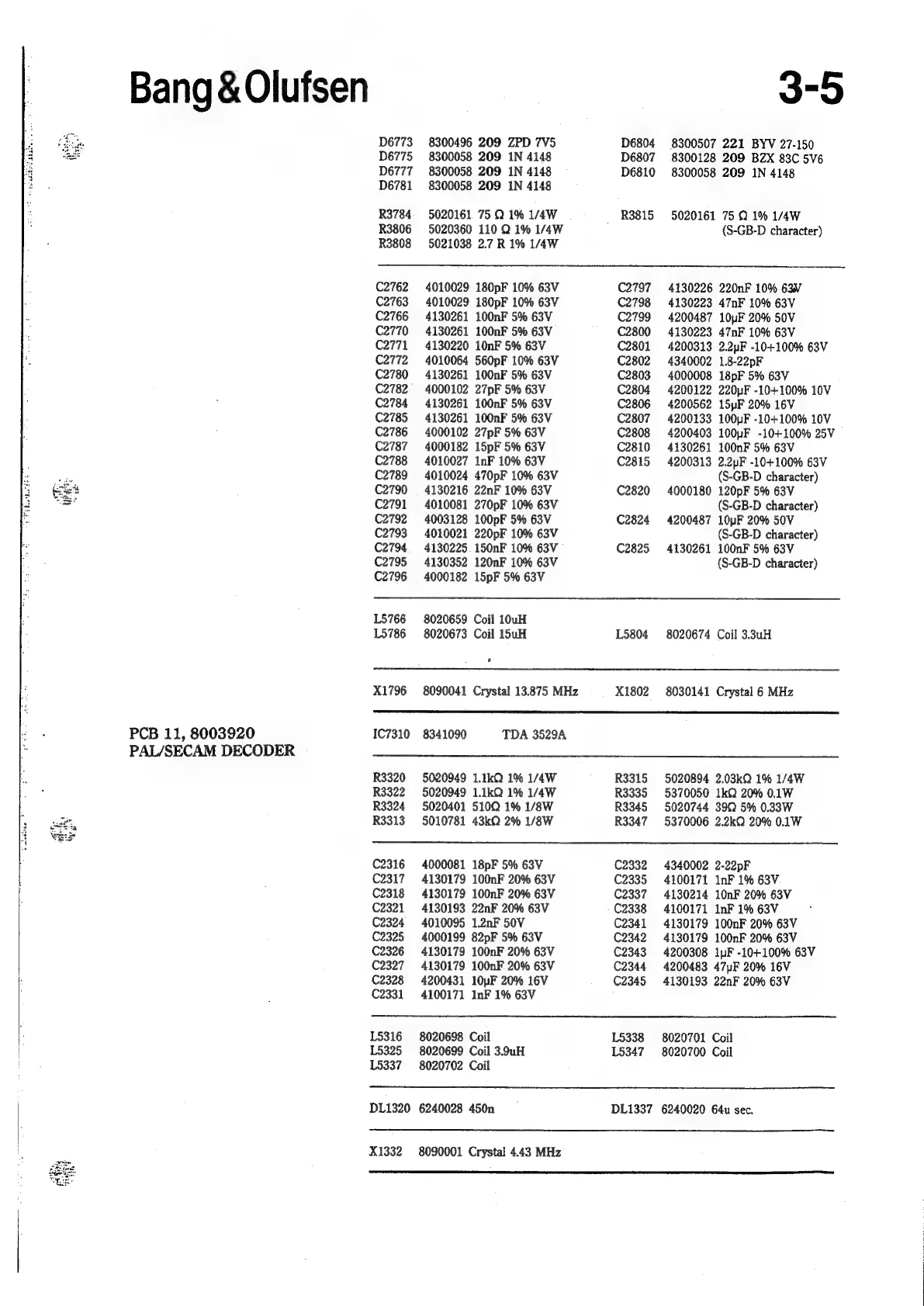

Bang & Olufsen Beolink 1000 Service Manual

Bang & Olufsen 3-5
;
D6773
8300496
209
ZPD
7V5
D6804
8300507
221
BYV
27-150
D6775
8300058
209
1N
4148
D6807
8300128
209
BZX
83C
5V6
D6777
~8300058
209
1N
4148
D6810
8300058
209
1N
4148
D6781
8300058
209
1N 4148
R3784.
5020161
75
2
1%
1/4W
R3815
5020161
75
2
1%
1/4W
R3806
5020360
110
Q
1%
1/4W
(S-GB-D
character)
R3808 5021038 2.7 R 1% 1/4W
C2762 4010029 180pF 10% 63V C2797 4130226 220nF 10% 63V
C2763 4010029 180pF 10% 63V C2798 4130223 47nF 10% 63V
C2766 «4130261 100nF 5% 63V C2799 4200487 10uF 20% S0V
C2770 4130261 100nF 5% 63V C2800 4130223 47nF 10% 63V
C2771 4130220 10nF 5% 63V C2801 4200313 2.2uF -10+100% 63V
C2772 4010064 560pF 10% 63V C2802 4340002 1.8-22pF
C2780 4130261 100nF 5% 63V C2803 4000008 18pF 5% 63V
C2782 4000102 27pF 5% 63V C2804 4200122 220pF -10+100% 10V
C2784 4130261 100nF 5% 63V C2806 4200562 15yF 20% 16V
C2785 4130261 100nF 5% 63V C2807 4200133 100pF -10+100% 10V
C2786 4000102 27pF 5% 63V C2808 4200403 100pF -10+100% 25V
C2787 =©©4000182 15pF 5% 63V C2810 4130261 100nF 5% 63V
C2788 4010027 1nF 10% 63V C2815 4200313 2.2uF -10+100% 63V
C2789 4010024 470pF 10% 63V (S-GB-D character)
C2790 4130216 22nF 10% 63V C2820 4000180 120pF 5% 63V
C2791 4010081 270pF 10% 63V (S-GB-D character)
C2792 4003128 100pF 5% 63V C2824 4200487 10pF 20% 50V
C2793 4010021 220pF 10% 63V (S-GB-D character)
C2794. 4130225. 150nF 10% 63V C2825 4130261 100nF 5% 63V
C2795 4130352 120nF 10% 63V (S-GB-D character)
C2796 4000182 15pF 5% 63V
L5766 8020659 Coil 10uH
L5786 8020673 Coil 15uH L5804 8020674 Coil 3.3uH
X1796 8090041 Crystal 13.875 MHz X1802 8030141 Crystal 6 MHz
PCB 11, 8003920 1C7310 8341090 TDA 35294
PAL/SECAM DECODER
R3320 5020949 1.1kQ 1% 1/4W R3315 5020894 2.03kQ 1% 1/4W
R3322 5020949 1.1kQ 1% 1/4W R3335 5370050 1kQ 20% O.1W
R3324 5020401 510Q 1% 1/8W R3345 5020744 392 5% 0.33W
: R3313 $010781 43kQ 2% 1/8W R3347 5370006 2.2kQ 20% 0.1W
C2316 4000081 18pF 5% 63V C2332 4340002 2-22pF
C2317 4130179 100nF 20% 63V C2335 4100171 InF 1% 63V
C2318 4130179 100nF 20% 63V C2337 4130214 10nF 20% 63V
C2321 4130193 22nF 20% 63V C2338 4100171 InF 1% 63V
C2324 4010095 1.2nF 50V C2341 4130179 100nF 20% 63V
C2325 4000199 82pF 5% 63V C2342 4130179 100nF 20% 63V
C2326 4130179 100nF 20% 63V C2343 4200308 1pF -10+100% 63V
C2327 4130179 100nF 20% 63V C2344 4200483 47uF 20% 16V
C2328 4200431 10uF 20% 16V C2345 4130193 22nF 20% 63V
C2331 4100171 InF 1% 63V
L5316 8020698 Coil L5338 8020701 Coil
15325 8020699 Coil 3.9uH L5347 8020700 Coil
15337 8020702 Coil
DL1320 6240028 450n DL1337 6240020 64u sec.
X1332 8090001 Crystal 4.43 MHz
