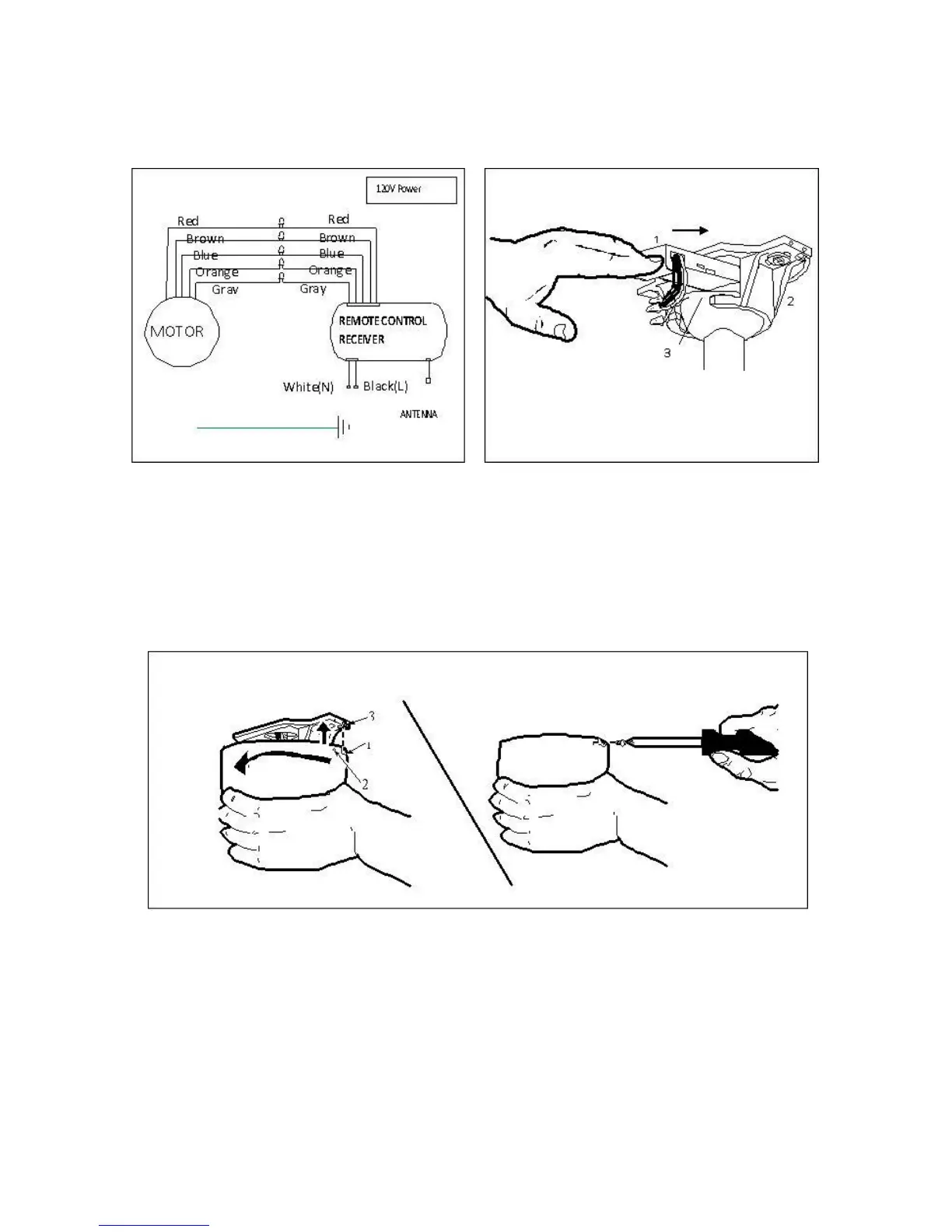

WIRING DIAGRAM

 Make wiring connection from the housing and the motor to the remote receiver as shown above.

 Connect using wire nuts (provided).

 Once the wiring step has been completed, slide the wired remote receiver (1) in between the

mounting bracket (2) and the top of the down rod ball (3) for the down rod fans.

SECURING CANOPY

 After wiring, slide the canopy up to the mounting bracket.

 The canopy has tow mating slots (1) and two mating holes (2).

 Lift the canopy allowing the two screws to slide into the mating slots.

 Rotate the canopy until both screws from the mounting bracket drop into the slot recesses.

 Tighten the screws securely.

 Install the two screws into the mating holes of the canopy and tighten to secure the canopy to the

mounting bracket.
