ATTACHING BLADES TO FAN

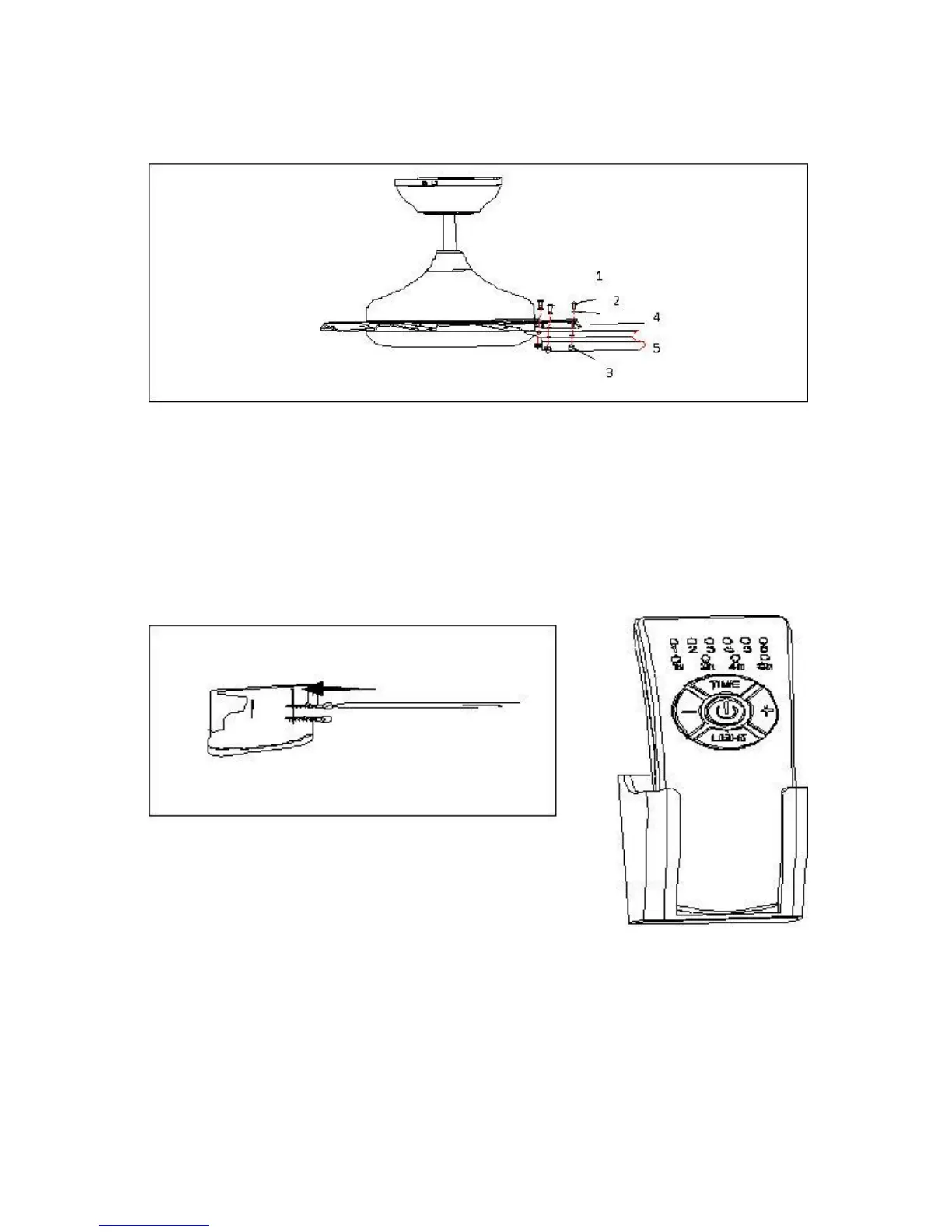

 Insert the blades (5) through the slots on the motor housing as shown.
 Use the provided screws (1), washers (2), and bolts (3) to tighten the blades to the pre-attached
blade brackets (4).
 Mount the transmitter holder onto the wall using screws provided.
 Place the transmitter into the holder.
