A. Electric Scooter Assembly

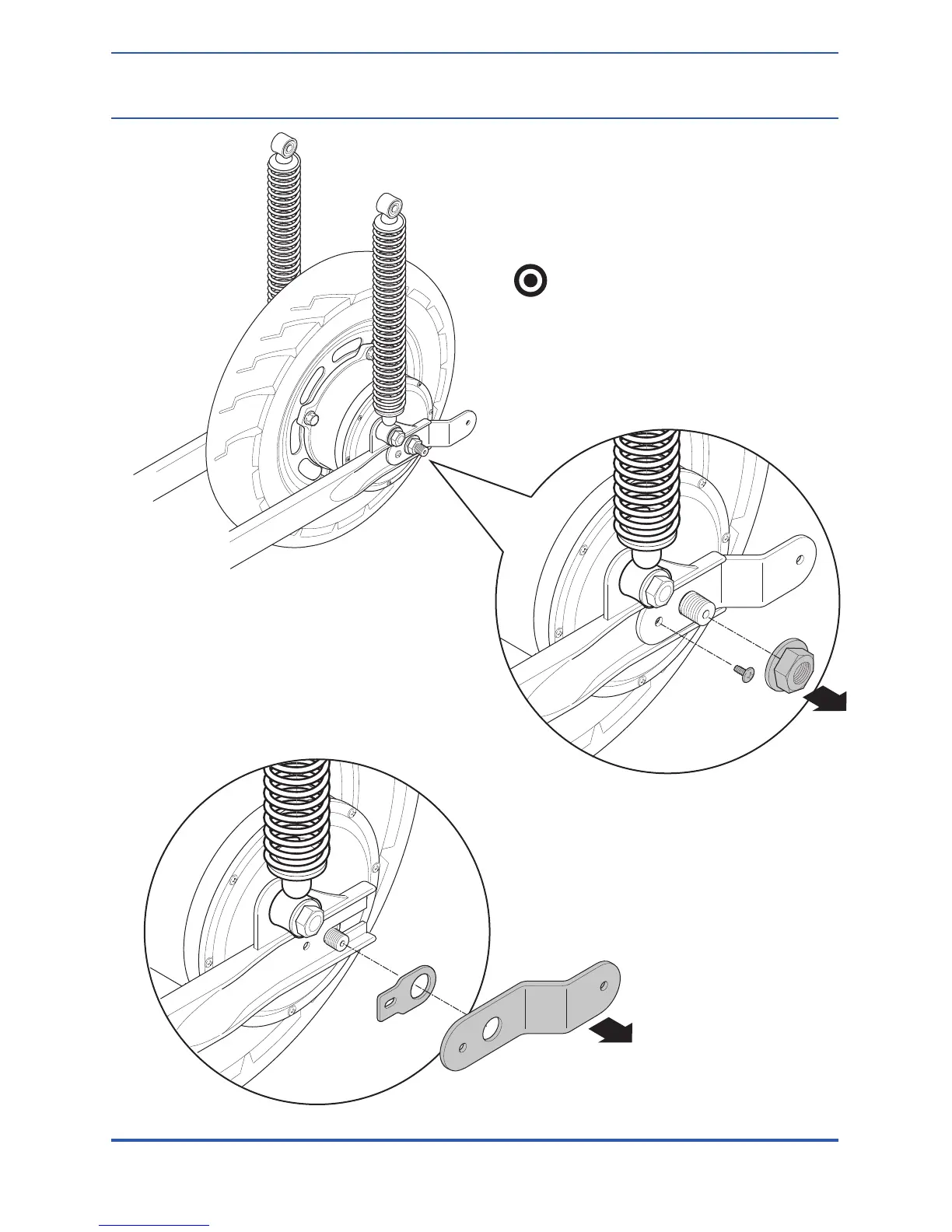

11. Assemble the wear indication board
and the brake arm.
12. Assemble the brake arm and the brake
cam.
Attention:
Point the “gullet” mark of the brake
arm to the “dot” mark of the brake
cam, and then assemble them.
13. Install and tighten the bolt of the brake
arm.
14. Install and tighten the fix bolt of the set
arm.
15. Install the return spring of the brake
arm.
16. Install the pin of the brake arm.
17. Install the adjusting nut of the brake
cable.
18. Assemble the rear wheel (refer to
13-2).
19. Adjust the clearance of the brake lever
(refer to 13-8).
