baracuda G3 - G3 Parts Diagram

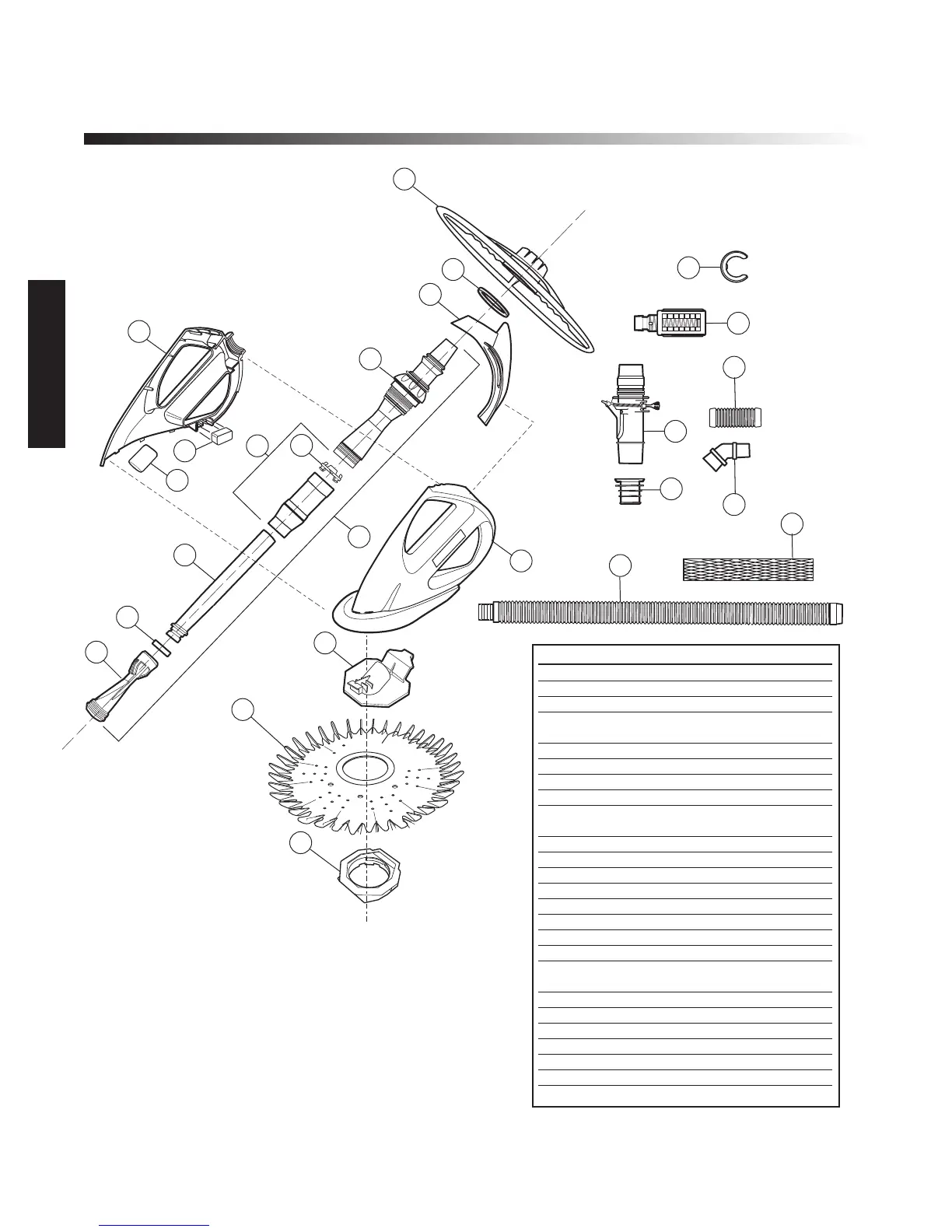

G3 Parts Diagram
3
4
14
12
6
7
8
9
22
20
19
23
11
2
15
16
17
24
1
13
21
5
10
18
25
19
0 1 2 3 4 5 6
6 5 4 3 2 1 0
10
No. Part # Description Qty.
1 W83278 Wheel Deflector (US/Mexico only) 1
2 W69545 Retaining Collar 1
3 W69526 Bumper Fin - G3 1
4 W70326 Cassette Outer Extension Pipe 1
w/ Handnut
5 W74000 Compression Ring 1
6 W70345 Assy, G3 Cass Chamber w/Comp Ring 1
7 W56525 Inner Extension Pipe 1
8 W81600 Retaining Ring 1
9 W69698 Long-Life Diaphragm (US/Mexico) 1
W81710 Diaphragm (Canada) 1
10 W69994 Cassette Assembly Complete (US/Mex) 1
11 W56124 Float 1
12 W41079 Weight 1
13 W69542 Right G3 Main Body 1
14 W69541 Left G3 Main Body 1
15 W70328 Foot Flange 1
16 W70329 Disc, 36 Finned 1
17 W70327 Foot Pad 1
18 W83247 Hose Weight (US/Mexico) 1
W83247 Hose Weight (Canada) 2
19 W70335 Flow Gauge 1
20 W60050 FlowKeeper Valve 1
21 W70263 Valve Cuff 1
22 W33160 4-1/2” Connector 1
23 W70244 45° Elbow 2
24 W33800 Hose Protector Net 1
25 W83140 Long-Life Hose Kit - 12 x 1 Meter 1
