Baracuda
®
Saltmaster
TM
Saltwater Chlorinator | Installation and Operating Instructions
6

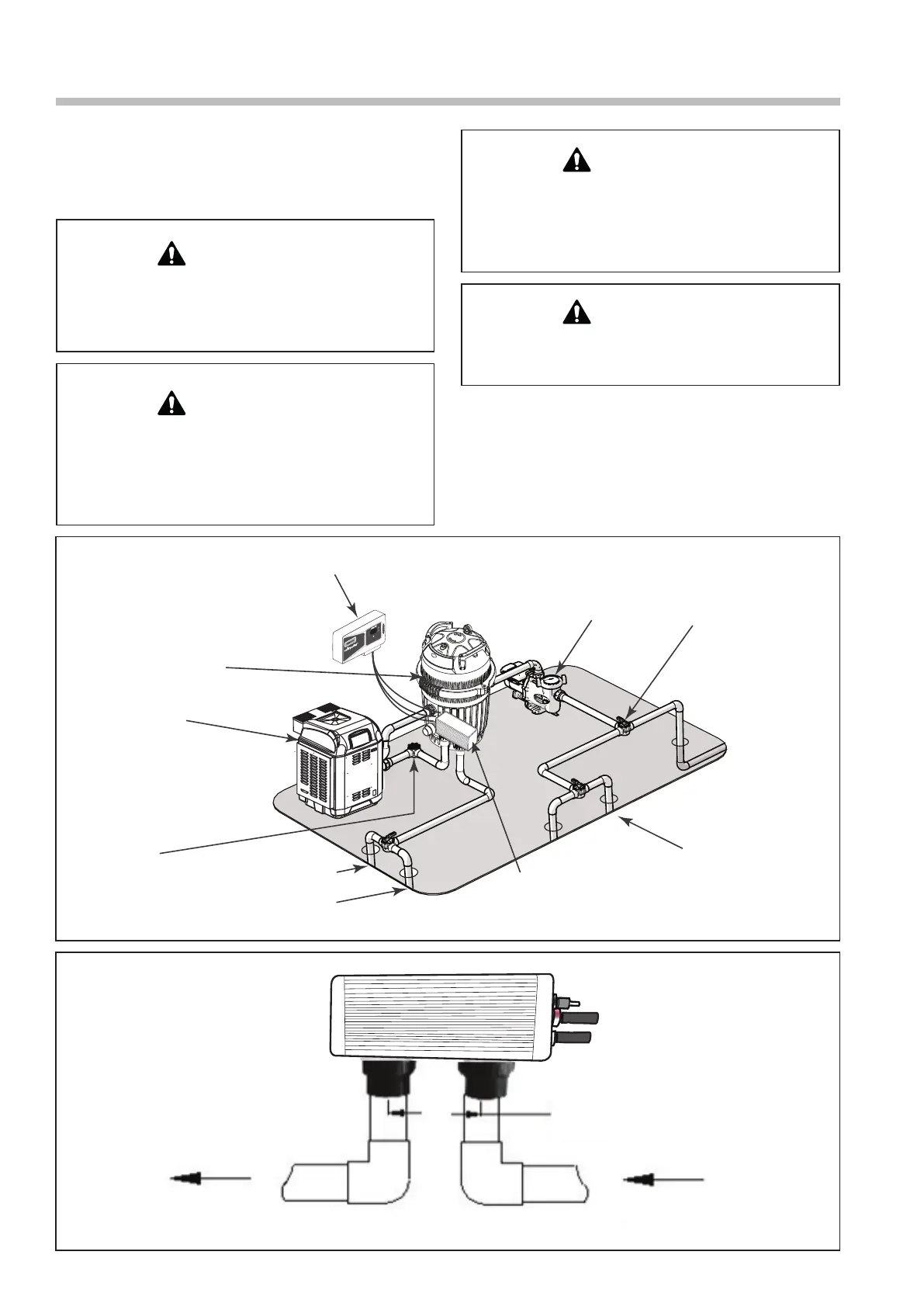

Direction of flow through the cell is critical –
unit must be plumbed with the water entering
the cell at the end closest to the terminal
connections.
WARNING
It is essential that pipe work and equipment
do not allow gases generated from the cell to
collect and build up.
WARNING
Cell must be installed horizontally with water
connections pointing downwards – this creates
a safety gas trap. Installation in any other way
may cause explosion, injury or death.
WARNING
Cell must be installed in the return pipework
to the pool. Always install after filter, gas
heater, and solar heater or heat pump
connections.
WARNING
DO NOT install isolation valves on inlet or
outlet of cell.
Once the cell is located, connect the cell cable
to the cell. All terminal posts and cell cable
connectors are colour coded, ensure the
correct colours are connected. Ensure that the
connectors are seated fi rmly and correctly.
Pool Return
Pipe Centres
108 mm
From
Filter/Pump
Heater
Filter
Pump
Pool/Spa
3-Way Valve
Spa Return
Pool Return
Check
Valve
Cell
MENU
ENTER
Saltwater Chlorinator
Saltwater Chlorinator
Controller
(always the last device on the
plumbing line prior to return
outlet)
Intake from
the Pool
