ECO 60 / 70 / 90 / 100

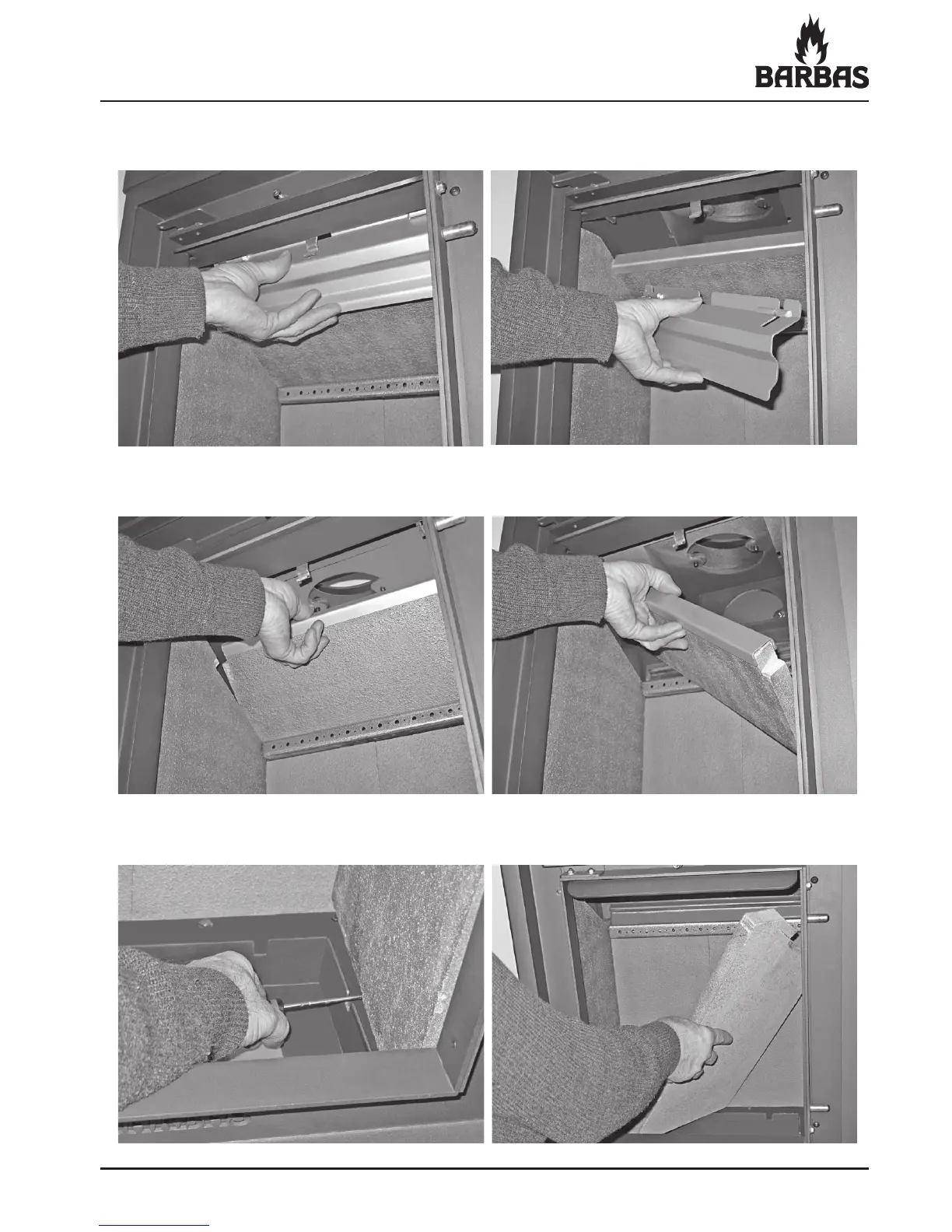

• Remove the retardant plate (brake plate) by lifting it slightly and removing it
sloping to one side.
• Remove the ue gas ap by lifting it slightly, tipping it backwards and
removing it.
• Remove the right side panel. Take care that the rear panels do not fall
forwards.
