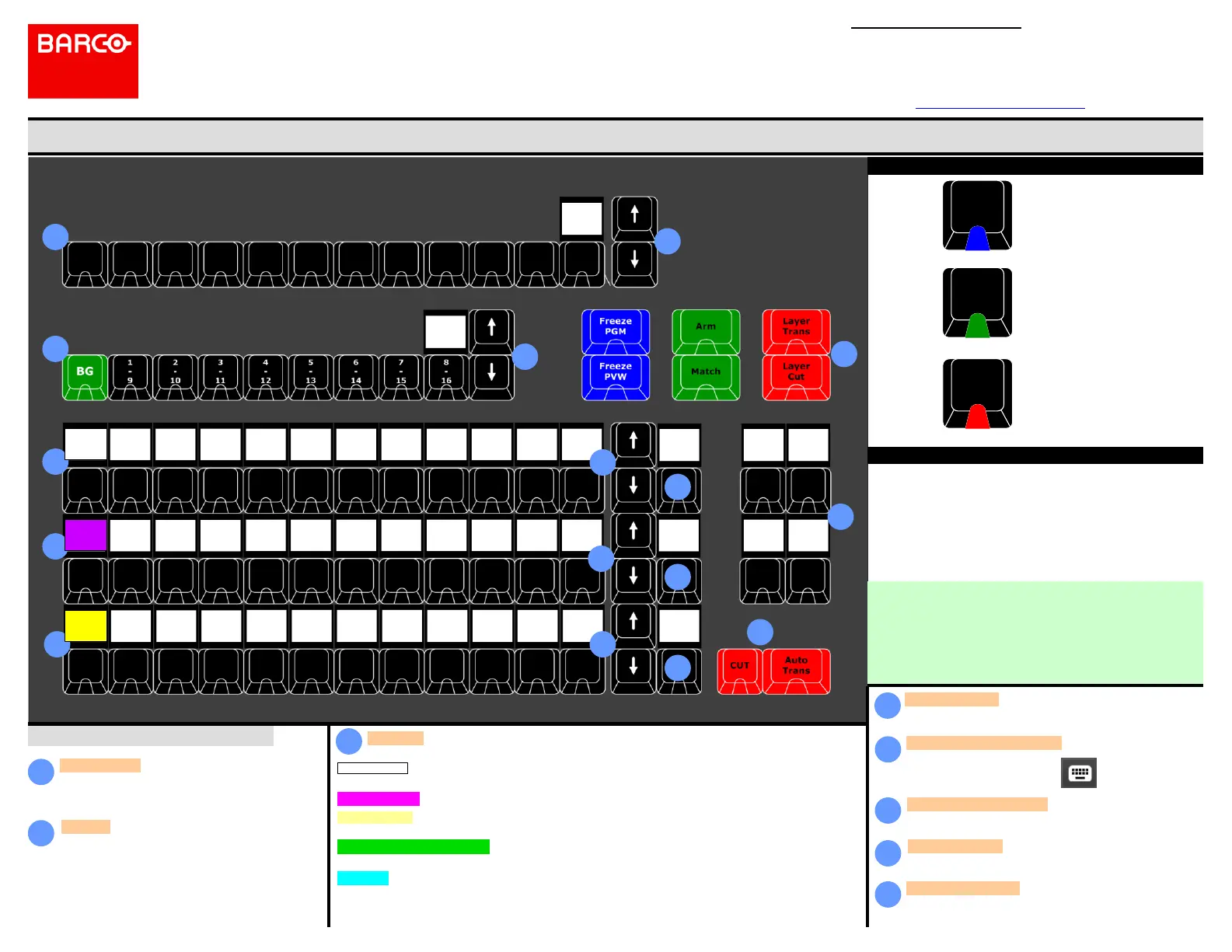

Event Master Series Controller Operation
LEDs
Operation overview
7
Layers — These buttons give direct selection of the
layers in the selected Destinations. In normal mode
the button selects and/or adds a layer in the Preview
of the selected Destination. A green LED indicates
selected.
In LIVE mode (unlocked Program) the Layer is
selected in the Program of the selected Destination.
Destinations — These buttons give direct selection
of the assigned Destination configurations. Buttons
toggle on and off the selection. A blue LED indicates
selected.
Assign — These buttons give direct selection of the assigned resources. Several resources can be
mapped onto an Assign buss for instant recall.
Arrow buttons — These buttons choose the next page of its
button bus.
Contextual Display Buttons — These provide mapping of a
variety of functions from the EMTS.
Mapping of them is done in the menu.
8
9
10
11
14
Layer Function Buttons — These buttons provide indicated
function to selected layer(s).
Cut & All Trans — These buttons executes the transition
setup in the GUI.
12
Blue indicates that the resource is
selected.
Green indicates that the resource
is selected in Preview.
Red indicates that the resource
either is on Program or is
transitioning.
Backlight
Once a resource is assigned to a button, the buss LCD
backlights change color based on the selected function.
- White for Presets
- Magenta for User Keys
- Yellow for Layer Sources
- Green for Background sources
- Cyan for CUEs
7
8
9
9
9
10
10
10
11
12
10
10
14
15
Assign Button Type — These buttons toggles thru the
available assign button type.
User
Key
Source
Preset
Barco Technical Support:
USA:
EMEA:
China:
APAC:
Support:
+1 (866) 374-7878
+32 (56) 36 8019
40088 22726
+603-78803362
www.barco.com/en/support
Event Master Series EC-210
Quick Start Guide - Setup
15
15
15
PRESETS — The Presets created in Event Master Toolset can be mapped onto an Assign buss for instant
recall.
USER KEYS — User Keys created in EMT can be mapped onto an Assign buss for instant recall.
SOURCES — The Source Files, (not the Inputs) created in EMTS can be mapped onto a bus that is
selected for SOURCES, like the bottom row in the picture.
BACKGROUND SOURCES — The Backgrounds created in EMTS can be mapped onto a bus that is
selected for Background Source; this is not shown in the picture.
CUES — Cues created in EMTS can be mapped onto a bus that is selected for Cues; this is not shown in
the picture.
Select PRESET, USER KEY, SOURCE, BACKGROUND SOURCE, or CUE via the assign buss function
button to have access to mapped presets, user keys, sources, background sources, and cues.
To Next Page
