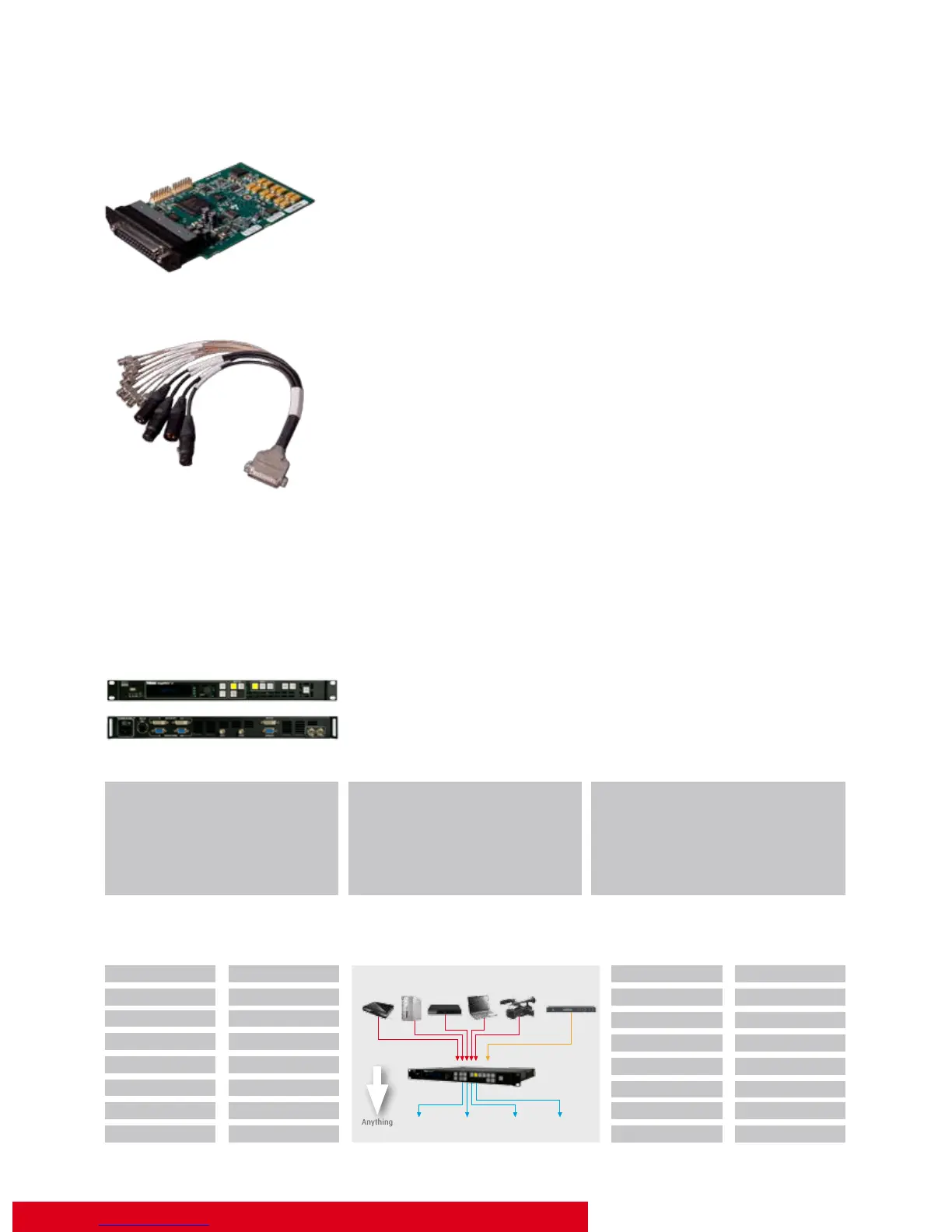

The ImagePRO-II audio model includes the audio mezzanine board offering users a wide
range of options when dealing with embedded audio. The mezzanine board includes a DB-
25 connector providing I/O interface to 4 analog and 8 AES digital channels. Users can select
to associate the input video source with its own embedded audio signal or with the analog
or AES digital signal from the DB-25 connector. The de-embedded HDMI, DisplayPort and
SDI input audio signals can also be selected to appear on the discrete analog or digital AES
outputs. A custom audio breakout cable provides access to the analog and digital AES signals
on the DB-25 connector through 4 XLR and 8 BNC connectors.
Breakout audio cable signals:
• 2 analog in(a single stereo pair) on two XLRs
• 2 analog out (a single stereo pair) on two XLRs
• 8 AES in (four stereo pairs) on four BNCs
• 8 AES out (four stereo pairs) on four BNCs
Audio specifications
• LPCM only, no compressed audio
• No. of supported channels : SDI, HDMI and DisplayPort: 8 (max) @ 48/96 KHz sampling
• Supported bit depths: HDMI & DisplayPort: 16/20/24 bits, SDI: 20/24 bits
• Analog audio (2 channels of balanced audio inputs, each on 3 pins, frequency
Response: +-0.5dB, 20Hz to 20KHz, SNR: 90dB, THD + noise: -70dB @ -1dBFS, CMR:
75dB @ 60Hz, crosstalk: -90dB @ 1KHz, input impedance: 10K)
• Digital audio- AES3 (4 pair of AES/EBU digital audio inputs, each pair on 2 pins, groups
of 2 pairs, connector: 75 ohms, unbalanced inputs, bit depth: 20/24 bits)
Audio model
How to connect your ImagePRO-II
DUAL LINK DVI SINGLE LINK DVI
4:3
1,080p
NTSC
720p
3G SDI HDTV
PAL HDSDI
UXGA
HDMI
DISPLAY PORT
1,080i
DVI
COMPOSITE
2K WUXGA
VGA
SXGA
RGBHV
WSXGA+
SXGA+ WXGA
S-VIDEO
DEEP COLOR
16:9
WQXGA
XGA
COMPONENT
16:10
QXGA
DVI HDMI
HDMI out
Analog
Analog out
DisplayPort
Anything
IN
Anything
OUT
DVI/Display-
Port out
Genlock
House sync
3G-SDI
3G-SDI out
ImagePRO-II Jr
The ImagePRO-II Jr brings the high-performance scaling of the ImagePRO-II in an affordable
package. By providing a simplified input interface structure this cost-effective model is per-
fect for general applications.
INPUTS
• Single link DVI-I with loop out
• Universal analog with loop out
• 3G SDI (BarcoLink compatible)
• Genlock with loop out
OUTPUTS
• DVI-D
• Universal analog
• 3G SDI (BarcoLink compatible)
RESOLUTION
• Maximum input 2,048 x 1,200 @60Hz
• Maximum output 2,048 x 1,200 @60Hz
To Next Page
