Bardiani BBZP User Manual

Instruction, Use and Maintenance Manual
EN-IST-BBZP-0418

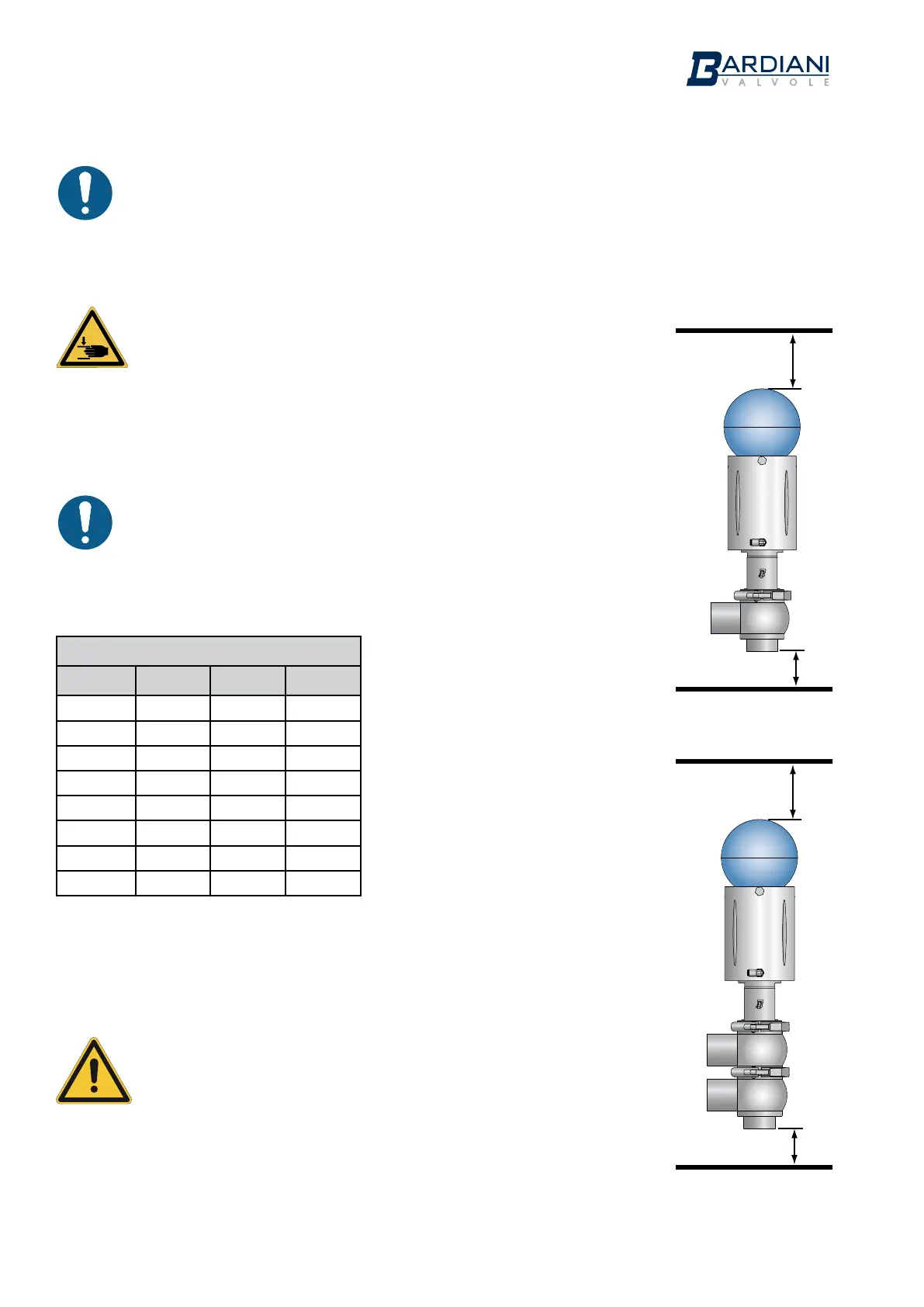

5. WELDING THE VALVE BODY ONTO PIPING:
Remove the body from the rest of the valve before proceeding with
welding operations. Please refer to the following pages in this manual.
CAUTION!
Hand crushing hazard. During operation there is a risk of crushing
inside the valve body in the area between the actuator and the valve
body.
6. MINIMUM MAINTENANCE CLEARANCES:
Make sure there is enough room around the valve for it to be
disassembled (with the control unit installed).
BBZP-BBZM - BBYP - BBZT - BBZR
DN A (mm) B (mm) C (mm)
10-25 240 240 240
32-40 265 255 255
50 280 270 270
65 290 285 285
80 300 300 300
100 325 315 315
125 410 400 400
150 440 425 425
CAUTION!
Bardiani Valvole S.p.A. declines all liability for any damage to things
and/or injuries to persons caused by any failure to correctly follow the
installation procedures.
14
A
B
C
C
