MODEL SR124
OIL FILLING

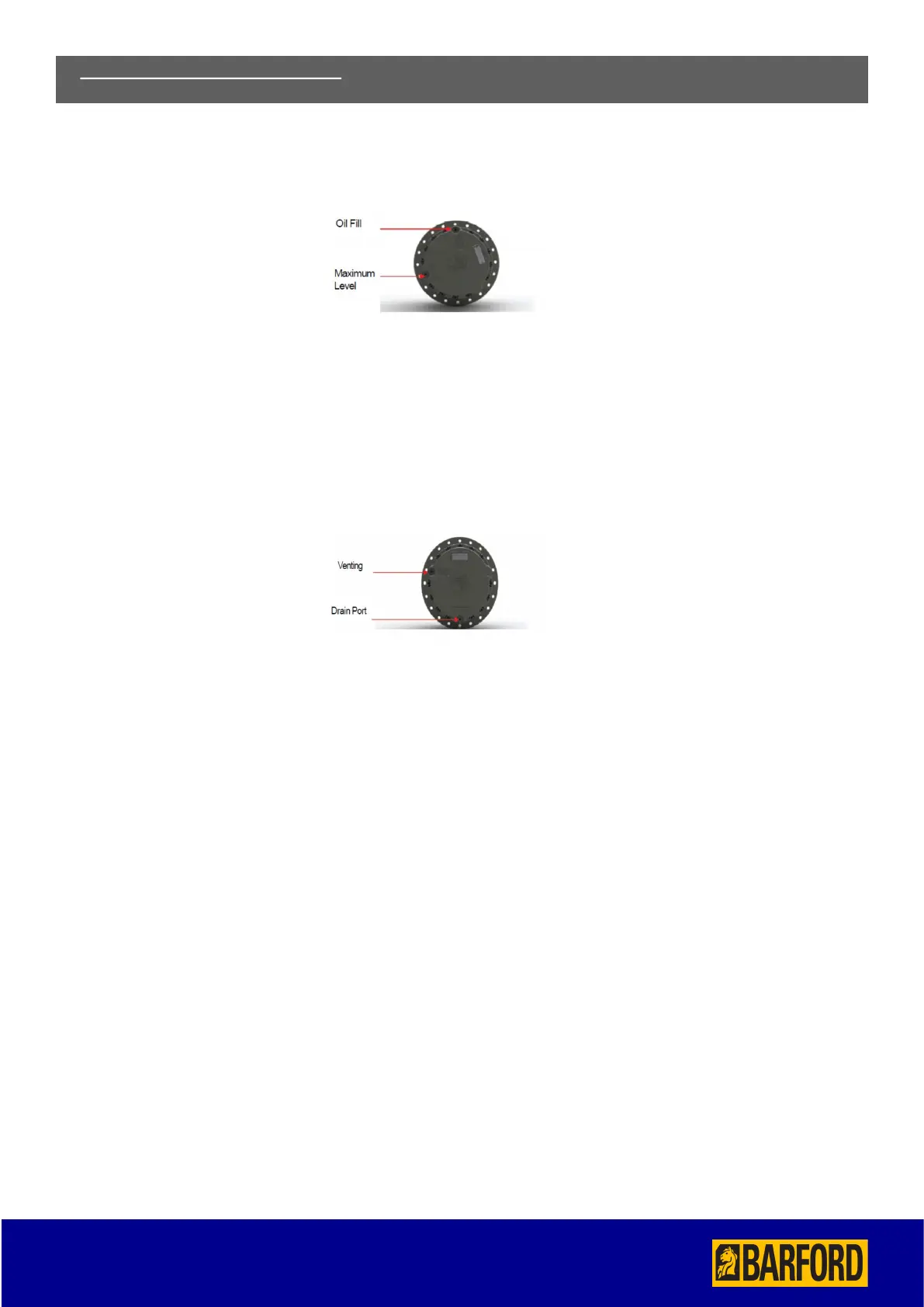

• To fill the oil, track the machine until the gearbox casing is level with a plug positioned at 12 o’clock (see diagram).
• Unscrew the two plugs and fill from the upper hole until oil reaches the level of the lower hole.
OIL DRAINING
• To drain the oil, track the machine until the plug is at 6 o’clock position (see diagram).
• Unscrew both plugs and allow all oil to empty into a container.
• Do not fill oil in the track drive without checking the oil level inside it.
• Track systems are supplied with a quantity of oil in the track drive.
• The gearbox life will shorten if oil becomes dirty.
• Only use new clean oil in clean containers.
Track gearbox and lubrication.
Gear oil should conform to the following specifications:
MIL-L-2105 or API GL5 Grade 80W/90
Examples of oil to these specifications are:
Texaco Geartex EP-B 80W/90
Century Oils BOA 80W/90
All leading lubricating oil suppliers offer equivalents.
9) MAINTENANCE CONTINUED
To Next Page
