Barford SR124 - Positioning for Operation; Transition to Working Position Procedure

20
MODEL SR124
20
Observe all safety warnings.

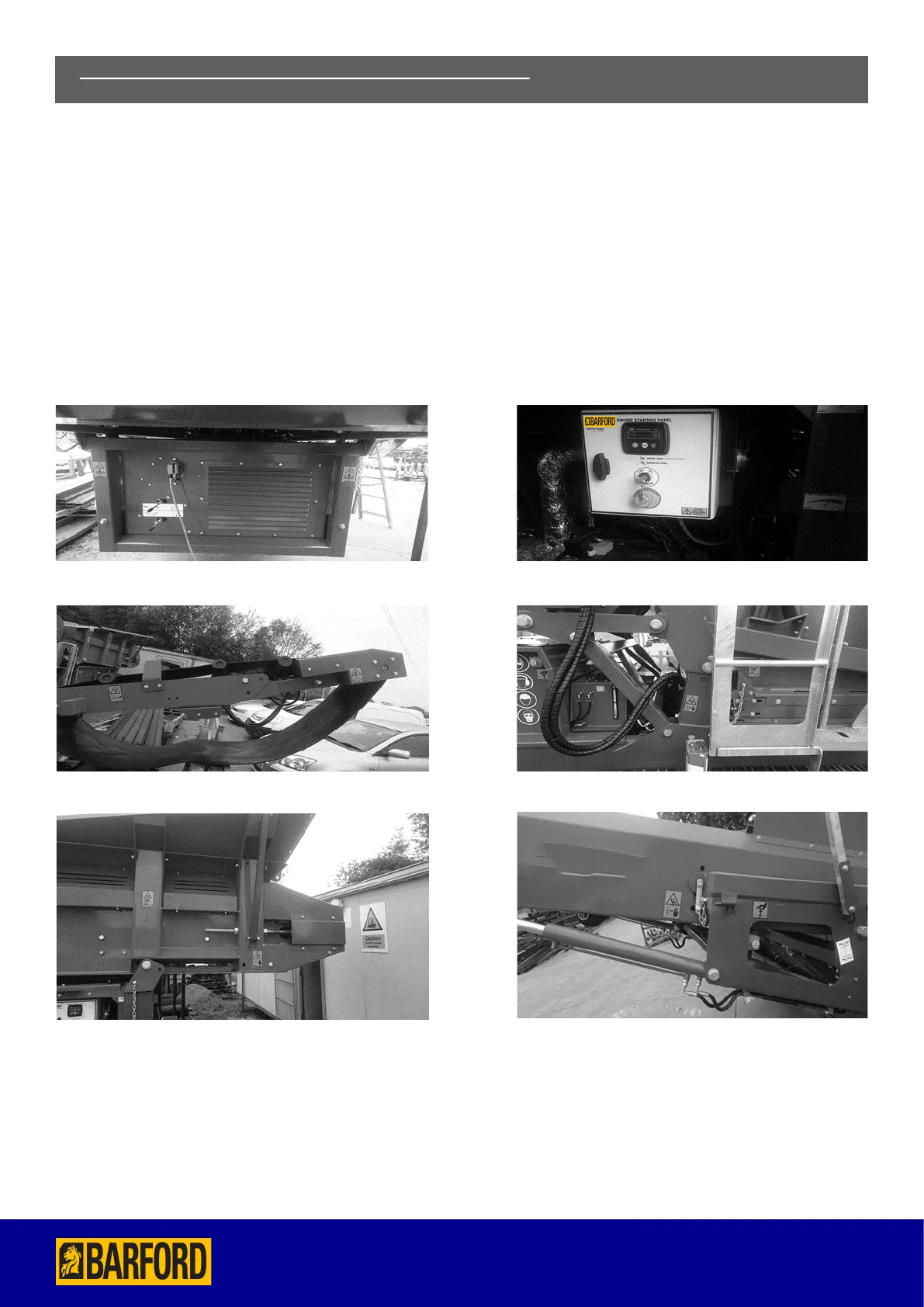

To leave the conveyor ready for operation it first has to be changed from transit mode.
To do this the following steps must be followed;
1) Remove Track / trailer securing chains.
2) Connect Dog lead track control (or Activate Optional Radio Remote).
3) Start Engine and keep on low idle. (See section 3D).
4) Set hydraulic control levers to send power to tracks.
5) Unload machine from Trailer unit.
6) Unfold Side conveyors slowly moving each section a little at a time.
7) Extend side conveyor top telescopic section and pin into position.
8) Raise feeder plus Screen sub frame and pin into position.
9) Raise Oversize conveyor and pin into position.
10) A level operating surface must be provided to meet this machine’s running requirements. The machine can then be
Tracked into its required location.
TO RETURN BACK TO TRANSIT MODE, DO STEPS IN REVERSE ORDER
7) CONVEYOR IN TRANSIT TO WORKING POSITION
