MODEL SR124

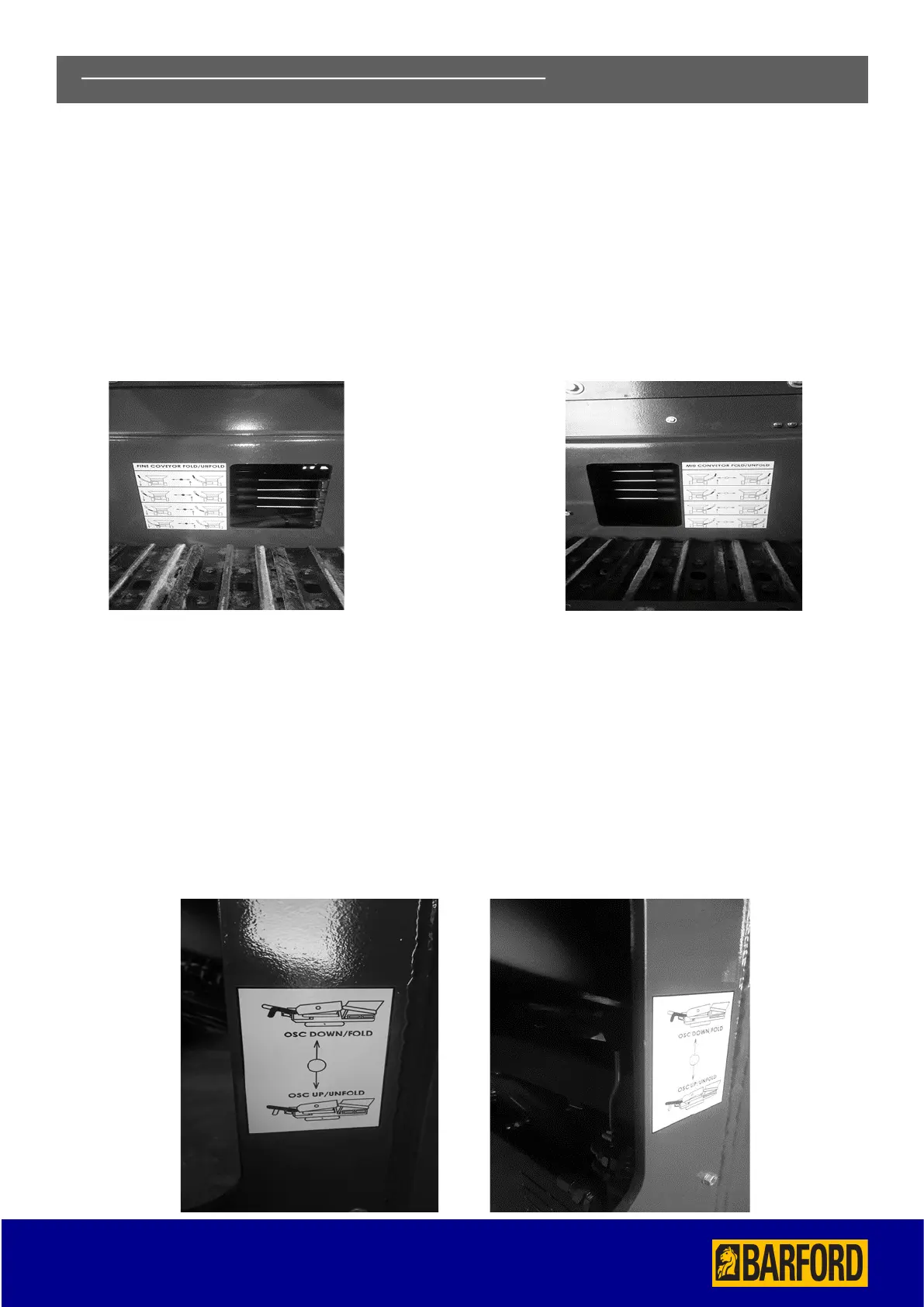

CONTROL VALVES LOCATED ON A BOTH SIDES OF CHASSIS
FINE CONVEYOR
The two four lever valves has three main functions;
1. Unfold. This allows to fold/telescopic section slide in
function.
2. Neutral Position.
3. Fold (toward operator) This allows to fold/telescopic
section slide out function.
MID CONVEYOR
The two four lever valves has three main functions;
1. Unfold. This allows to fold/telescopic section slide in
function.
2. Neutral Position.
3. Fold (toward operator) This allows to fold/telescopic
section slide out function.
CONTROL VALVE LOCATED ON A LL SIDES OF CHASSIS
OVERSIZE CONVEYOR
The single lever valve has three main functions;
1. DOWN/FOLD This allows to down/fold
Conveyor function.
2.Neutral Position.
3.UP/UNFOLD (toward operator) This allows to
up/unfold conveyor function.
6) POWER UNIT AND CONTROL VALVES CONTINUED
