MODEL SR124

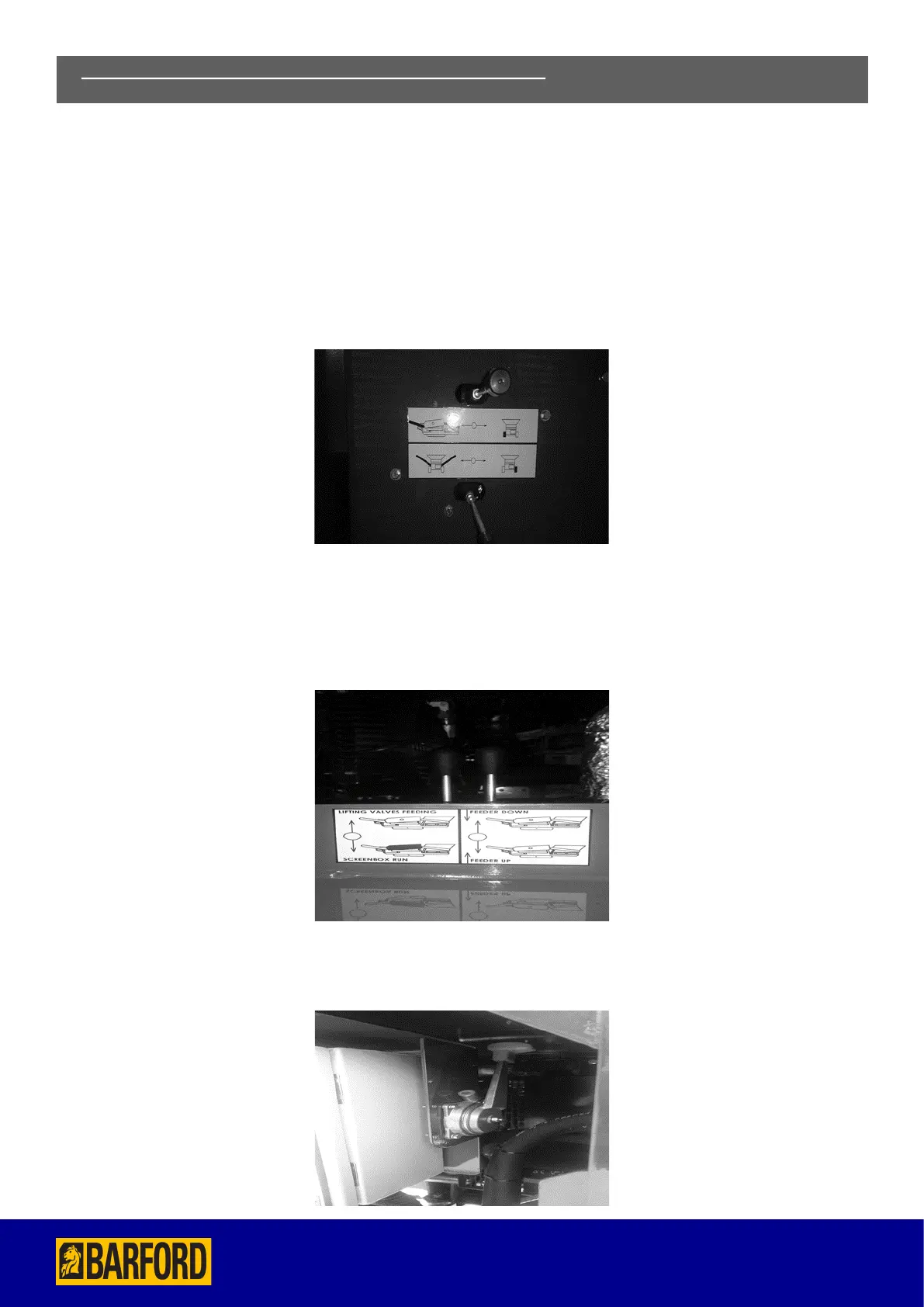

CONTROL VALVES AND HAND THROTTLE

The control valves are contained in the power unit.

The two single lever valves has three main functions;

1. Running the Conveyors.

2. Neutral Position

3. Track Position (right hand of operator) This allows the screener to be tracked.

Double lever valve has three main functions;

1. This position activates control valves for side conveyors and oversize conveyor/lower feeder conveyor.

2. Neutral Position

3. Run the screen unit/raise feeder conveyor (towards operator)

The hand throttle has two functions, to increase and decrease engine speed. To increase power, pull the lever towards the opera-

tor. To decrease push the lever away from the operator.

6) POWER UNIT AND CONTROL VALVES CONTINUED
