Barko 295B - MD3 Diagnostic and Warning Screens; MD3 Diagnostic Screen Functions

40-14

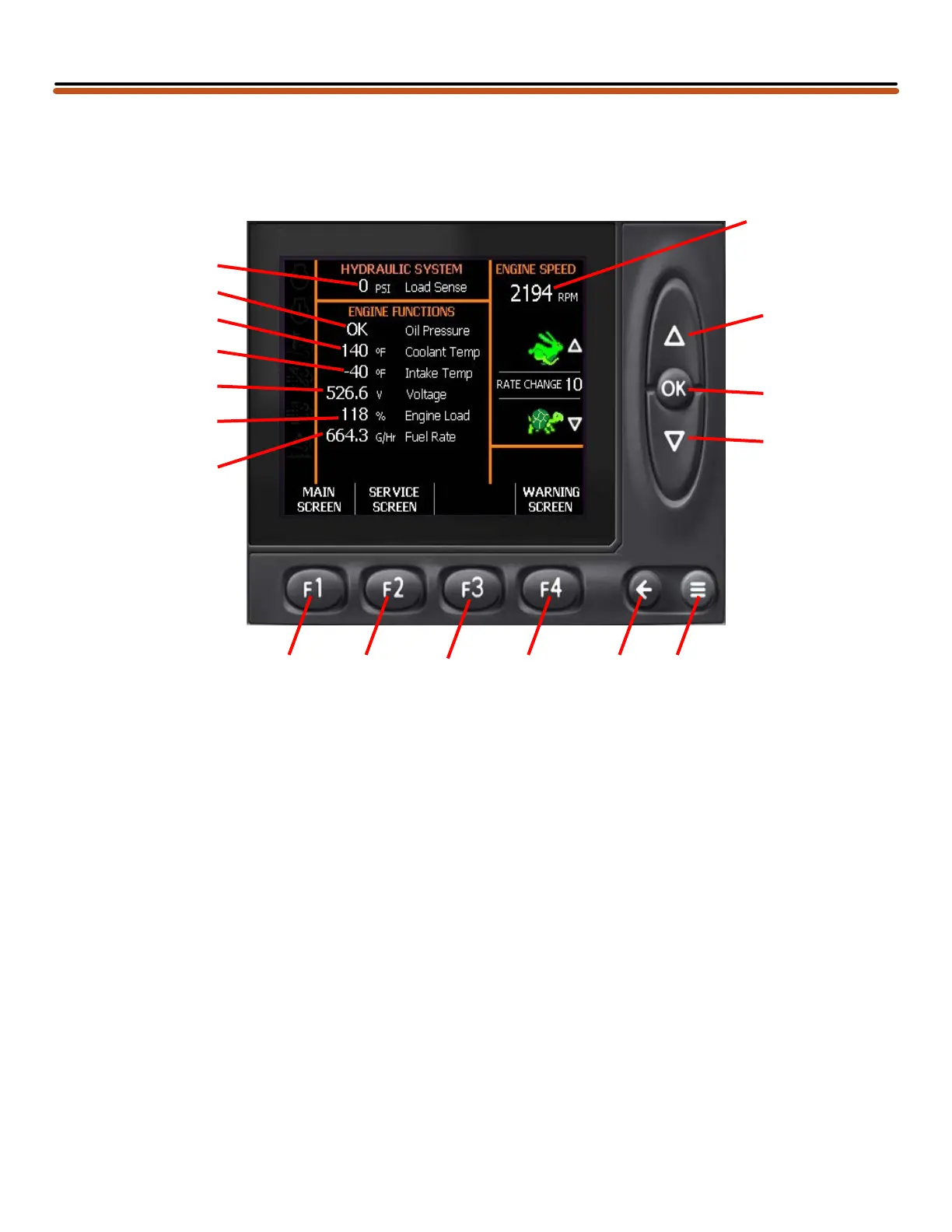

Md3 DIAGNOSTIC SCREEN
8
1. Load Sense - Displays load sense pressure
in PSI at the pump.
2. Oil Pressure - Displays engine oil pressure
is okay or low.
3. Engine Coolant Temperature - Displays
engine temperature in °F.
4. Intake Manifold Temp - Displays engine
intake manifold temperature in °F.
5. Voltage - Displays engine voltage.
6. Engine Load- Displays current engine load
in %.
7. Fuel Rate - Displays amount of fuel being
used in gallons per hour.
8. Engine Speed - Displays engine speed in
RPM.
The Diagnostic Screen is used to get detailed information on engine and hydraulic systems.
9
10
9
12 16
15
1411
1
4
7
5
6
2
3
9. Throttle Increase Button - Used to increase or
decrease throttle setting. Increases the
amount of throttle by 1% or 10% either up or
down.
10. OK (enter) - Used to change the amount the
throttle inceases with one push of the up or
down arrows.
11. F1 - Switches to the Main screen.
12. F2 - Switches to Service screen.
13. F3 - No function.
14. F4 - Switches to Warning screen.
15. Return - Returns display to Main Screen.
16. Utility Button - This button will take you to the
utility menu from any screen.
13
