Barko 295B - Cab and Stabilizer Switch Controls

40-17
Md3 DIAGNOSTIC SCREEN

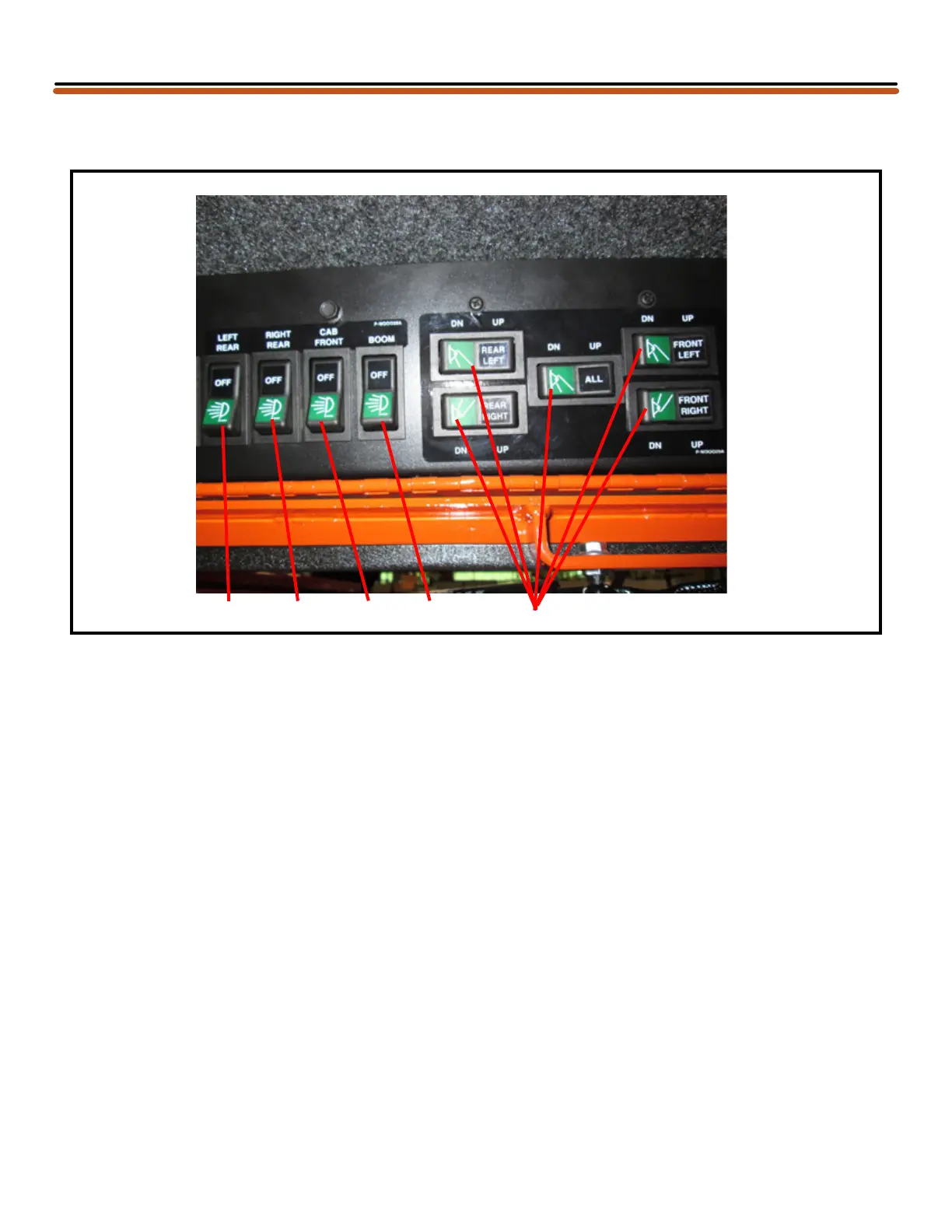

1 Light Switches
Operates lights on cab and boom. Push switch
up to turn lights on. Push switch down to turn
lights off.
Switches for:
1-1 Left Rear Cab Light
1-2 Right Rear Cab Light
1-3 Front Cab Lights
1-4 Boom Lights
2 Stabilizer Leg Switches
Operates stabilizer legs. Push switches to left
to lower stabilizers. Push switches to right to
raise stabilizers. Use center switch to operate
all 4 stabilizers at the same time.
Switches for:
- Right Front Stabilizer
- Left Front Stabilizer
- Right Rear Stabilizer
- Left Rear Stabilizer
- All 4 Stabilizers
2
1-1 1-2 1-3
1-4
08/20/2018
Updated
OPERATOR’S
