43-6
®
SWING DRIVE AY- ML
SWING DRIVE- RH
SWING DRIVE- RH
SWING DRIVE- 295B ONLY
SWING DRIVE- 495B & 595B ONLY
SWING DRIVE- LH
SWING DRIVE- LH
Fig-1
Fig-2
Fig-3

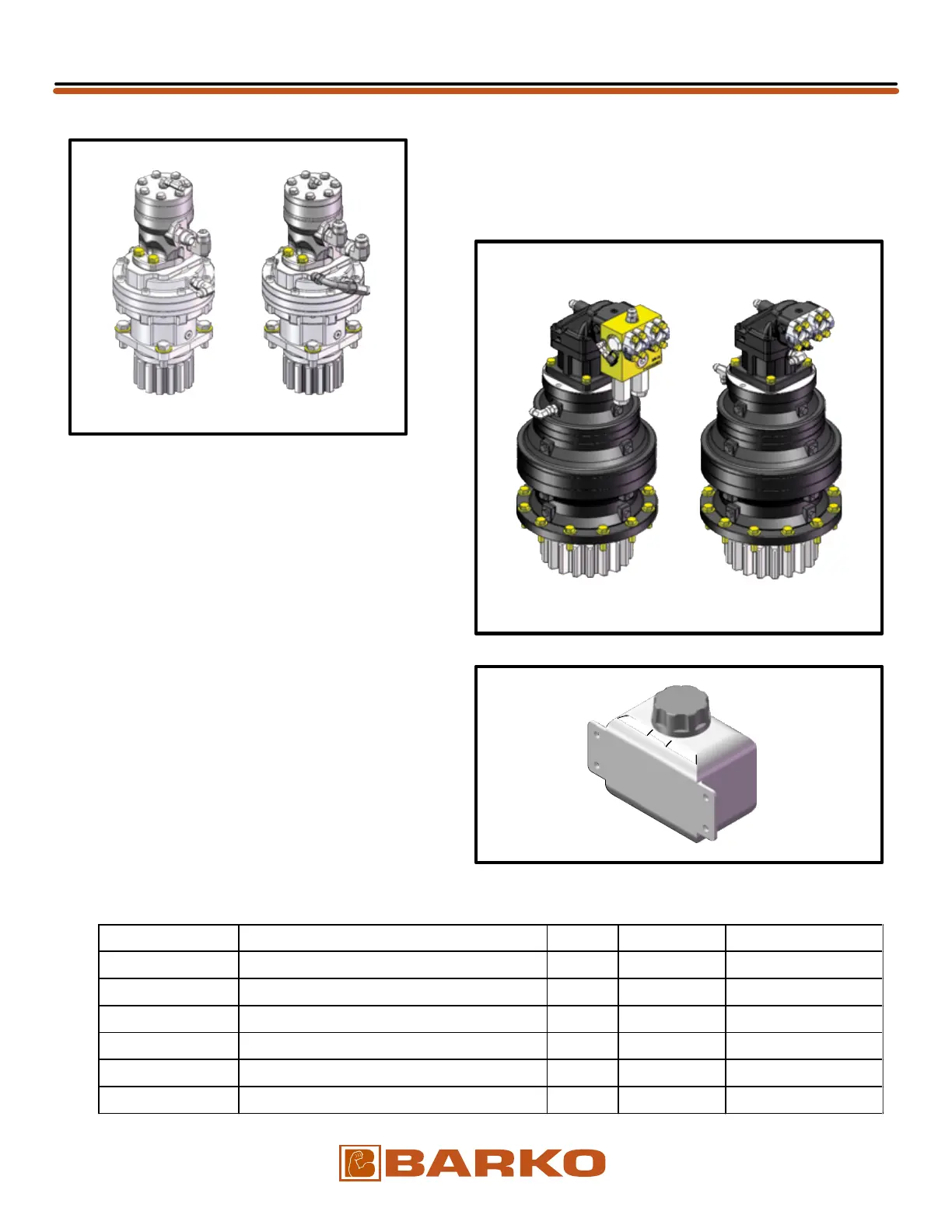

BARKO ML SWING DRIVE ASSEMBLIES
BARKO ML are equipped with two Swing Drive
Assemblies mounted on opposite sides of the platform
head. The Swing Drive Assembly is responsible for providing
the rotation of the machine turntable.
Ÿ HYDRAULIC MOTOR
Ÿ GEARBOX (w/ or w/o SWING BRAKE)
The Swing Drive Ay is comprised of a...
Ÿ CROSSOVER RELIEF VALVE (On 495B &
595B MODELS ONLY)
Ÿ see Fig-2
ML SWING DRIVE MOUNTING, & TORQUE SPECIFICATIONS
GEAR OIL RESERVOIR (Fig-3)
This machine is equipped with a gear case oil
reservoir which supplies oil to both swing
GEARBOXES. See PLATFORM page for reservoir
location.
Ÿ This reservoir should be checked daily.
Maintain gear oil at a safe level. See
GEARBOX page for recommenced oil type.
Model Description Qty Torque Thread treatment
295B 5/8" Bolt (Gearbox to Platform) 4 186 ft-lbs Loctite #243
1/2" Bolt (Hydraulic Motor to Gearbox) 8 80 ft-lbs
495B 1/2" Bolt (Gearbox to Platform) 15 80 ft-lbs Loctite #243
1/2" Bolt (Hydraulic Motor to Gearbox) 15 80 ft-lbs
595B 1/2" Bolt (Gearbox to Platform) 12 115 ft-lbs Loctite #243
1/2" Bolt (Hydraulic Motor to Gearbox) 12 80 ft-lbs
SWING DRIVE
08/20/2018
Updated
