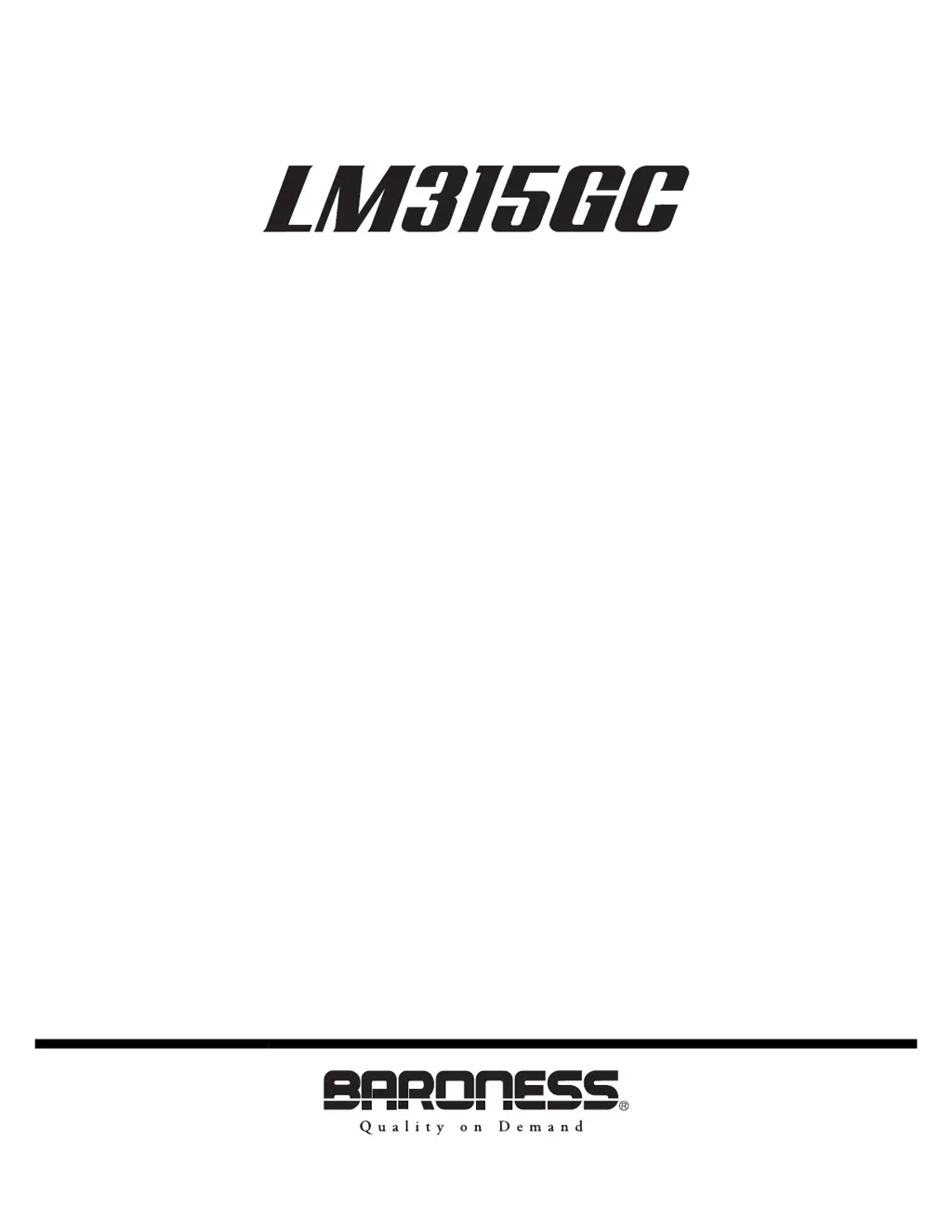

Baroness LM315GC - Service Manual

Other manuals for Baroness LM315GC

Owner's Operating Manual115 pages

Assembly And Installation Manual19 pages

Technical Information5 pages

Technical Leaflet4 pages

Questions and Answers

A
Amanda JamesNov 21, 2025
Why won't my Baroness LM315GC engine start (starter motor not turning)?
- C
  Christine AguirreNov 21, 2025
  If your Baroness Lawn Mower engine doesn't start and the starter motor isn't turning, it could be due to several reasons: * The interlock system might be activated because you're not sitting on the seat, the parking brake isn't applied, the traveling pedal isn't in neutral, or the reel rotation switch isn't in the OFF position. * There might be a faulty component in the interlock system, such as the seat switch, parking brake switch, proximity sensor (reel rotation switch), proximity switch, or interlock relay unit. * A 5A/15A fuse or the fusible link could be faulty. * The battery capacity might be insufficient, or the terminals could be loose. * The ignition key switch or starter relay might be faulty. * The starter motor itself could be faulty, or there might be overheatin...
W
williamszacharyAug 25, 2025
Why is my Baroness LM315GC battery not charging?
- M
  mackcharlesAug 26, 2025
  If your Baroness Lawn Mower is not charging, check for these possible causes: * A loose battery cable. * A corroded battery terminal. * Insufficient battery electrolyte. * A faulty battery. * Insufficient fan belt tension. * A disconnected coupler in the charging circuit wire or a faulty wire. Inspect and repair the wire. * A faulty alternator.
A
Angela MaynardAug 26, 2025
Why does my Baroness LM315GC Lawn Mower engine start then immediately stop?
- R
  robertedwardsAug 27, 2025
  If your Baroness Lawn Mower starts and then immediately stops, it could be due to: * The interlock system being activated (for example, leaving the seat without applying the parking brake). * A clogged air cleaner element. * Low fuel levels. * Air in the fuel system. * A clogged fuel filter. * A malfunction of the engine stop solenoid system.
R
Rebecca GregoryAug 27, 2025
Why does my Baroness Lawn Mower have poor traveling power?
- C
  christopher14Aug 27, 2025
  If your Baroness Lawn Mower has poor traveling power, consider the following: * The engine rpm might be too slow, or the engine isn't running smoothly. * The parking brake might be applied. * The throttle wire might need adjustment. * The hydraulic oil level could be low, the oil filter might be blocked, or the hydraulic oil is too cool. * There might be dirt in the hydraulic oil (contamination, water, or air). * The hydraulic oil viscosity could be incorrect. * The pressure of the piston pump might not be high enough. * The piston pump or the wheel motor might be malfunctioning.
K
kingritaAug 29, 2025
Why won't the oil pressure lamp turn off on my Baroness LM315GC Lawn Mower?
- A
  Amanda Brewer MDAug 29, 2025
  If the oil pressure lamp on your Baroness Lawn Mower does not turn off, the possible causes are: * Insufficient amount of engine oil. * Faulty engine oil switch. * Faulty engine oil pump.
T
Teresa NewmanSep 16, 2025
Why does the cutting height adjustment get out of order on my Baroness LM315GC?
- K
  Kelsey WallsSep 16, 2025
  If the cutting height adjustment on your Baroness Lawn Mower gets out of order, it could be due to: * Malfunction of the roller bearing. * Looseness of the cutting height adjustment nuts. * Abrasion of the roller shaft.
T
Tracy WilsonSep 14, 2025
Why do the mower units on my Baroness LM315GC lower by themselves?
- L
  Laurie ThorntonSep 14, 2025
  If the mower units on your Baroness Lawn Mower get lowered by themselves, it could be due to: * Malfunction of the valve module. * Malfunction of the up/down cylinder.
A
Amy PrattSep 15, 2025
Why doesn't the 2WD/3WD changeover work on my Baroness LM315GC?
- A
  Andrea VelezSep 15, 2025
  If the 2WD/3WD changeover on your Baroness Lawn Mower does not work, it could be due to: * Malfunction of the 2WD/3WD changeover switch. * Malfunction of the 2WD/3WD changeover valve.
K
kimarthurSep 6, 2025
Why won't my Baroness Lawn Mower travel?
- G
  Gregory SheltonSep 6, 2025
  If your Baroness Lawn Mower doesn't travel (and the previously mentioned causes have been ruled out), it could be due to: * There is no charge pressure of the piston pump. * Malfunction of the joint part between the engine and pump. Inspect, repair, or replace the joint part.
S
smithalexisSep 4, 2025
What causes the reel cutter to not rotate on my Baroness Lawn Mower?
- B
  Barbara HudsonSep 4, 2025
  If the reel cutter on your Baroness Lawn Mower does not rotate, possible causes include: * Malfunction of the electromagnetic clutch. * Malfunction of the flexible wire. * Malfunction of the proximity sensor. * Malfunction of the mower unit control relay unit. * The reel reverse lever is neutral; turn the reel reverse lever to normal or reverse. * Malfunction of the transmission. * Malfunction inside the reel cutter gear case.

Summary

Introduction

Safety

Safe Operating Practices

Guidelines for safe operation and handling of the equipment.

Maintenance and storage

Procedures for parking, storing, and maintaining the machine.

Safety Signs and Instruction Signs

Information about safety decals and instruction decals on the machine.

Disposal

Maintenance standards and maintenance

Unit conversion

Tables for converting between inch and millimeter units.

Maintenance standards

List of maintenance specifications for the LM315GC.

Tightening torques

Specifications for tightening bolts and nuts for various components.

Jacking up the machine

Instructions and points for safely jacking up the machine.

Greasing

Information on greasing points and procedures for the machine.

US unit-SI unit conversion table

List of Maintenance Specifications

Standard tightening torques

Fittings with parallel threads (O-ring seal type)

Principal tightening torques

Jacking up the machine

Jack-up Points

Identification of specific points on the machine for safe jacking.

Greasing

Greasing Points

A list and diagram of all greasing points on the machine.

Hydraulic system

Maintenance

Primary checking and maintenance operations for the hydraulic system.

Specifications

Technical specifications of the hydraulic system components.

Hydraulic System Layout

Diagram illustrating the layout of the hydraulic system components.

Flow of Hydraulic Oil

Schematics showing the flow of hydraulic oil during different operations.

General instructions

Important general instructions for working with the hydraulic system.

Towing

Guidelines and precautions for towing the machine.

Neutral

Information on ensuring the machine is in neutral position.

Depressurization

Procedures for depressurizing the hydraulic system before maintenance.

Hydraulic circuit failure

Information on identifying and addressing hydraulic circuit failures.

Traveling circuit

Schematic and description of the hydraulic traveling circuit.

Raise;lower circuit

Schematic and description of the hydraulic raise/lower circuit.

Steering circuit

Schematic and description of the hydraulic steering circuit.

Special Tool

List and description of special tools required for hydraulic system maintenance.

Measurement

Procedures for measuring hydraulic system pressures and performance.

Adjustment

Instructions for adjusting hydraulic system components.

General inspection and repair

General procedures for inspecting and repairing the hydraulic system.

Electrical system

Maintenance

Overview of inspection and maintenance procedures for the electrical system.

Specifications

Adjusted values for various electrical switches and sensors.

Electrical Part Layout

Diagrams showing the location of electrical components on the machine.

Special Tool

List of special tools required for electrical system maintenance.

Measurement

Procedures for measuring electrical system parameters and component function.

Adjustment

Detailed steps for adjusting electrical switches, sensors, and clutches.

Electrical components

Descriptions and inspection procedures for individual electrical components.

General inspection and repair

General procedures for inspecting and repairing electrical system parts, especially the battery.

Main body

Maintenance

Overview of inspection and maintenance procedures for the main body.

Specifications

Details on tire pneumatic pressure and adjusted values.

Special Tool

List of special tools required for main body maintenance.

Adjustment

Procedures for adjusting the brake system and engine components.

Brake

Instructions for adjusting the parking brake wire.

Adjusting the Neutral Position of the Piston Pump

Steps to adjust the neutral position of the piston pump.

Throttle wire

Instructions for adjusting the throttle wire.

Operating Machine and Mower Units

Maintenance

Overview of inspection and maintenance for mower units.

Specifications

Details on grease types and adjusted values for mower units.

Special Tool

List of special tools for mower unit maintenance.

Usage

Instructions on using bearing drivers and oil seal installers.

Adjustment

Procedures for adjusting blade engagement, collimating, and cutting height.

Removal and installation of each section

Detailed steps for removing and installing various mower unit sections.

Inspection and repair of each section

Procedures for inspecting and repairing reel cutter, housing, and other sections.

Troubleshooting

Relating to the Engine

Troubleshooting issues related to the engine not starting or stopping unexpectedly.

Relating to Traveling

Troubleshooting problems with the machine's traveling power and movement.

Relating to Steering

Diagnosing and resolving issues with the power steering system.

Relating to Operating Machine and Mower Unit

Troubleshooting problems with mower unit operation, reel rotation, and clipping collection.

Reference

Specifications

Detailed technical specifications of the LM315GC mower.

Maintenance Schedule

Scheduled maintenance tasks and intervals for the LM315GC.

Hydraulic circuit diagram

Schematics of the hydraulic circuits for 2WD and 3WD operation.

Electrical Circuit

Diagrams illustrating the electrical circuits for starting, stopping, and mower unit control.

Electric wiring diagram

Detailed wiring diagrams showing main wire and work lamp connections.

List of Consumables

List of consumable parts required for maintenance and replacement.

Baroness LM315GC Specifications

General

Brand	Baroness
Model	LM315GC
Category	Lawn Mower
Language	English
