6 7
1
2
4
56
7
3
8
A
B
D
F
C
G
E
H
How To Use The Deluxe Tripod
1. To adjust height and angle of legs release upper and lower leg locks (2 and 3).
Extend legs to desired height and lock upper and lower leg locks.
2. To adjust tripod head height, loosen center column height knob (E). Flip up
center column crank (F), and slowly crank to raise or lower tripod head. Flip
crank lever to lock in place (E).
3. Make sure locks/knobs are locked/tight (2,3,and E), and the tripod is on a
stable surface.
4. To release mounting platform (C) gently pull out the quick release lever (B) to
it’s full reach. Hold mounting platform and gently pull towards you and up.
Note: Mounting maximum weight is 8.82 lbs
5. Attach mounting platform to the bottom of device and tighten the mounting
key under mounting platform. Pull on the quick release lever (B) to it’s full
reach. Carefully place entire assembly back into place on head by pushing
down and away from you.
6. With mounted item securely in place, point the objective lens at the object, look
through the eyepiece and slowly move tilt control handle (A) to desired
position. Tighten the head knob (G) to secure your viewing angle.
7. The tripod leveling bubble is used to level the tripod (D). The head leveling
bubble (H) levels the head allowing for optimum viewing and picture taking.
The legs and head of the tripod are both level when the bubble is centered
between the black lines.
8. The accessory hook (6) is used to further stabilize the tripod in very windy
conditions. Hang a counter weight (not supplied) onto the hook to stabilize
your tripod.
How To Take Care Of The Deluxe Tripod
1. When not in use, lower tripod legs to minimum height with upper and lower
locks (2 and 3), lower center column to minimum height (F and E) and secure
in place.
2. Place tripod in carrying case (included) and store your tripod in a cool dry area.
Deluxe Tripod
This easy-to-use lightweight tripod features a quick-release platform so you can
easily switch from tripod to handheld. An easy-to-use tilt head allows the head to
be leveled without adjusting the tripod legs. Lastly, the accessory hook to further
stabilizes the tripod in windy conditions. This tripod is perfect for camcorders,
cameras, spotting scopes, and binoculars in outdoor and indoor conditions.

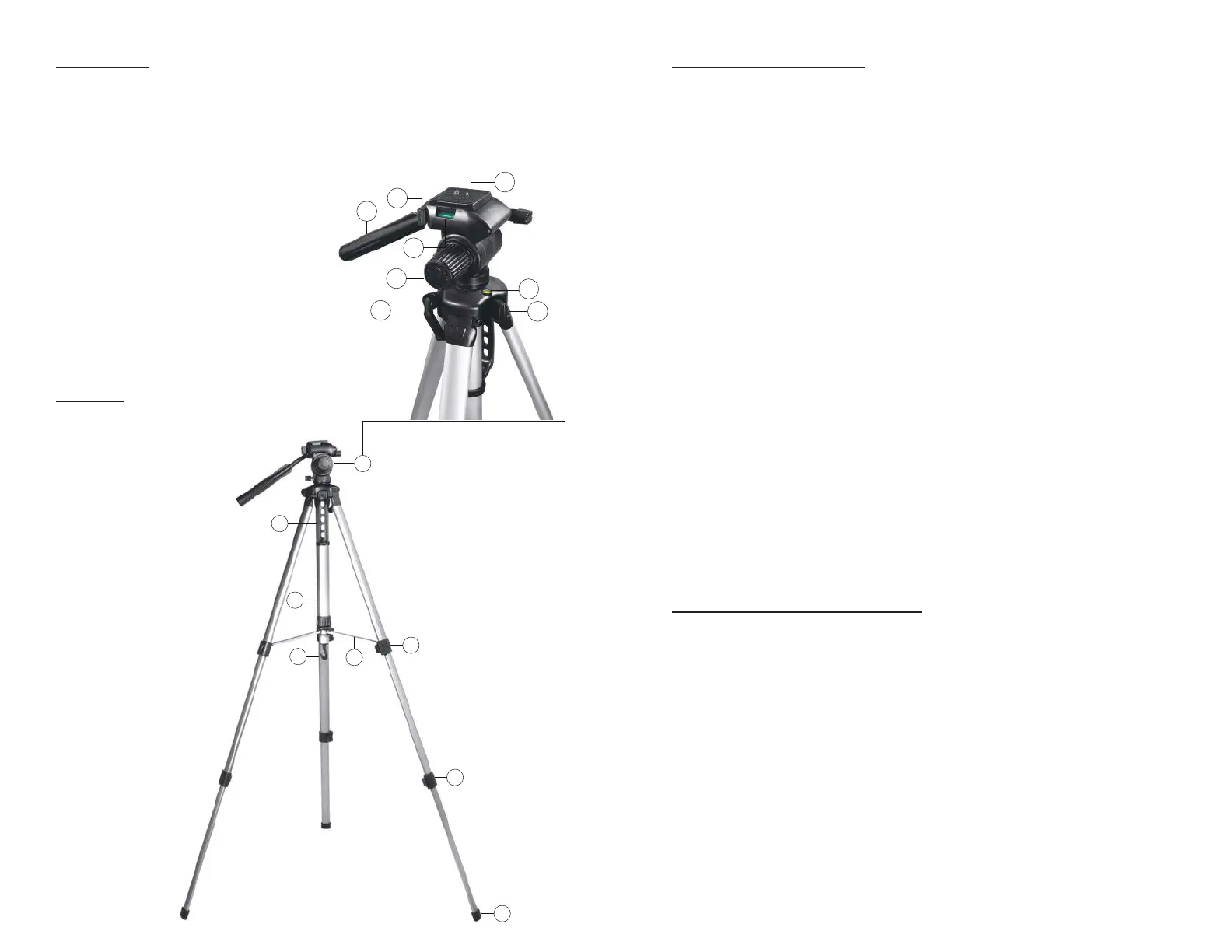

Head Parts
A - Tilt Control Handle
B - Quick Release Lever
C - Mounting Platform
D - Tripod Leveling Bubble
E - Center Column Height Knob
F - Center Column
Height Adjustment Crank
G - Head Knob
H - Head Leveling Bubble
Body Parts
1 - Head
2 - Upper Leg Locks
3 - Lower Leg Locks
4 - Feet
5 - Leg Brace
6 - Accessory Hook
7 - Center Column
8 - Carrying Handle
