Bartec BCS 3678ex-NI Supplementary Description

BCS36x8
ex
Series Connection example
Type 17-A1S4-*HP* and B7-A2S4-****
Page 40 of 78
Subject to technical changes.
05/2020

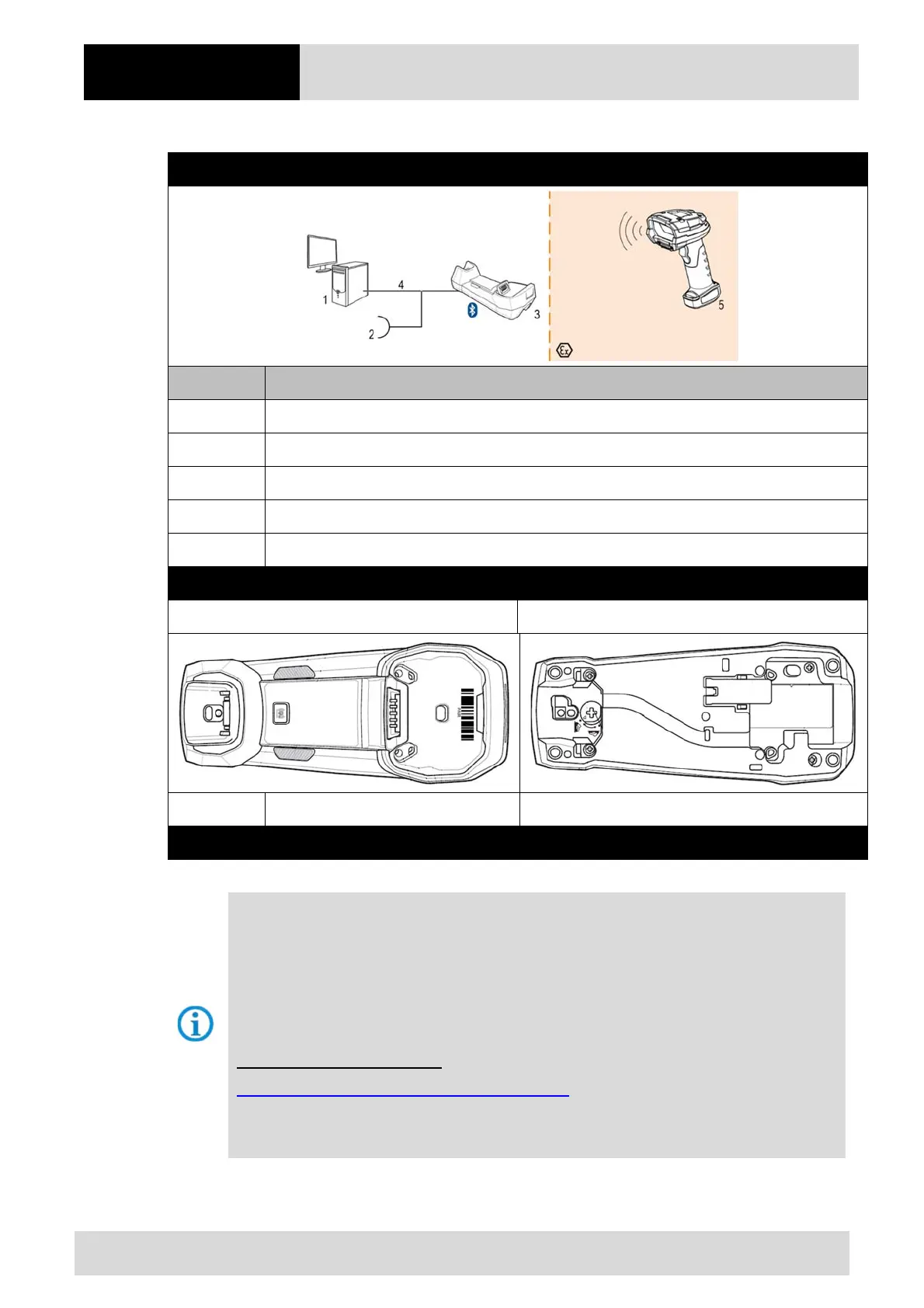

9.1.2 Connection
Diagram
Pos. Description
1 Host PC
2 Power supply unit with DC connection cable (input: 100 to 240 V
AC
)
3 Cradle for hand-held scanner
4 Serial (COM) connection cable
5 BCS 3678
ex
hand-held scanner
Cradle for hand-held scanner
Front view with barcode for pairing Rear view with type label including MAC address
Cradle – driver
Driver for the cradle.
On connecting the cradle, the drivers are automatically detected by the Windows operating
system and installed if necessary.
If not detected automatically, the driver can be downloaded from the Zebra website and installed
manually.
Zebra support download page:
https://www.zebra.com/us/en/support-downloads.html
 Barcode Scanners
Ultra Rugged Scanners – DS3608-HP/DS3678-HP
