Bartec BCS 3678ex-NI Supplementary Description

BCS36x8
ex
Series Connection example
Type 17-A1S4-*HP* and B7-A2S4-****
Page 58 of 78
Subject to technical changes.
05/2020

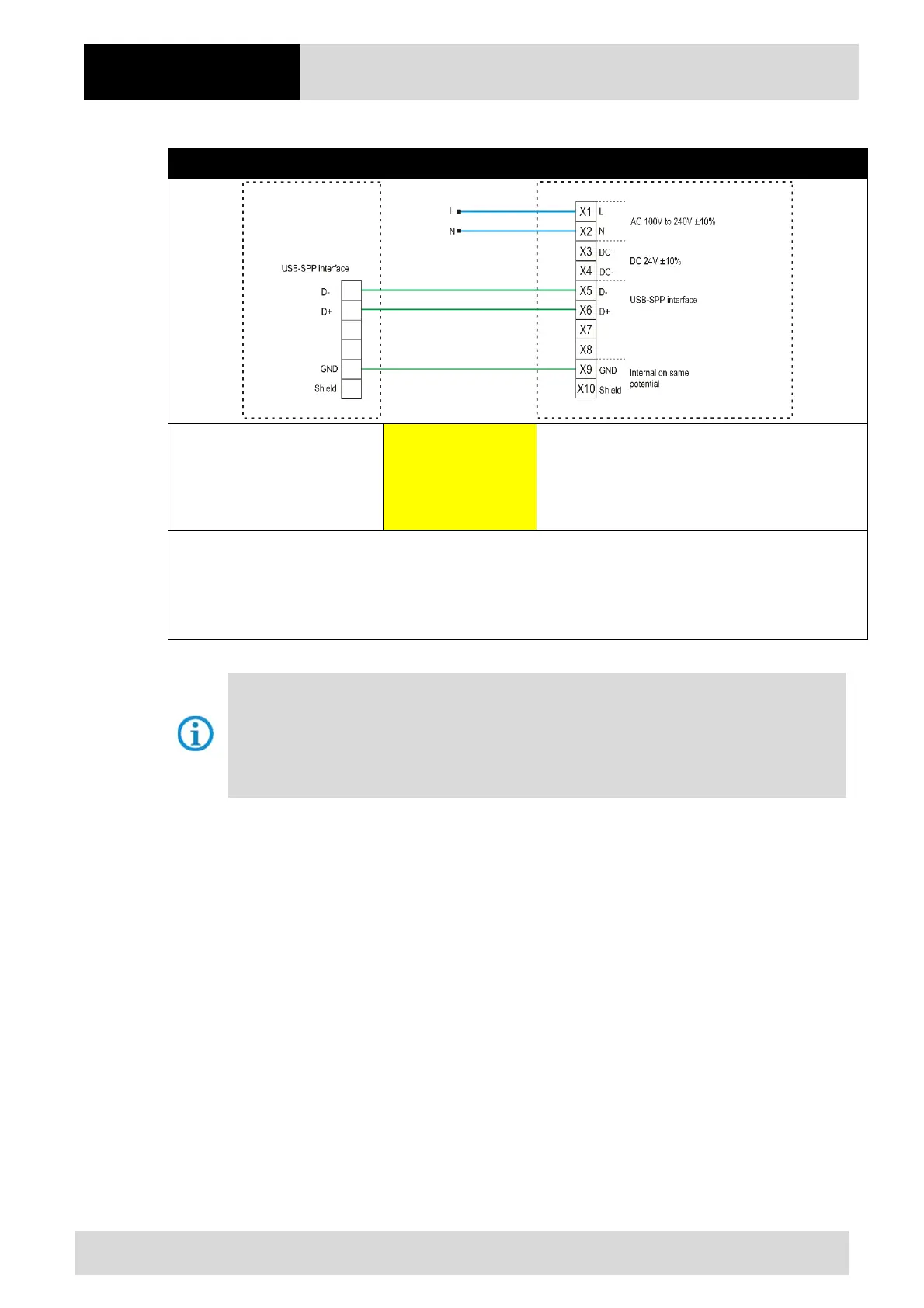

Wiring of supply module Ex i – USB-SPP interface
Ex-HMI/PC/Host with USB
Interface
USB-SPP = Serial Port Profile
USB = virtual serial COM port
Max. cable length is 5
m
Supply module Ex i - wired
Wiring:
Blue wire  necessary (example connection to AC)
Green line  necessary
For data lines (green) we strongly recommend to use shielded (e.g. CAT5, similar or higher quality) cables.
Note:
The interfaces of the power supply module Ex i are passive.
The power supply module supplies only the hand scanner with power, but not the interface.
The interfaces themselves are supplied with power via the Ex-HMI or other Ex-device.
