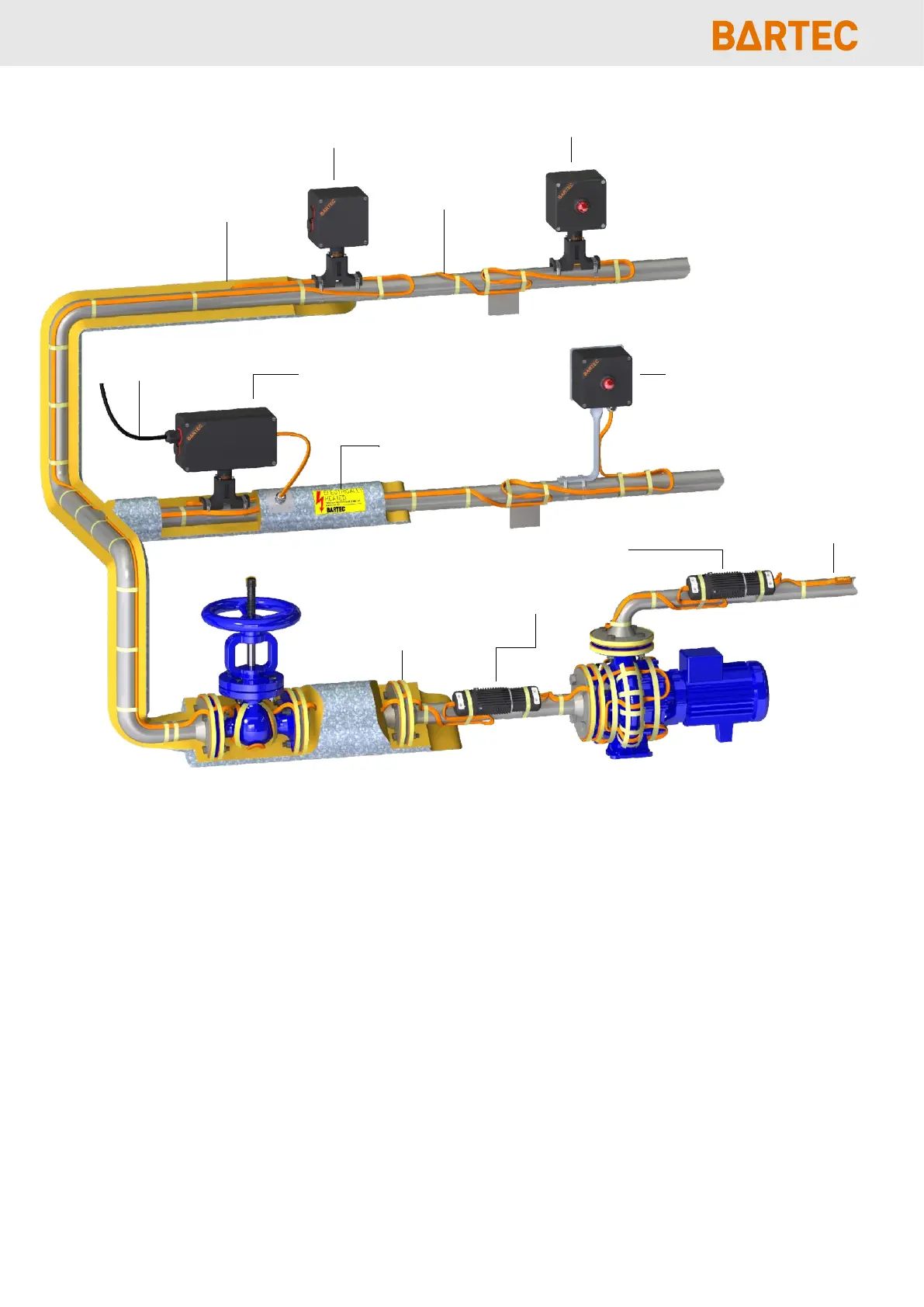

The following figure shows a sample heating circuit including typical components:
The following pages list compatible components for BARTEC Self-regulating trace heating systems in hazardous / industrial locations. The re-
spective installation instructions are included in the scope of delivery.
PBS splice kit
Trace heater
Electrically traced
warning label
Pipe insulation
(3
rd
party)
Power supply
(3
rd
party)
End of line lamp
End of line lamp
Power junction box
Adhesive tape
Silicone
end seal
PLEXO Plug-in splice kit
(for PSB and MSB only,
see DesignGuide
21-1S00-7D0001)
