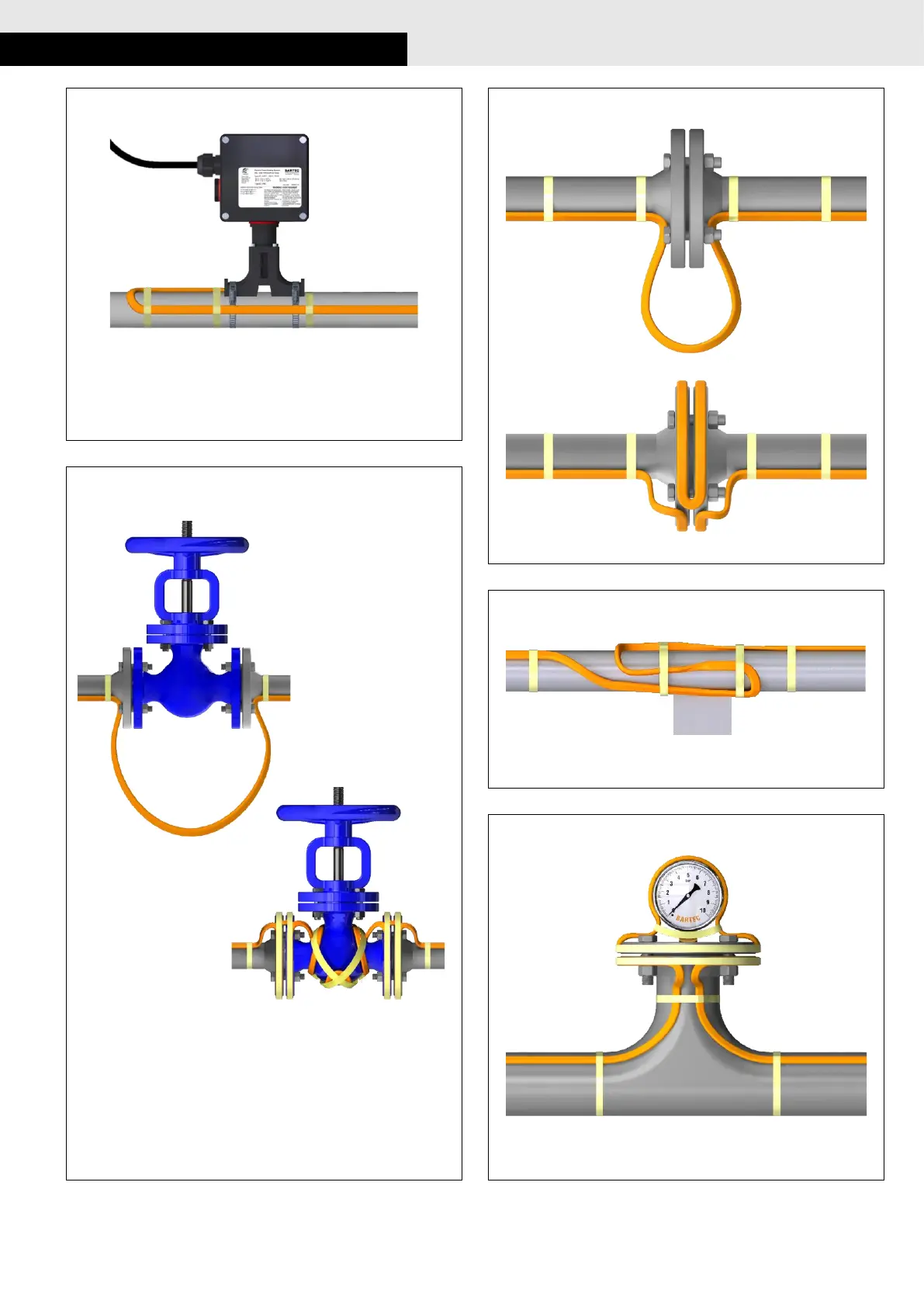

 Installation of service loops on components:
 Installation on valves:

 Installation on flanges:
 Installation on pipe supports:
 Installation on pressure gauges:
15
11
14
13
12
