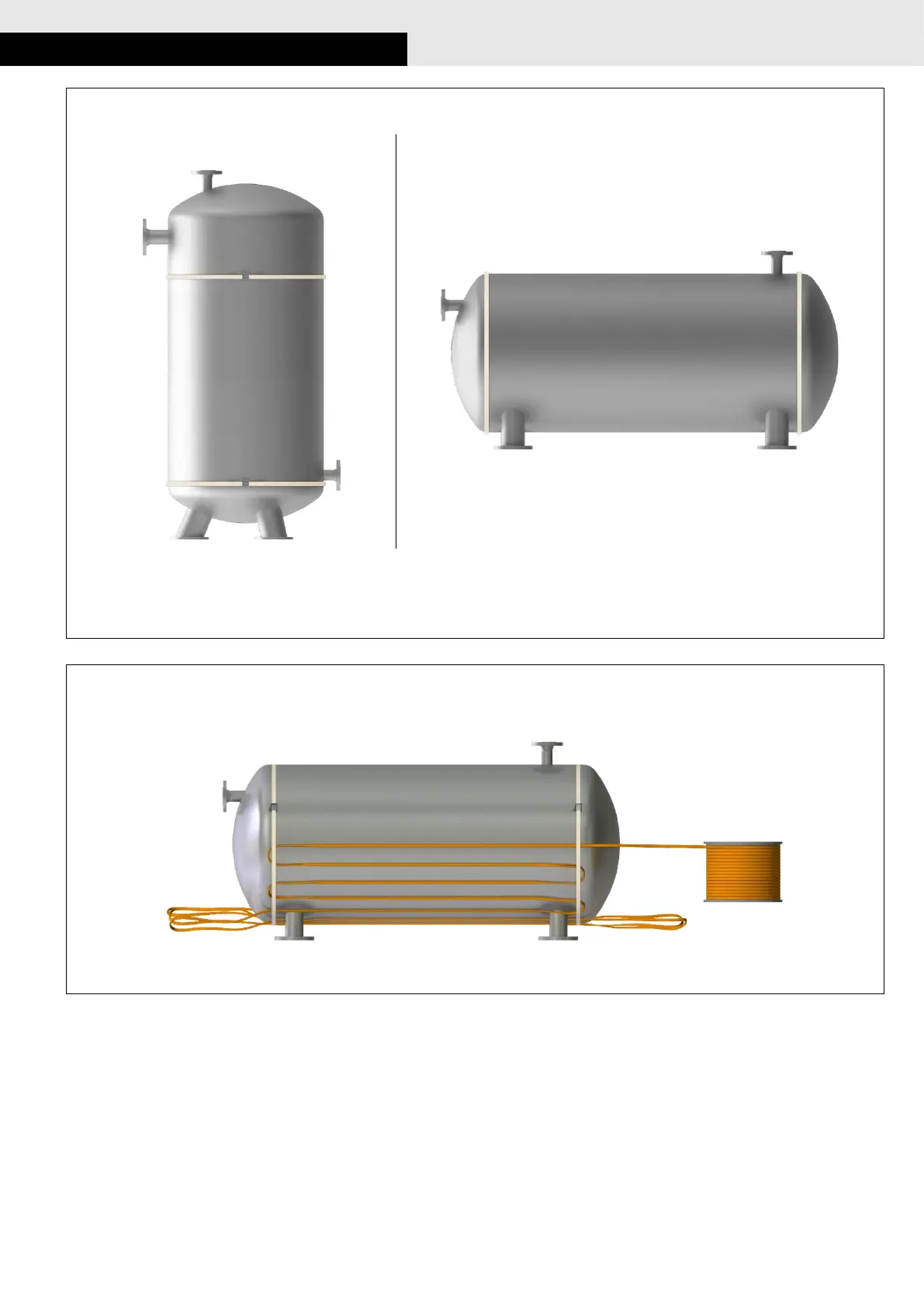

 At first, install fixing straps around the beginning and end of the tank and fasten them with slight tension.
Upright tank
Horizontal tank
 Install the trace heater beginning at the supply point.
 Fix it at the distances specified in the project planning documentation. Use the pre-mounted fixing straps to hold the trace heaters in place.
 Allow for material addition for the bases.
