Bartell B1318 - EXCITER ASSEMBLY (Figure 3)

VIBRATORY PLATE COMPACTORS INSTRUCTION MANUAL
BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201
25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX 732-566-5444
Created: 11/10
Revised: 06/13
- 18 -
8
4
5
761011112
21
97
6385

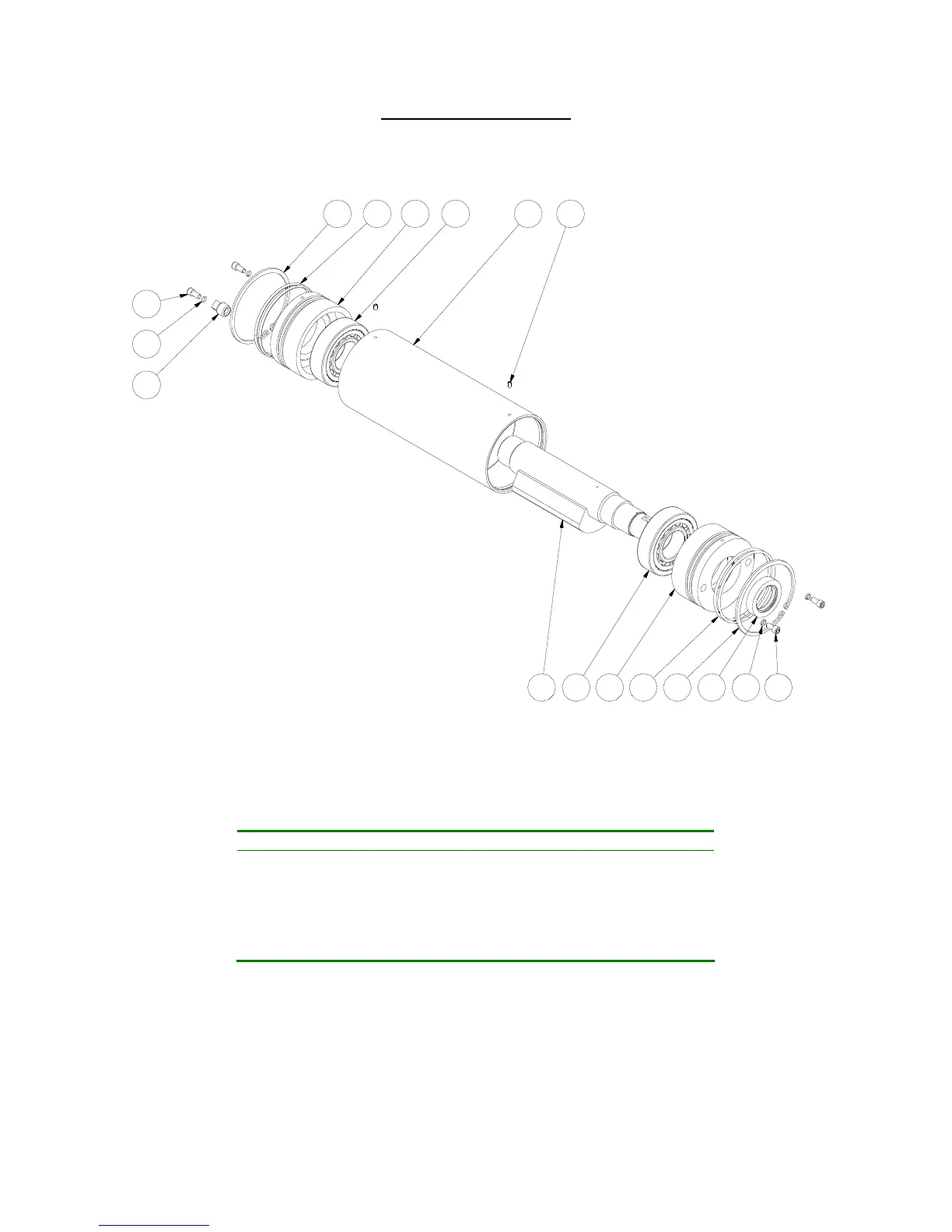

EXCITER ASSEMBLY
Figure 3 – Exciter Assembly
Note: Large Exciter Shown.
Item # Description Item # Description
1 Bearing 7 O-Ring
2 Large Shaft Ass’y 8 O-Ring
3 Oil Seal 9 End Cap
4 Pipe Plug 10 End Cap
5 Cap Screw 11 Steel Tube
6 Retaining Ring 12 Set Screw
