Bartell B424 - Page 22

Created: 07/04
Revised: 08/14
BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728 732-566-5400 FAX 732 -566-5444
Item # B424 B430 Description Qty. Eff. Date
1 11757 11757 Oil Lubricated Spider Plate 1 1/1/1997
2 11754 11754 Lift Lever, Small 4 1/1/1997
3 11759 11817 Trowel Arm 4 1/1/1997
4 11762 11762 Set Screw, M8x20mm 8 9/5/2000
5 11760 11760 Jam Nut, M8 12 1/1/1997
6 11763 11763 Carriage Bolt, M8x20mm 4 1/1/1997
7 11761 11761 Oil Seal 4 1/1/1997
8 11764 11764 Dog Screw 4 1/1/1997
B424 - 21616, B430 - 11815
EDGER TROWEL INSTRUCTION MANUAL
BARTELL MORRISON INC. BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201
25 INDUSTRIAL DRIVE, KEYPORT, NEW JERSEY, USA, 07735, 732-566-5400 FAX 732-566-5444
Created: 07/04
Revised: 06/12
- 13 -
EDGER POWER TROWEL ASSEMBLY
Figure 1 - Complete Edger Trowel
- 22 -

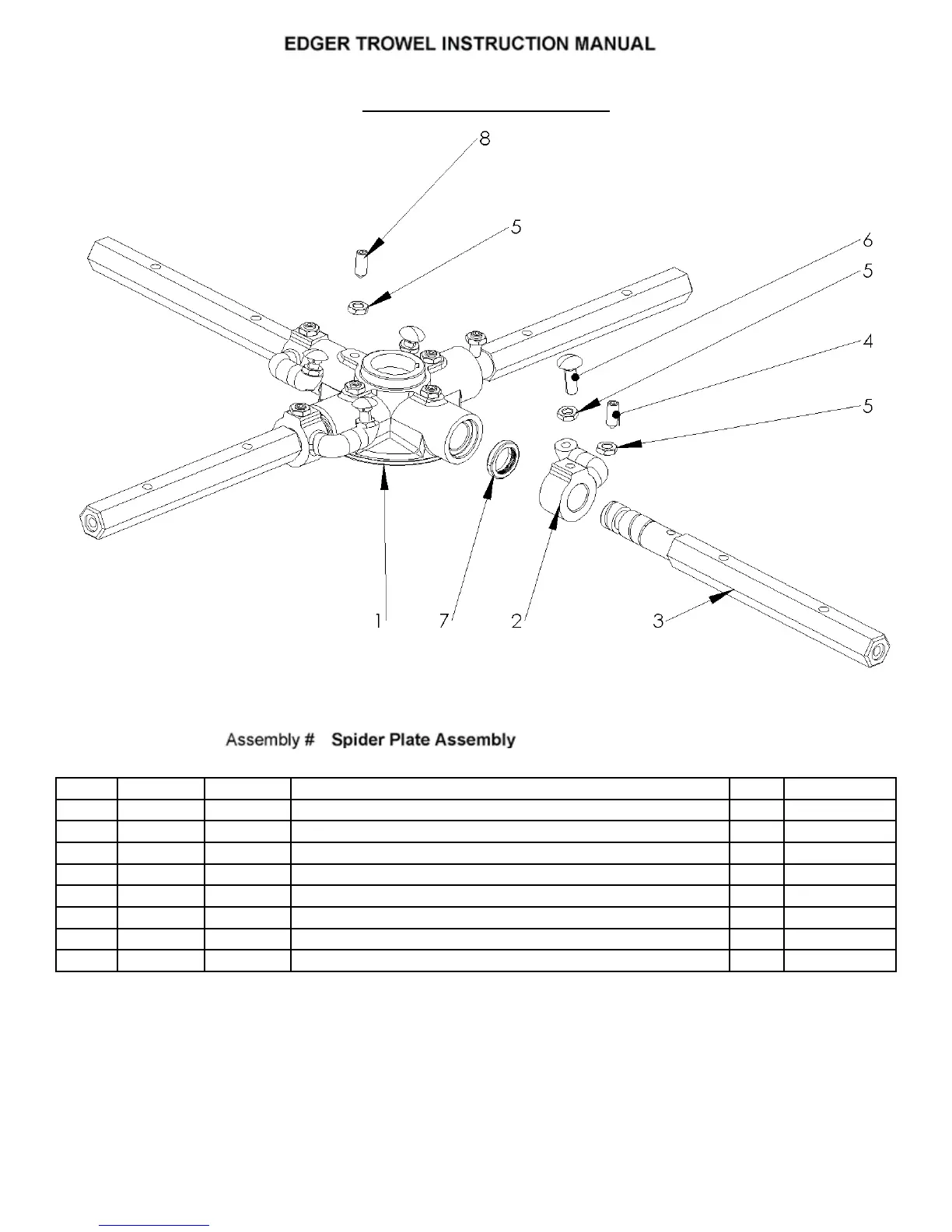

SPIDER PLATE ASSEMBLY
Figure 3 - Oil-Bath Spider Plate Assembly
