Grids may be surveyed using parallel traverses (Figure 10) or zigzag (Figure 11). The Set
parameters option allows the initial starting direction to be saved as part of the header
information.

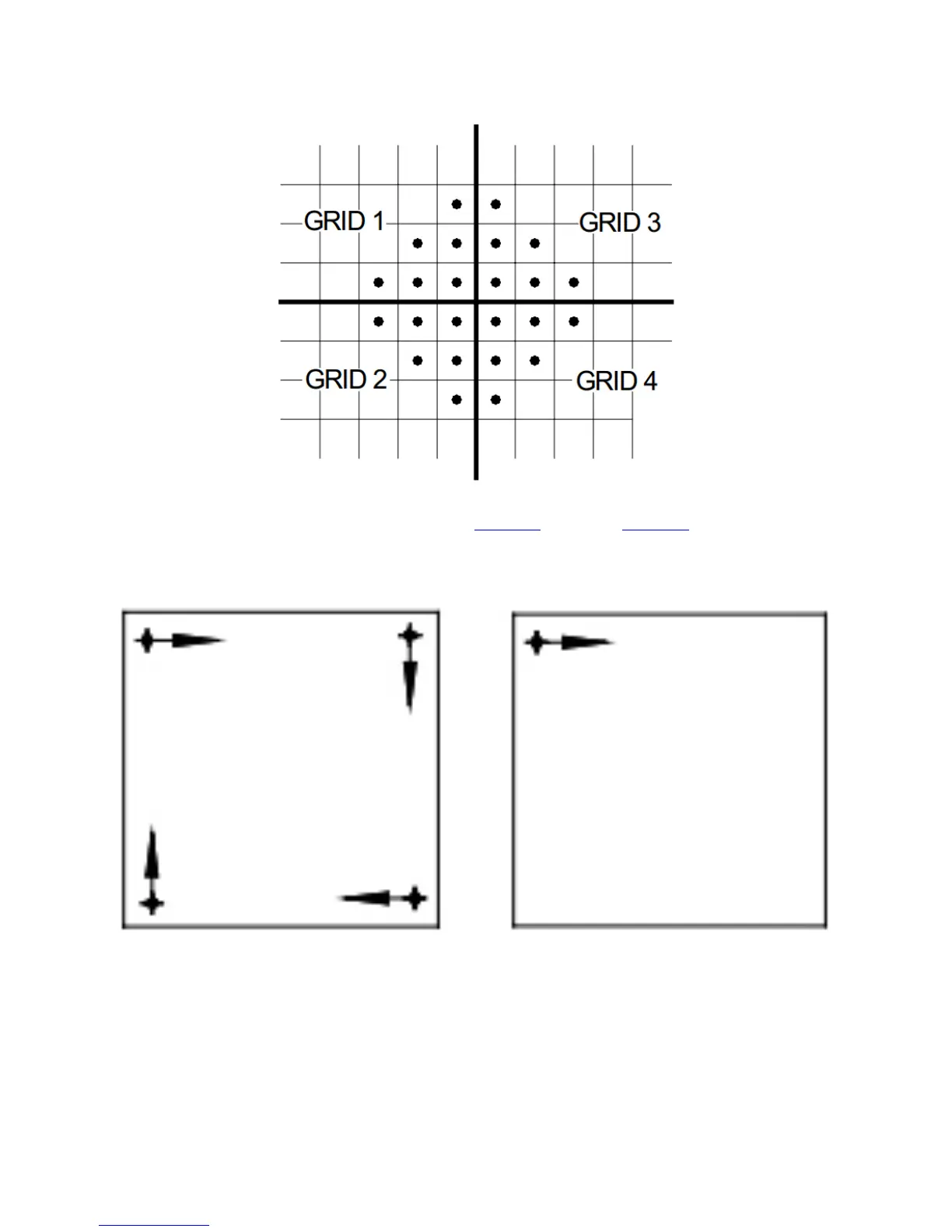

Figure 12: Possible starting points for rst traverse. Figure 13: First traverse direction when plotted.
Figure 14: Measurement points on a series of Grids.
