BAS-IP AV-03D - Electrical Connection

3
Eng
Completeness check of the product
Before installation of the outdoor panel, it is necessary to check that
it is complete and all components are available.
Outdoor panel kit includes:
Outdoor panel
Manual
Surface mounting bracket with a hood / without hood
Set of wires with connectors for connection of power supply,
lock, and additional modules
A set of plugs for connections
Set of set screws with a wrench
1 pc
1 pc / 1 pc
1 pc
1 pc
1 pc
1 pc
After verifying the device's completeness, you can switch to the outdoor panel
connection.
For connection you will need::
Electrical connection
An Ethernet UTP CAT5 or higher cable connected to a network
switch / router.
Cable length recommendations
The maximum length of the UTP CAT5 cable segment should not exceed 100 meters,
according to the IEEE 802.3 standard.
Power supply at +12 V, 2 amps, if there is no PoE.
Wires must be brought for the connection of alarm loops and home
automation (optional).

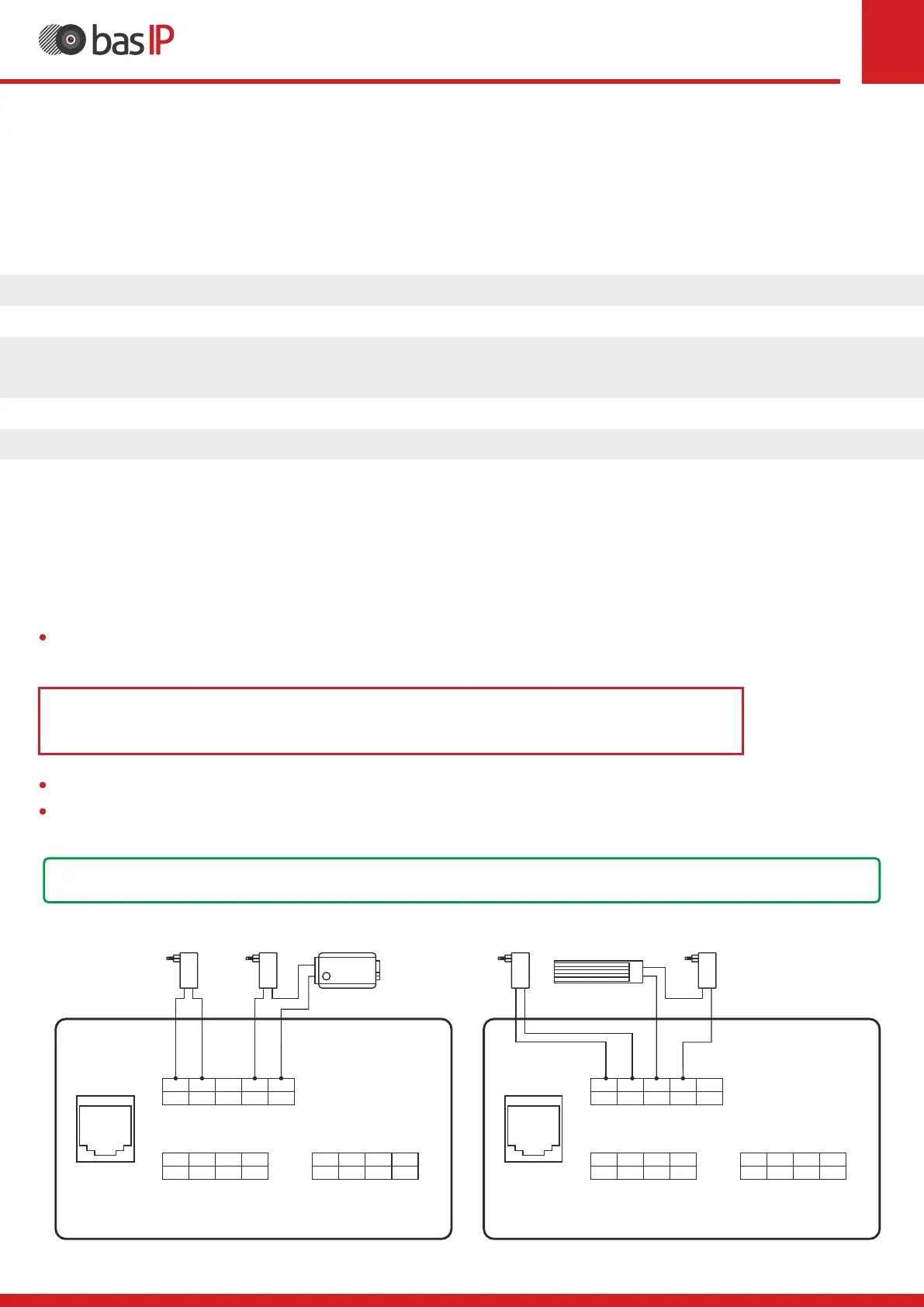

Connection scheme of electromechanical lock
using external power supply for panel and the lock.
You can connect any type of electromechanical or electromagnetic lock for which the switched current
does not exceed 5 Amps.
Connection scheme of electromagnetic lock
using external power supply for panel and the lock.
LAN (PoE)
Rs485 Interface
1 2 3
+12V 485+
4
GND 485-
Exit Button/Door Magnetic
1 2 3
EXIT DIN
4
GND DS
Power/Switch Output
1 2 3
+12V NC
4 5
GND NOCOM
+12V
DC
+
-
+12V
DC
+
-
Electromechanical lock
Power supply
for the panel
Power supply
for the lock
LAN (PoE)
Rs485 Interface
1 2 3
+12V 485+
4
GND 485-
Exit Button/Door Magnetic
1 2 3
EXIT DIN
4
GND DS
Power/Switch Output
1 2 3
+12V NC
4 5
GND NOCOM
+12V
DC
+
-
+12V
DC
+
-
Power supply
for the panel
Electromagnetic
lock
Power supply
for the lock
