Mechanical mounting

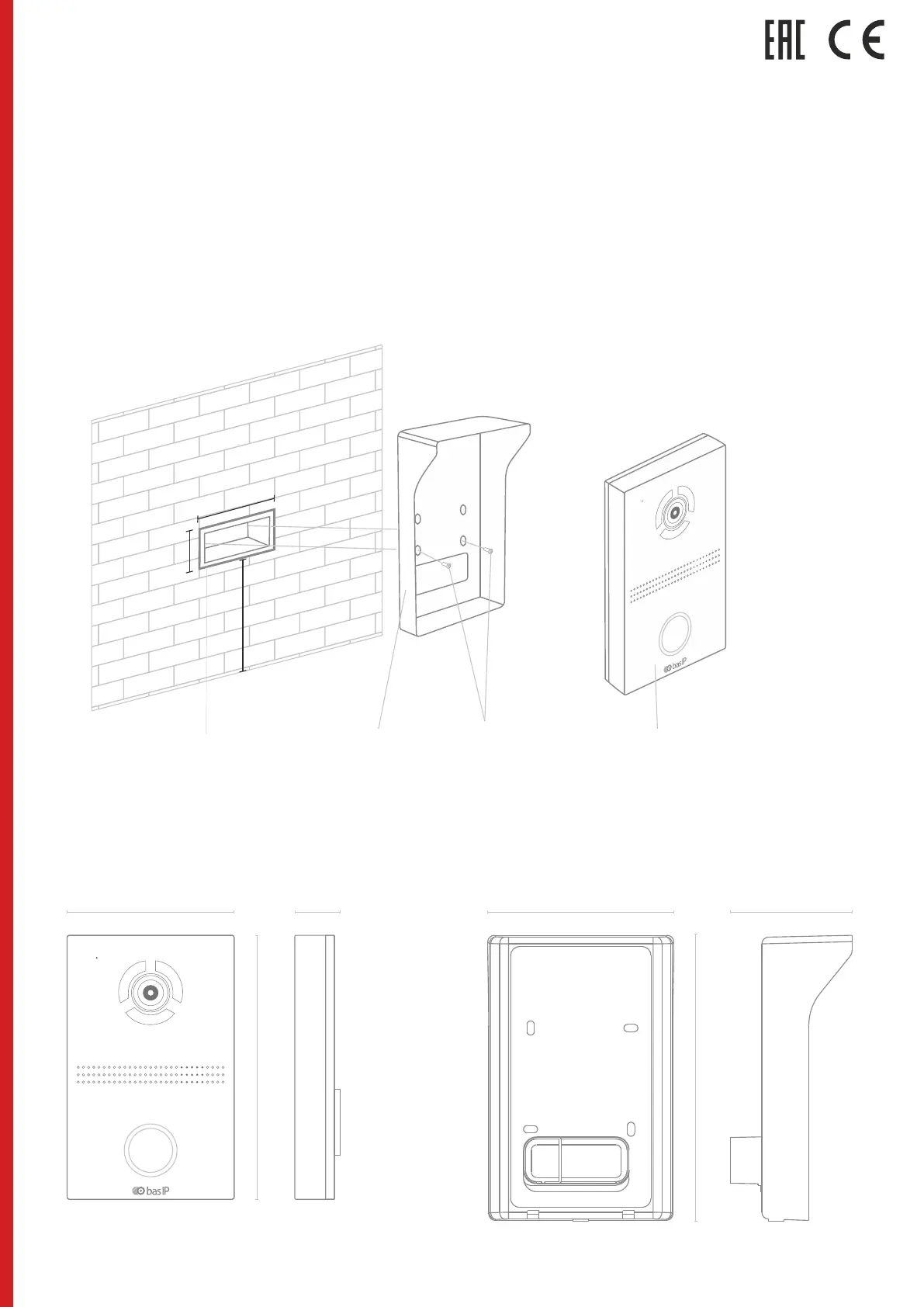

Before mounting the door panel, a hole or recess in the wall with dimensions
of 20 × 50 × 60 mm must be provided.
It is also necessary to provide supply of a power cable, additional modules and
the local network.
Niche Screws Outdoor Panel
50 mm
20 mm
150-
160 cm
Bracket
with a hood
Outdoor Panel
Bracket with a hood
111,3 mm
170,4 mm
73 mm102 mm 46 mm
160 mm
EAN: 5060514912669 (BLACK) EAN: 5060514912676 (SILVER)
