BAS-IP AV-03D - Mechanical Mounting

Installation and connection– 23

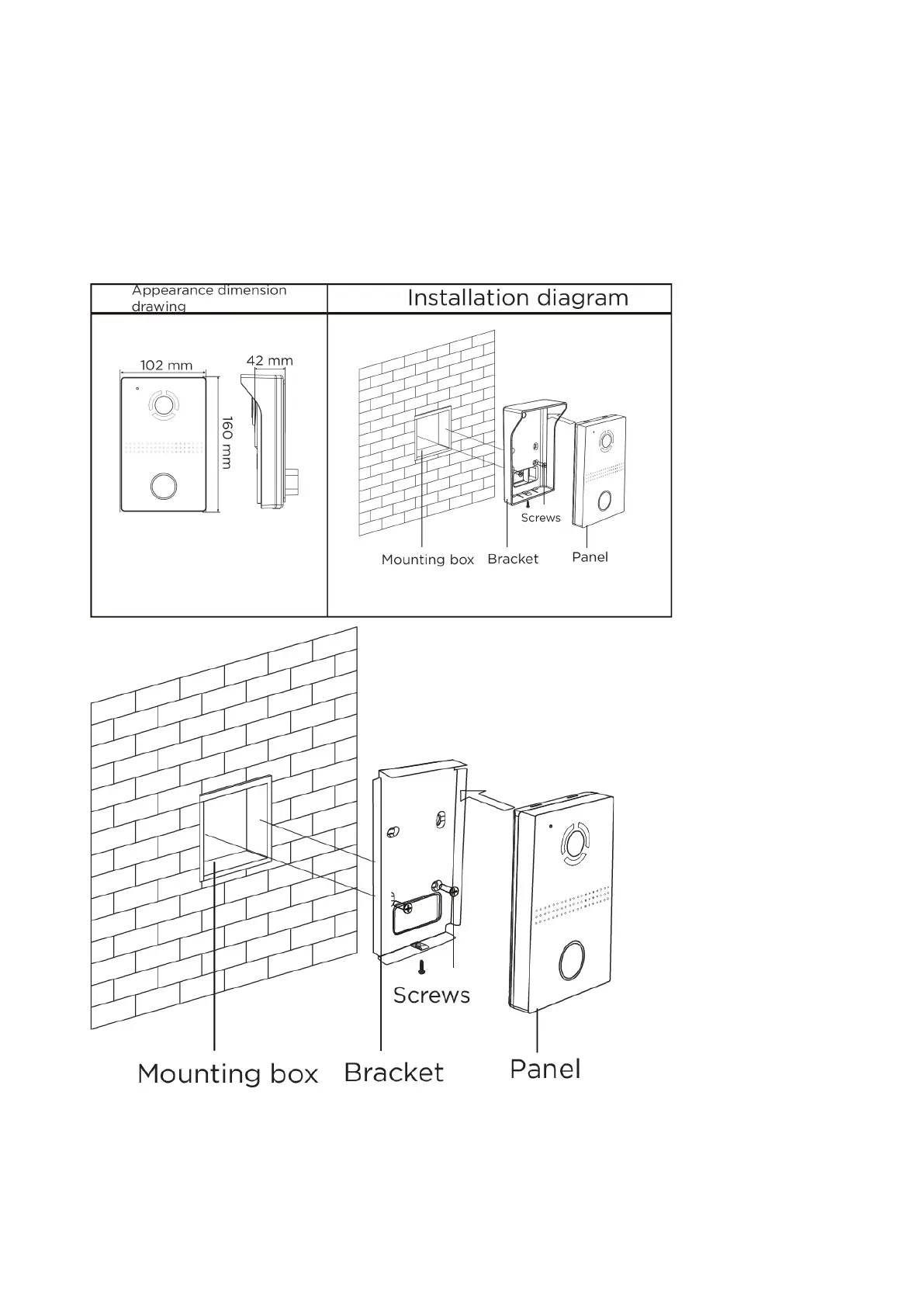

Mechanical mounting
Before mounting the door panel, a hole or recess in the wall with dimensions of 20 × 50 × 60
mm (for flush mounting) must be provided. It is also necessary to provide for the supply of
power cable, add. modules and local network.
