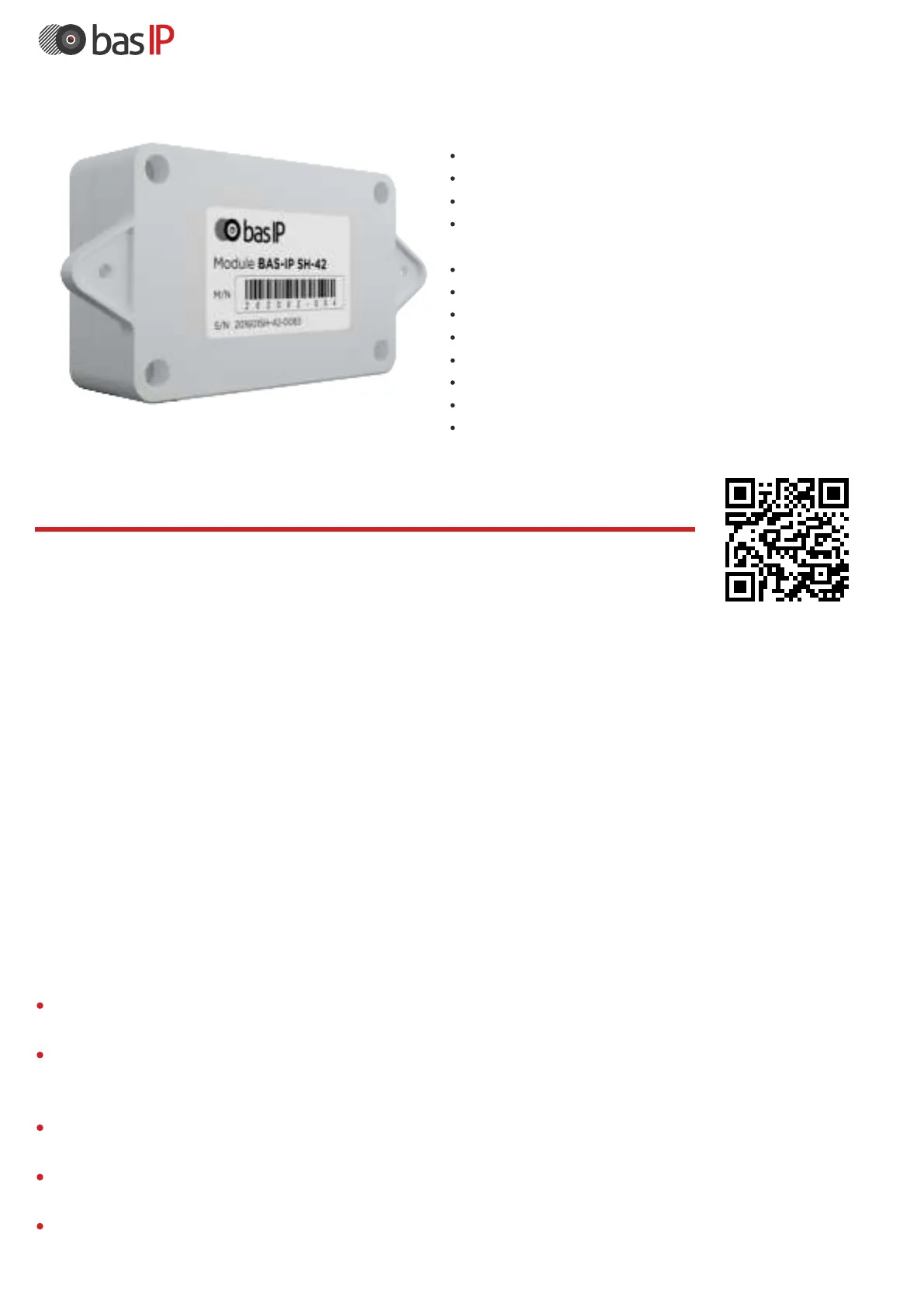

SH-42
The control module is designed to connect two locks to the outdoor panel
to the call panel through the RS-485 interface.
This module can be used in systems with enhanced security, if you need to connect
locks remotely from the call panel.
The version with 8 contacts has additional inputs for connecting buttons for opening
the first and second locks, as well as an additional input for a fire alarm.
and control them from an internal monitor or SIP client. The module is connected
Full User Manual
Functionality
Device description
wiki.bas-ip.com
TWO LOCKS CONTROL MODULE
Main feature
Module supply voltage: +12 V.
Power consumption in operating mode: 1 W.
Standby power consumption: 0.06 W.
Maximum current of connected load:
7 A (per channel).
Maximum constant load voltage: +30 V.
Maximum AC load voltage: ~ 250 V.
Operating temperature: -40 - +75° C.
Storage temperature: -15 - +65° C.
Permissible humidity: 20 - 80%.
Degree of protection: IP30C.
Overall dimensions: 114.5 × 57.5 × 34 mm.
Weight: 0.11 kg.
Two built-in relays to control two locks.
The ability to connect as electromechanical locks and latches
and electromagnetic locks.
Switchable contact group on each relay.
Communication with the call panel via RS-485 interface.
Input for control low-voltage analog signal.
