Power supply
for external load
Powerful external load with
a current consumption
of more than 0.35A
VD

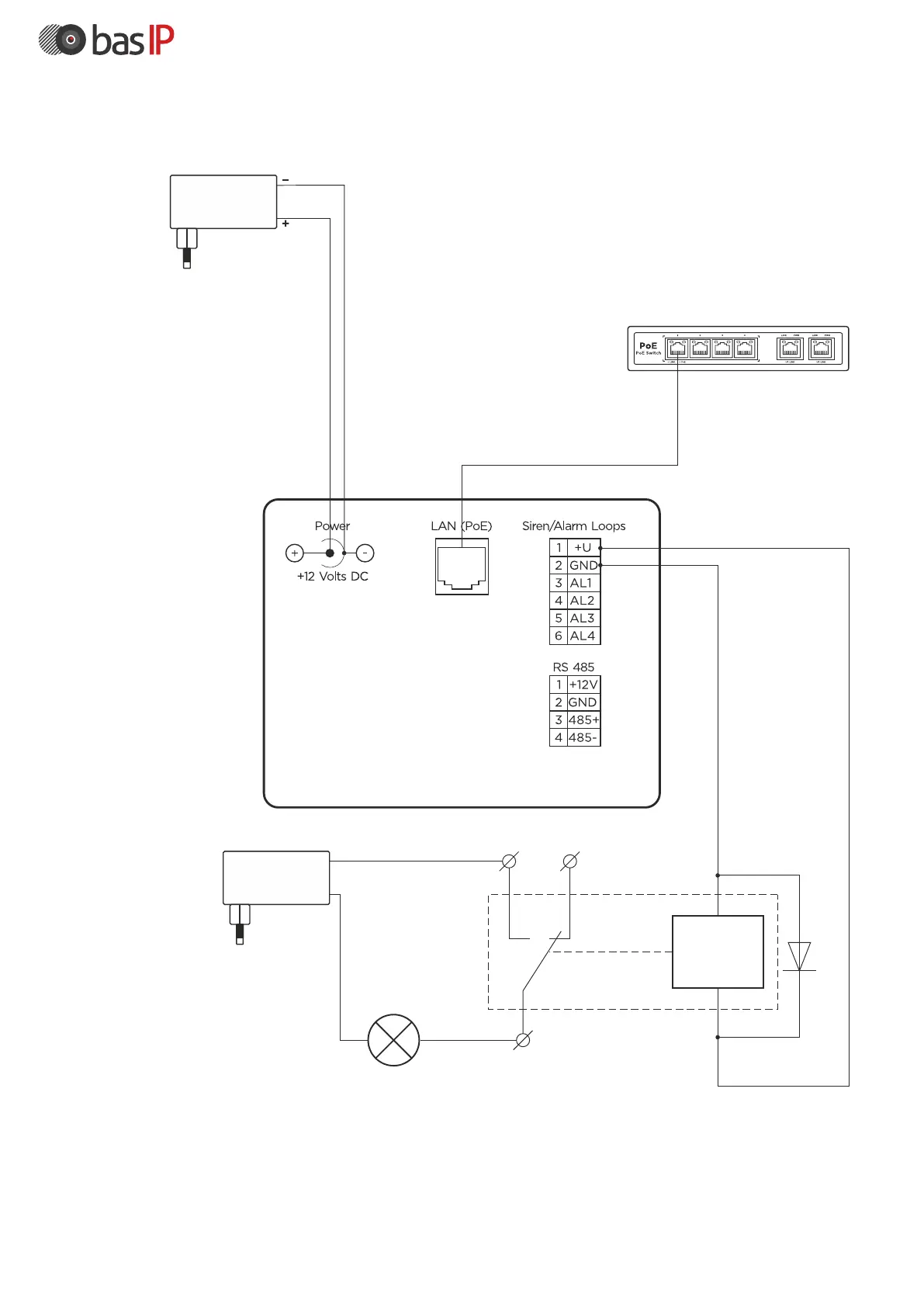

Scheme for connecting external controlled devices or connecting
a powerful external load to the siren output using
an external additional relay
K1
K1.1
External relay 12 Volt,
current consumption
less than 0.35A
Power supply
12V, 2A
Switch
