Basler BE1-50/51B-107 - Page 35

9252000991 Rev N BE1-50/51B Installation 4-3
D2750-29
Note: Numbers in parentheses indicate metric dimensions (millimeters). All other dimensions are in
inches.

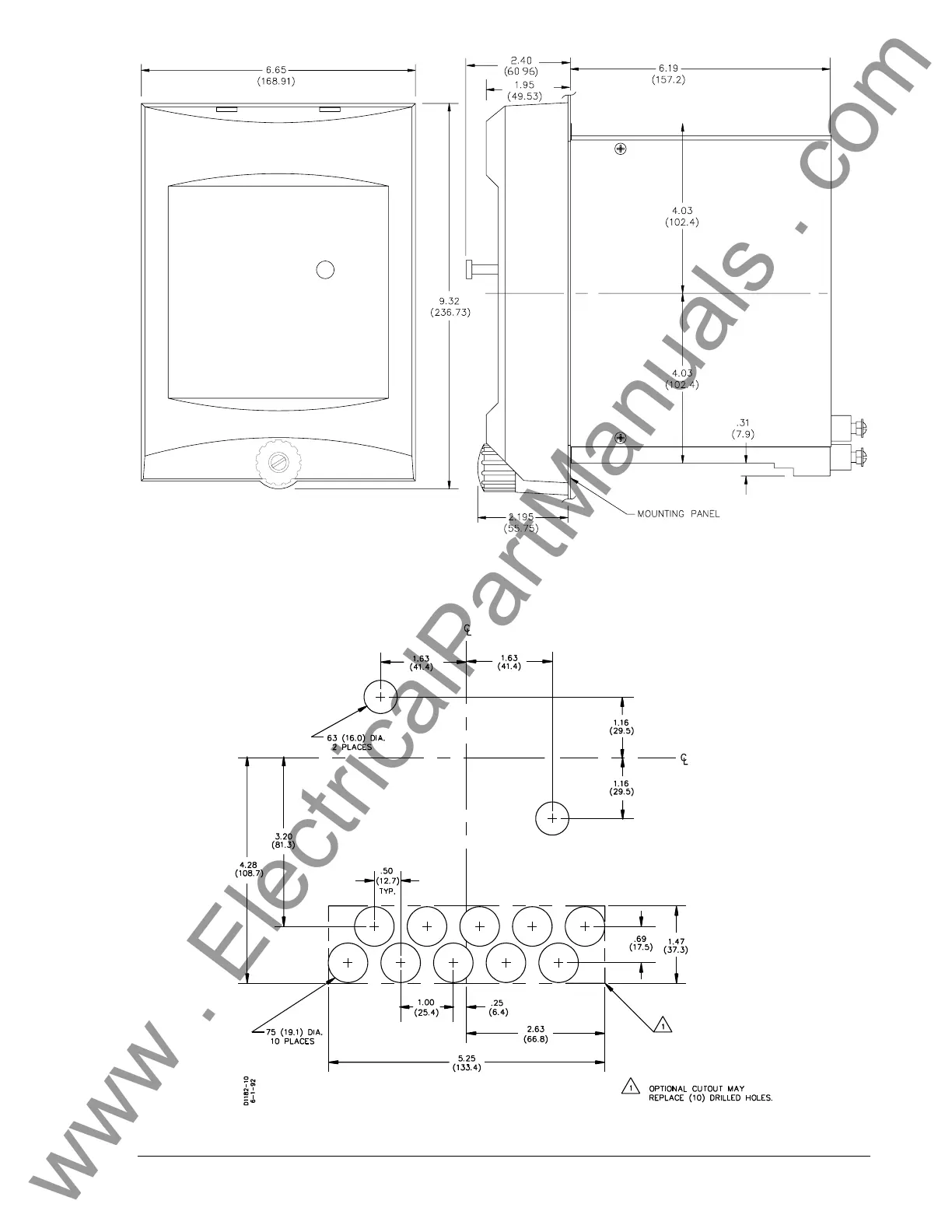

Figure 4-4. Outline Dimensions, S1 Case (Semi-Flush Mount)
Figure 4-5. Panel Drilling Diagram, S1 Case (Projection Mount)
