5-2 BE1-50/51B Testing 9252000991 Rev N
BE1-50/51B
9876 54 2
TIME INST
3
CURRENT
SOURCE
INPUT
STOP
TIMER
START
AMPS
TEST SET
P0052-89

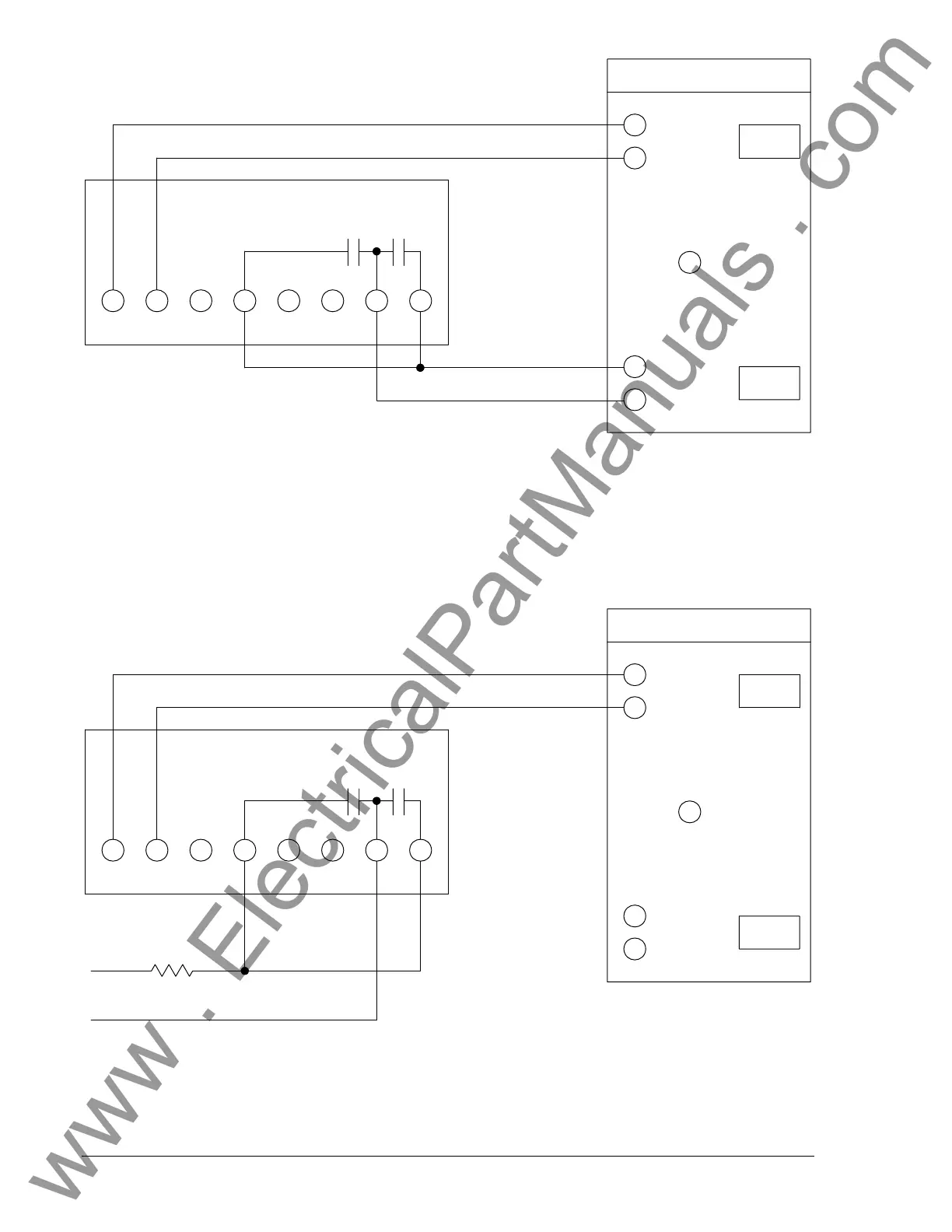

Figure 5-1. Pickup and Timing Test Setup
BE1-50/51B
9876 54 2
TIME INST
3
CURRENT
SOURCE
INPUT
STOP
TIMER
START
AMPS
TEST SET
P0052-88
1.0A
CURRENT
LIMITER
TARGET CURRENT
Figure 5-2. Target Operational Test Setup
