9252000991 Rev N BE1-50/51B Time Characteristic Curves A-11

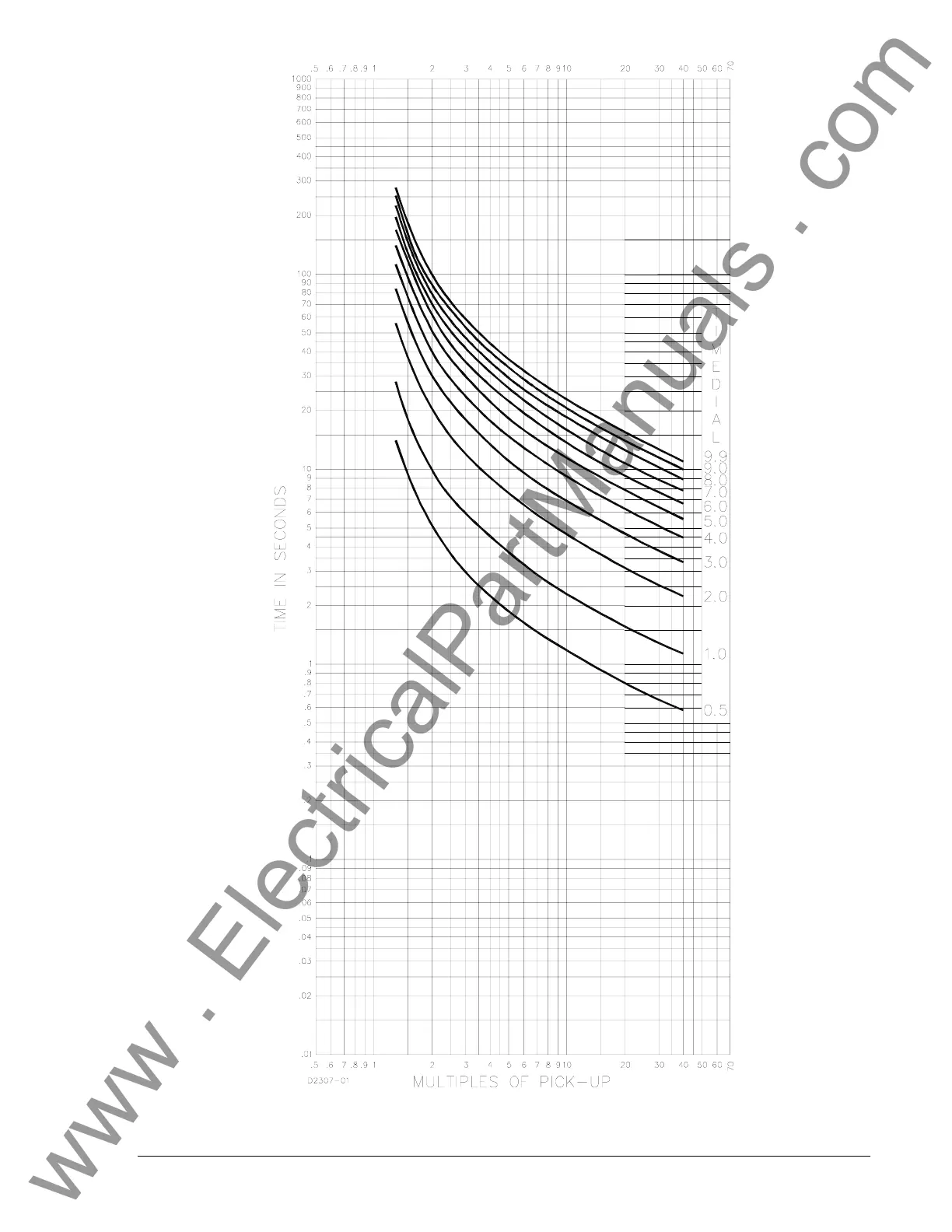

Figure A-11. Time Characteristic Curve, L2-Long Inverse
(SW3-3 ON, Similar to GE IAC 66)
