A-14 BE1-50/51B Time Characteristic Curves 9252000991 Rev N

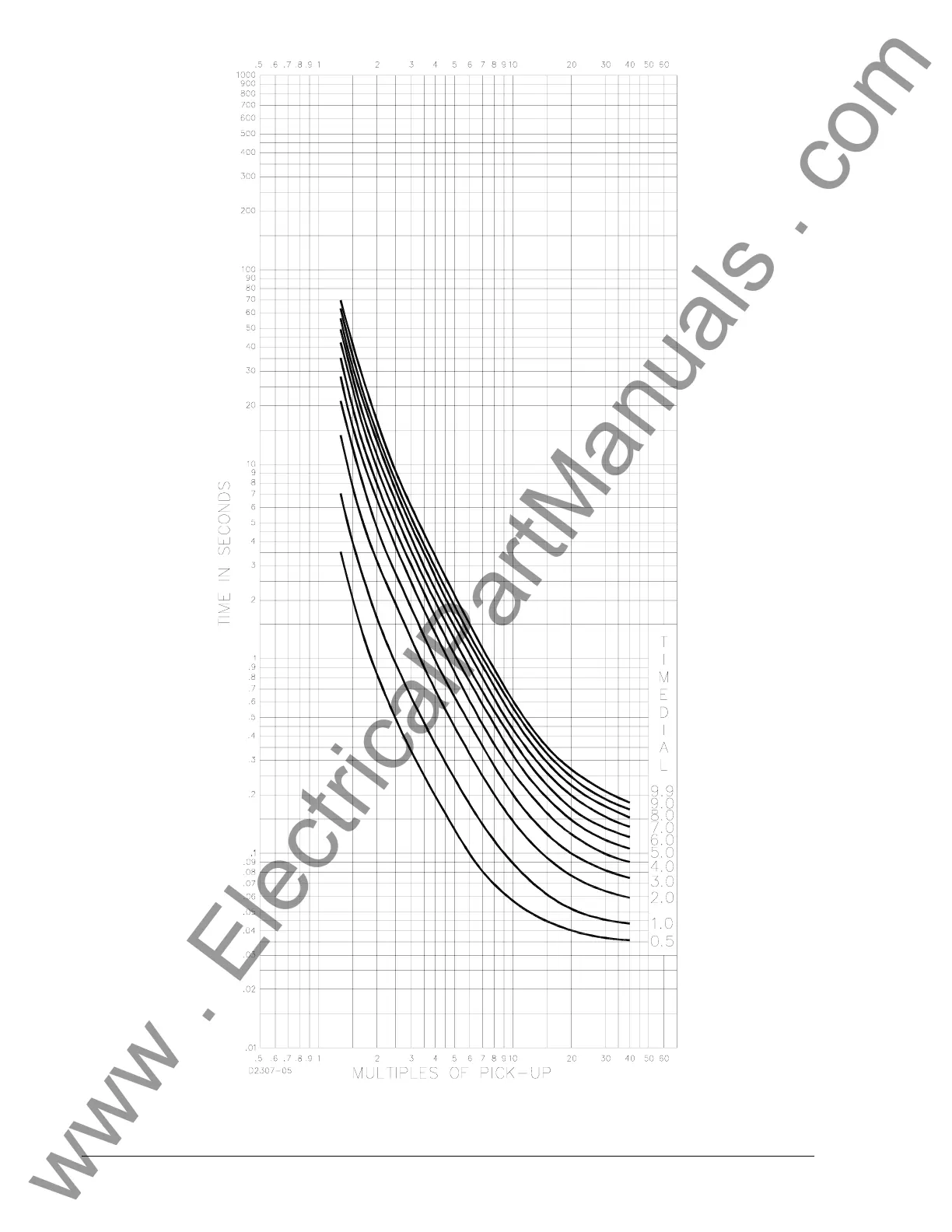

Figure A-14. Time Characteristic Curve, E2-Extremely Inverse
(SW3-3 ON, Similar to GE IAC 77)
www . ElectricalPartManuals . com
