A-24 BE1-51 Time Overcurrent Characteristic Curves 9137200997 Rev D
P0049-43

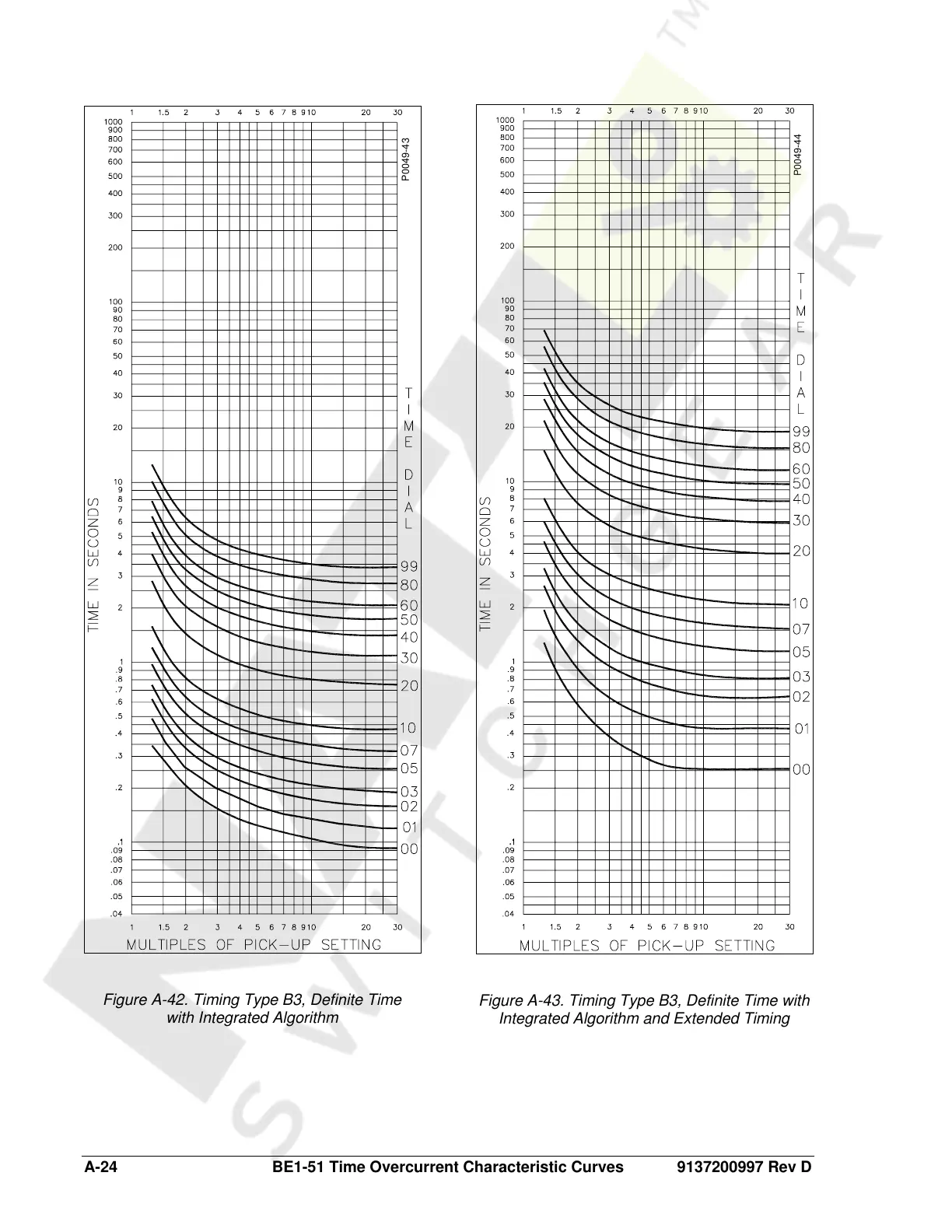

Figure A-42. Timing Type B3, Definite Time
with Integrated Algorithm
P0049-44
Figure A-43. Timing Type B3, Definite Time with
Integrated Algorithm and Extended Timing
