Basler BE1-51 - Page 87

9137200997 Rev D BE1-51 Time Overcurrent Characteristic Curves A-25
P0049-45

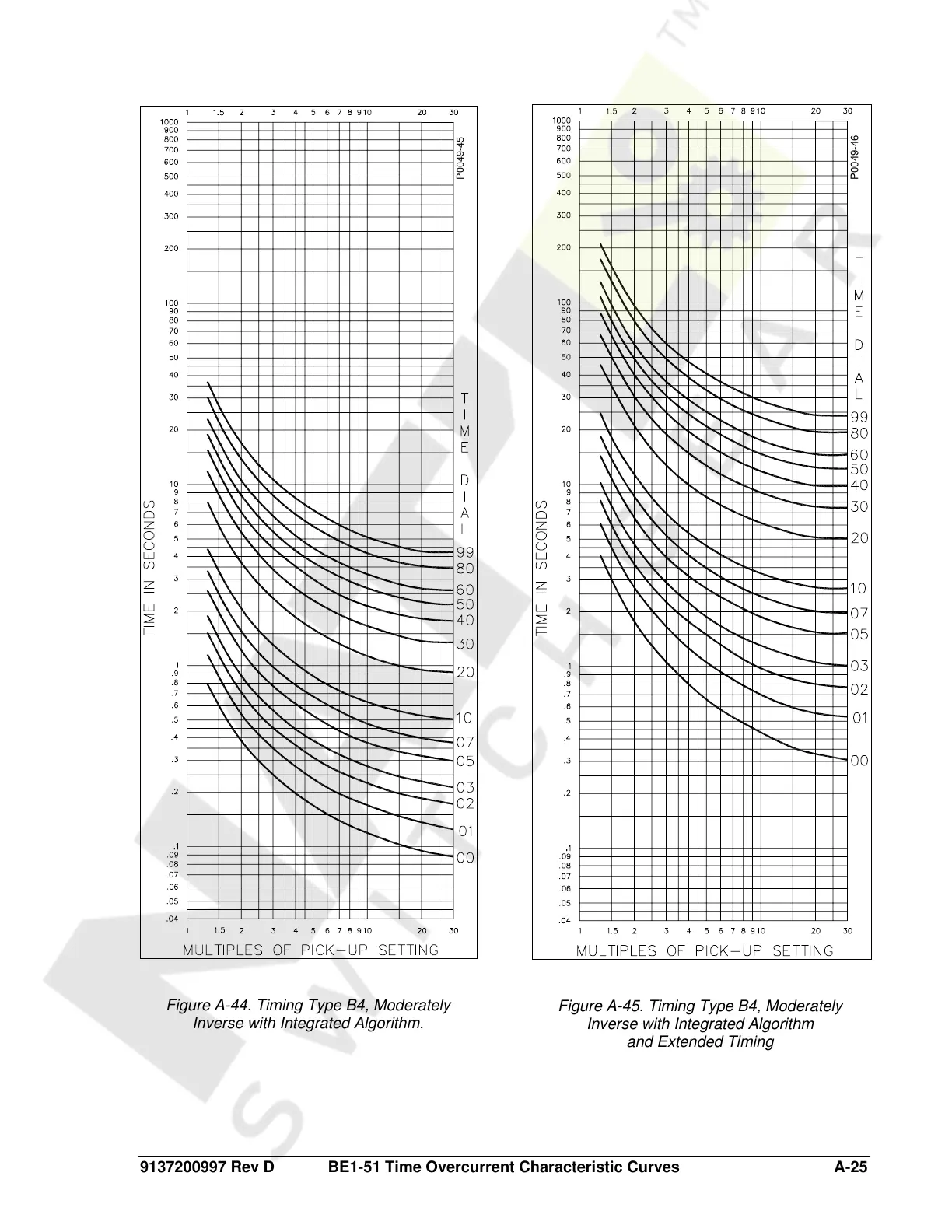

Figure A-44. Timing Type B4, Moderately
Inverse with Integrated Algorithm.
P0049-46
Figure A-45. Timing Type B4, Moderately
Inverse with Integrated Algorithm
and Extended Timing
