Installation Guide
4 Basler IP Fixed Box Cameras

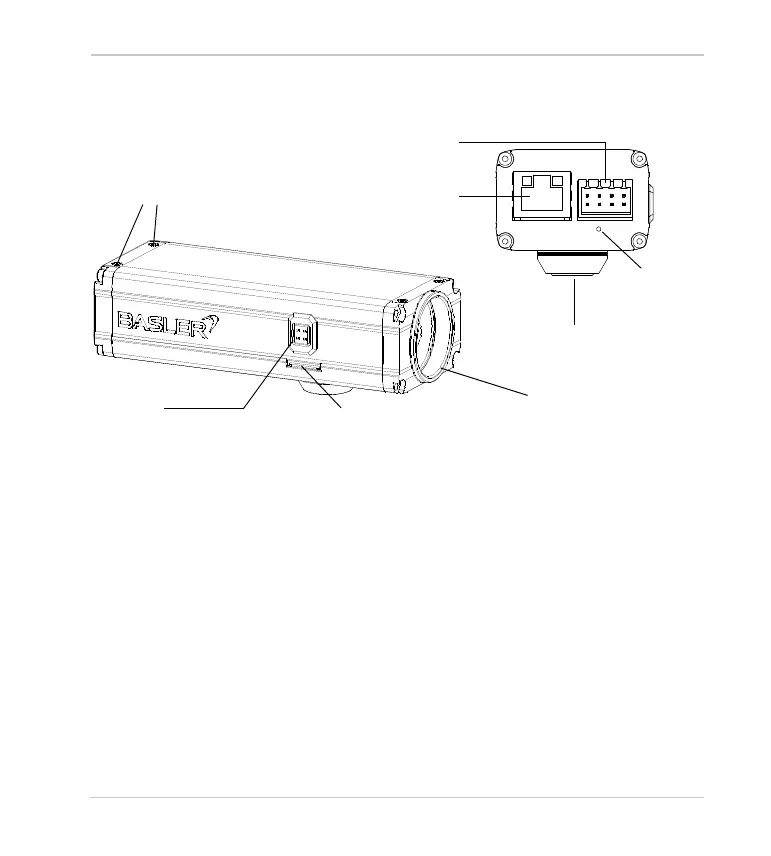

1 Hardware Overview
RJ-45 Network / PoE - Provides a 10/100 Ethernet connection and can be
used to connect Power over Ethernet (IEEE 802.3af) to the camera.
Terminal Connector - Provides connections for an alternate camera
power input, connections for the camera’s I/O ports, and connections for a
standard RS-485 serial port that can be used to control an external device.
DC Iris Control - Provides a connection for a DC auto iris.
Lens Mount - Provides a point to mount a lens on the camera (a 5 mm
extension ring is required if a C-mount lens is used; except for BIP2-
1920-30c which comes with a C-mount adapter that holds the IR-cut filter).
Factory Default Button - Used to return the camera to factory default
settings.
SD Card Slot - Can hold a microSD or a microSDHC card. The card can
be used to store alarm images or the contents of the alarm buffers.
(An SD card is not included with the camera.)
Terminal
Connector
RJ-45
Network/
PoE
DC Iris
Control
Lens Mount
(CS- or C-Mount)
1/4’’ Standard
Tripod Mount
M3 Mounting Holes
(8 total)
Factory
Default
Button
SD Card Slot
