ENGLISH
7

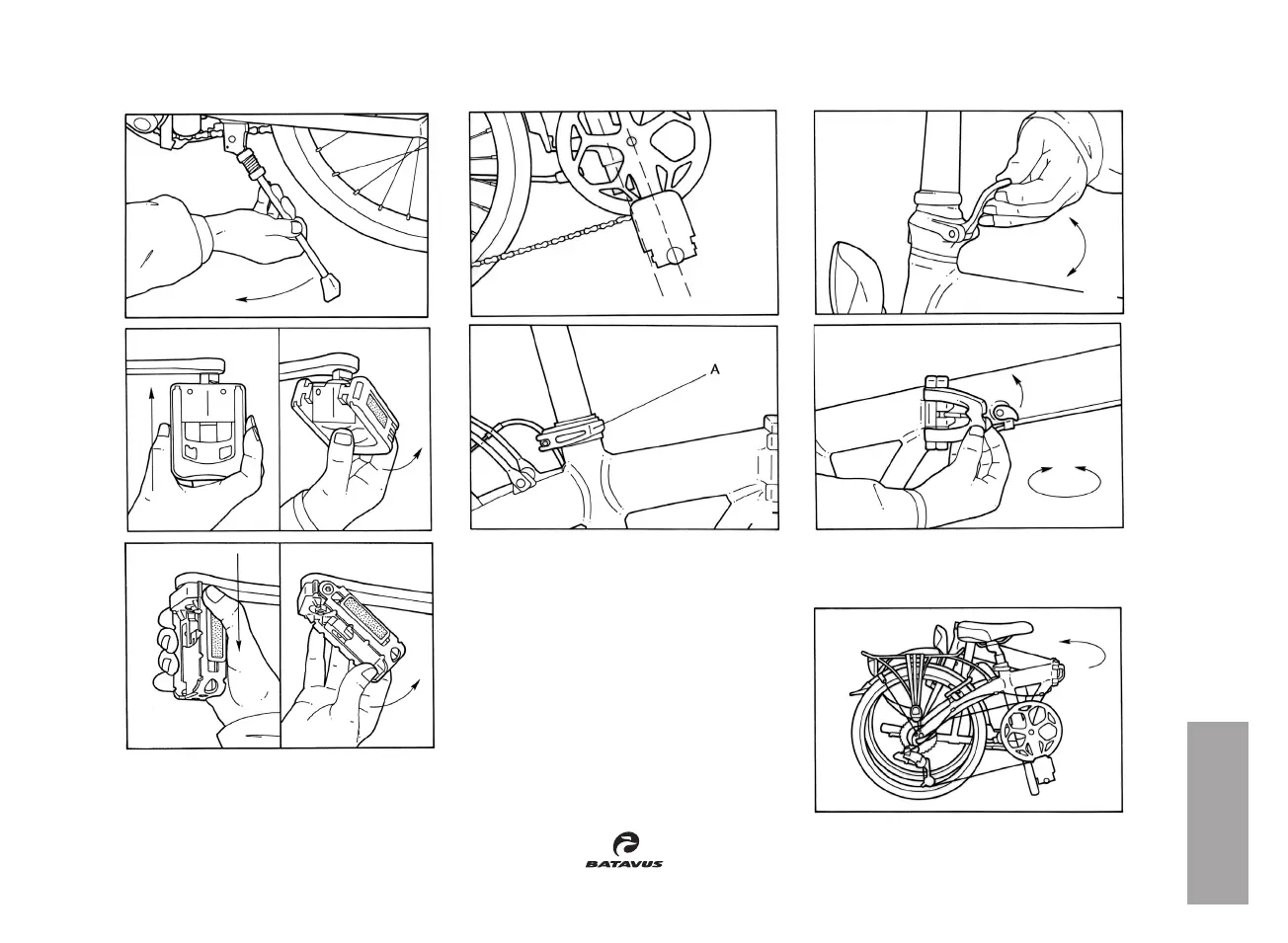

B) if you have another type of pedal,
you must pull it away from the crank to
be able to fold it in (12).
3. Place the right crank (on the chain
side) downwards in line with the seat
tube (13).
4. Loosen the saddle pin clamp (A)
(14). Press the saddle pin down to the
ground with the nose of the saddle
pointing straight forward.
5. Loosen the handlebar hinge clamp
(15) to enable folding.
6. Fold the disconnected steering tube
downwards.
7. Loosen the frame hinge clamp (16)
to enable folding.
8. Fold the stand in.
9. Fold the disconnected frame (17)
fully to the left. The steering tube is
now between the two frame parts.
(11)
(12)
(13)
(14)
(15)
(10)
(16)
(17)
