Batca Fusion 2 - Page 16

Batca Fitness Systems 16 Fusion 2 Owner's Manual

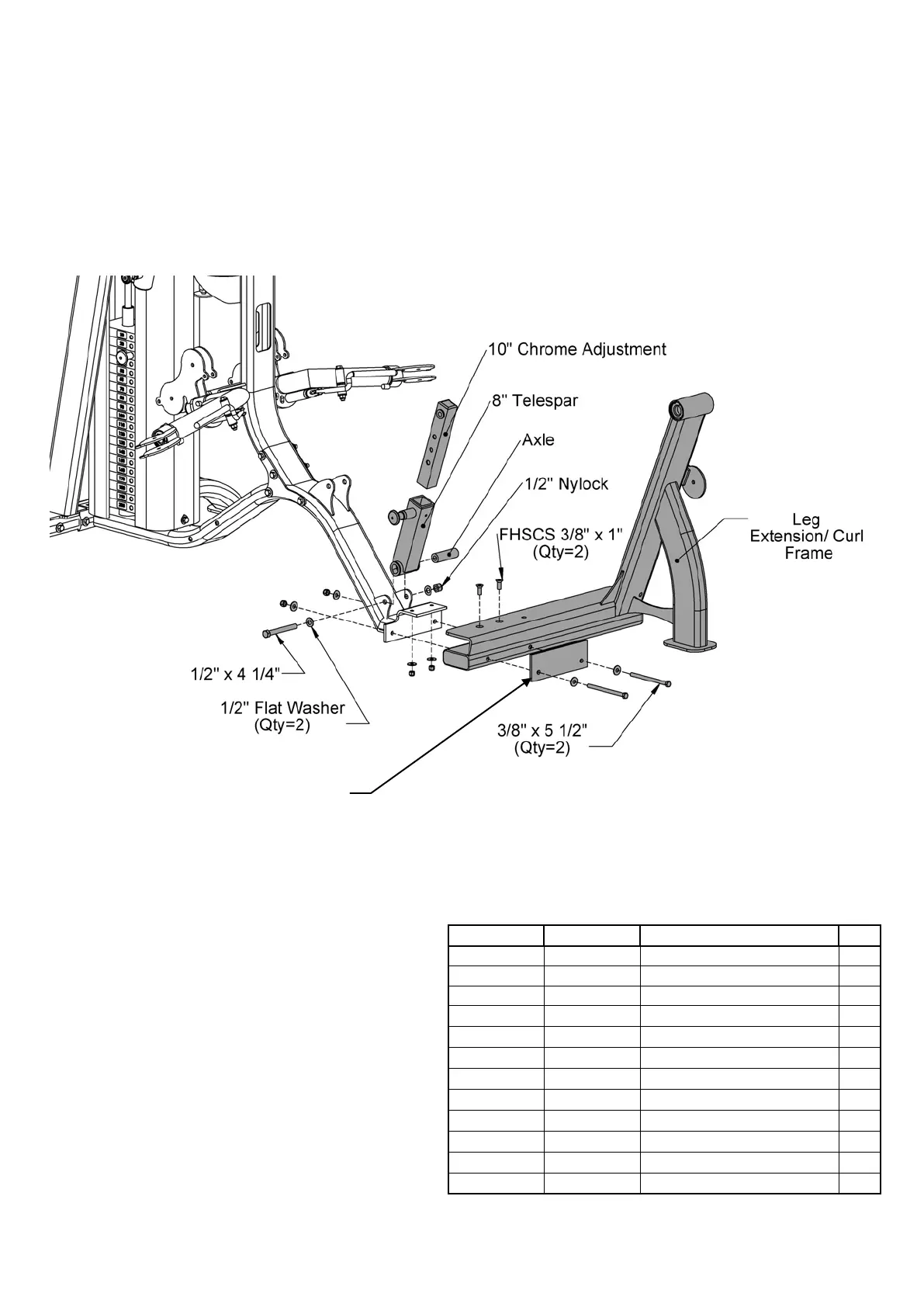

Figure 6
Item # Part # Description Qty
20 BFM-10577 8" Telespar 1
24 BFM-10579 10" Chrome Adjustment 1
33 BFM-10581 Leg Extension/ Curl Frame 1
53 BFM-51143 8” Anti-Deflection Plate 1
56 BFH-50146 3/8" Flat Washer (Black) 6
58 BFH-50157 3/8"-16 Nylock (Black) 4
64 BFH-50251 1/2" Flat Washer Black 2
66 BFH-50139 HCS 1/2-13 X 4 1/4 P5 1
68 BFH-50155 1/2"-13 Nylock (Black) 1
74 BFH-50132 HCS 3/8"-16 X 5 1/2" P5 2
115 BFH-50144 FHSCS 3/8"-16 X 1" 2
122 BFM-50931 3” Axle 1
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Step 6:
8” Anti-Deflection Plate
