Batca Fitness Systems 24 Fusion 2 Owner's Manual
Step 14:
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Item # Part # Description Qty
7 BFM-51022 1 1/4” Spacer 3
8 BFH-50173 3 1/2" Pulley 12
56 BFH-50146 3/8" Flat Washer (Black) 20
57 BFH-50122 HCS 3/8"-16 X 2 1/4" P5 6
58 BFH-50157 3/8"-16 Nylock (Black) 17
62 BFH-50124 HCS 3/8”-16 X 2 3/4” P5 3

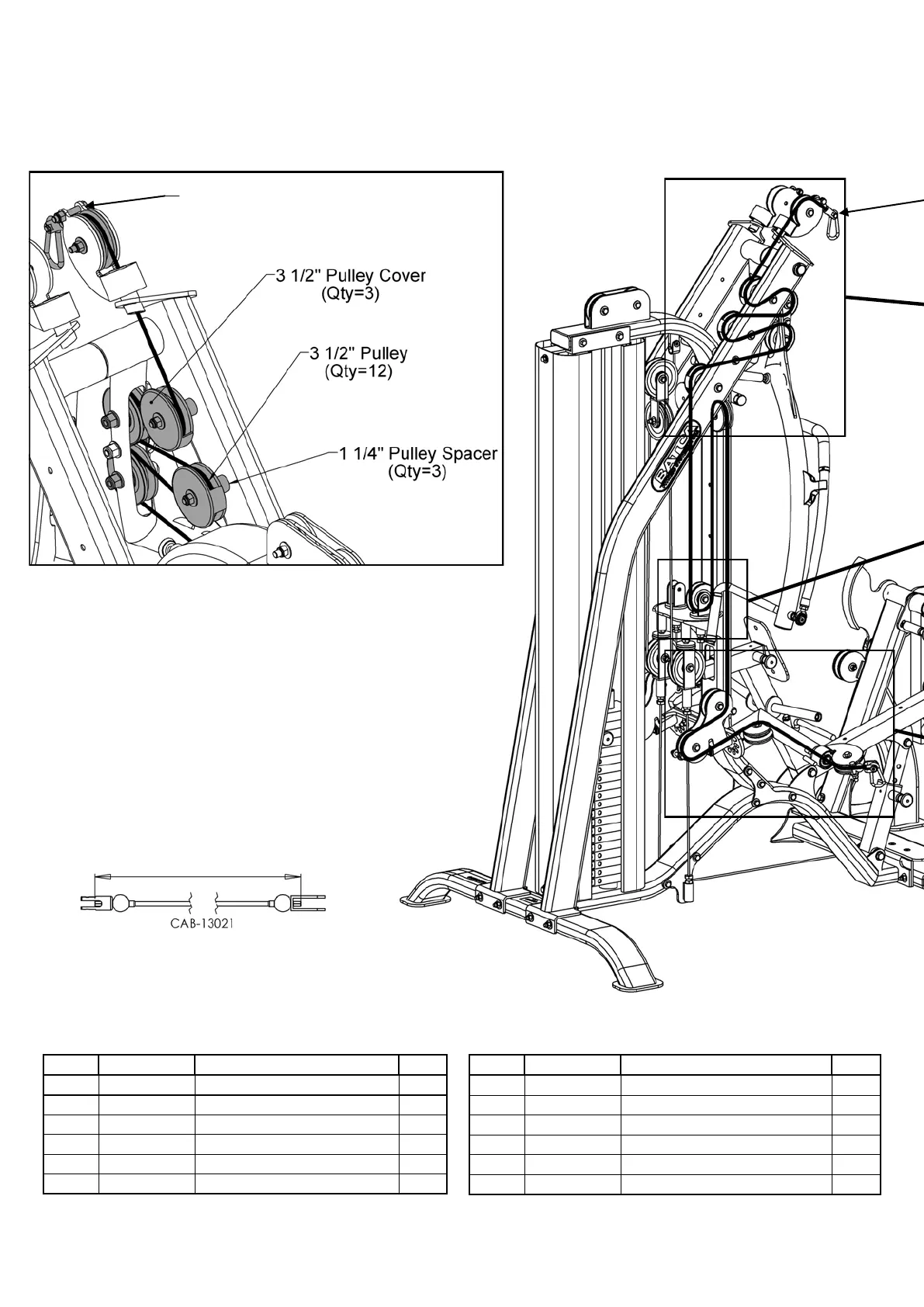

Figure 14
Item # Part # Description Qty
70 BFH-50121 HCS 3/8"-16 X 2" P5 5
72 BFH-50274 HCS 3/8"-16 X 4 3/4" P5 3
77 BFM-50505 3 1/2" Pulley Cover 4
100 CAB-13021
Fusion Lat Pull to Functional Arm
1
154 BFH-50203 1/2" Curved Pulley Spacer 4
155 BFH-50204 3/8" Curved Washer (Black) 4
Note: Reverse side of Fusion to
better see nuts, bolts, pulley
spacers, and pulley’s
Note: Cable used is CAB-13020,
Fusion Lat Pull to Functional
Arm User Right
188 1/2”
3/8” x 2”
