Batca Fitness Systems 16 LD-4 Owner's Manual
CAB-15005
74 7/16”
Item # Part # Description Qty
39 CAB-15005 Free Floater to Leg Ext./Curl Cam 1
37 BFP-51883 Double Pulley Cover 1
46 BFH-50174 4 1/2” Pulley 5
53 BFH-50351 1 3/8” Shoulder Bolt 1
54 BFP-51759 SHCS 3/8” x 2” 1
55 BFP-52377 FHSCS 3/8” x 2” 2
56 BFP-51752 SHCS 3/8” x 2 1/4” 2
69 BFH-50267 5/16” Nylock 1
70 BFH-50146 3/8” Flat Washer 6
71 BFH-50157 3/8” Nylock 5
74 BFH-50227 Cable Strap End 1
1 3/8”
Shoulder
Bolt

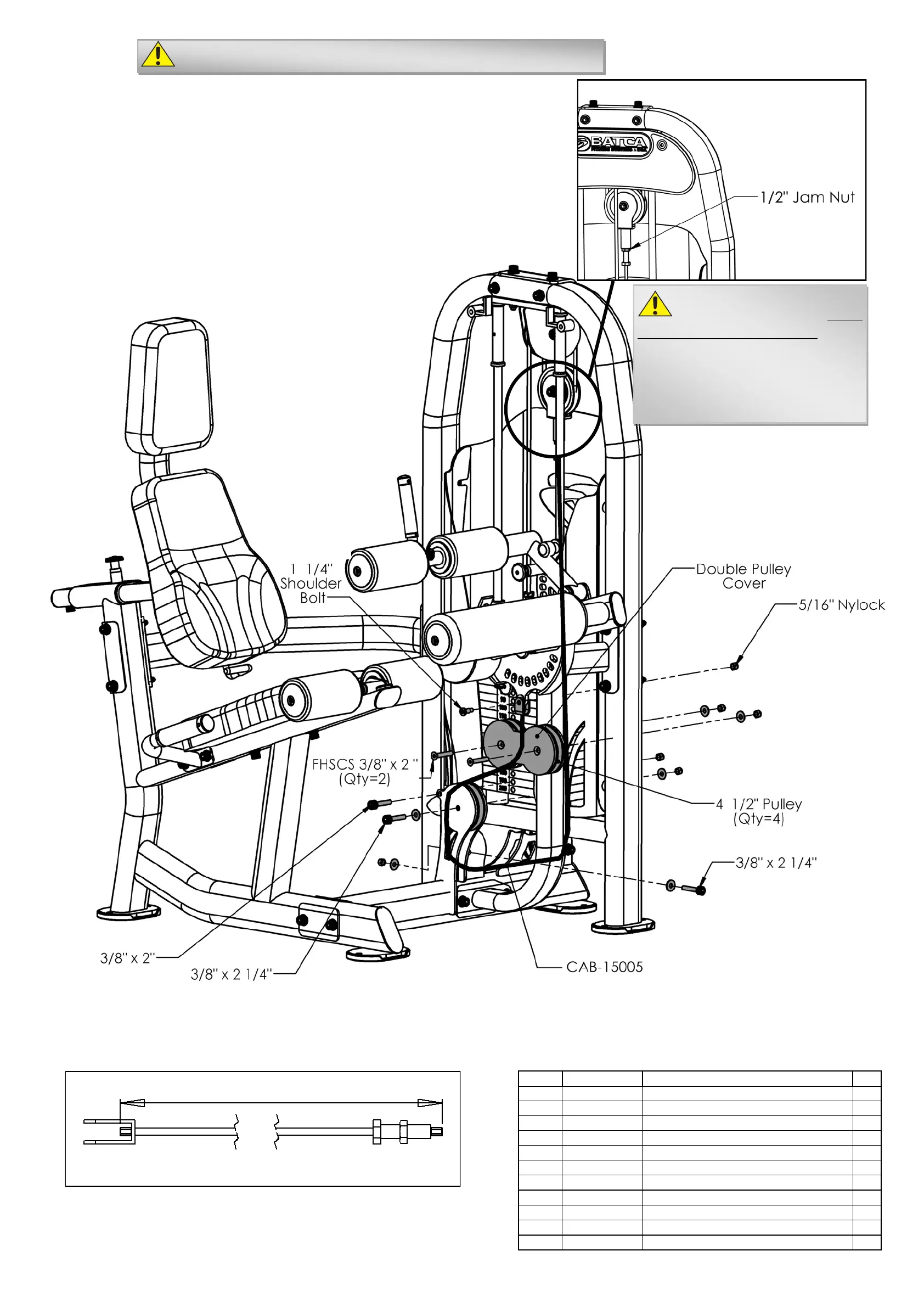

Step 11:
Make sure all bolts are tightened before moving on
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Note: The threaded bolt on
the end of the cable must
be threaded at least 1/2” in the
Free Floating Pulley. The bolt
must also be secured with a 1/2”
Jam Nut to ensure a safe and
proper connection.
To Next Page
