www.batcafitness.com 19 LD-4 Owner’s Manual
Free Floater
Final Assembly and Troubleshooting

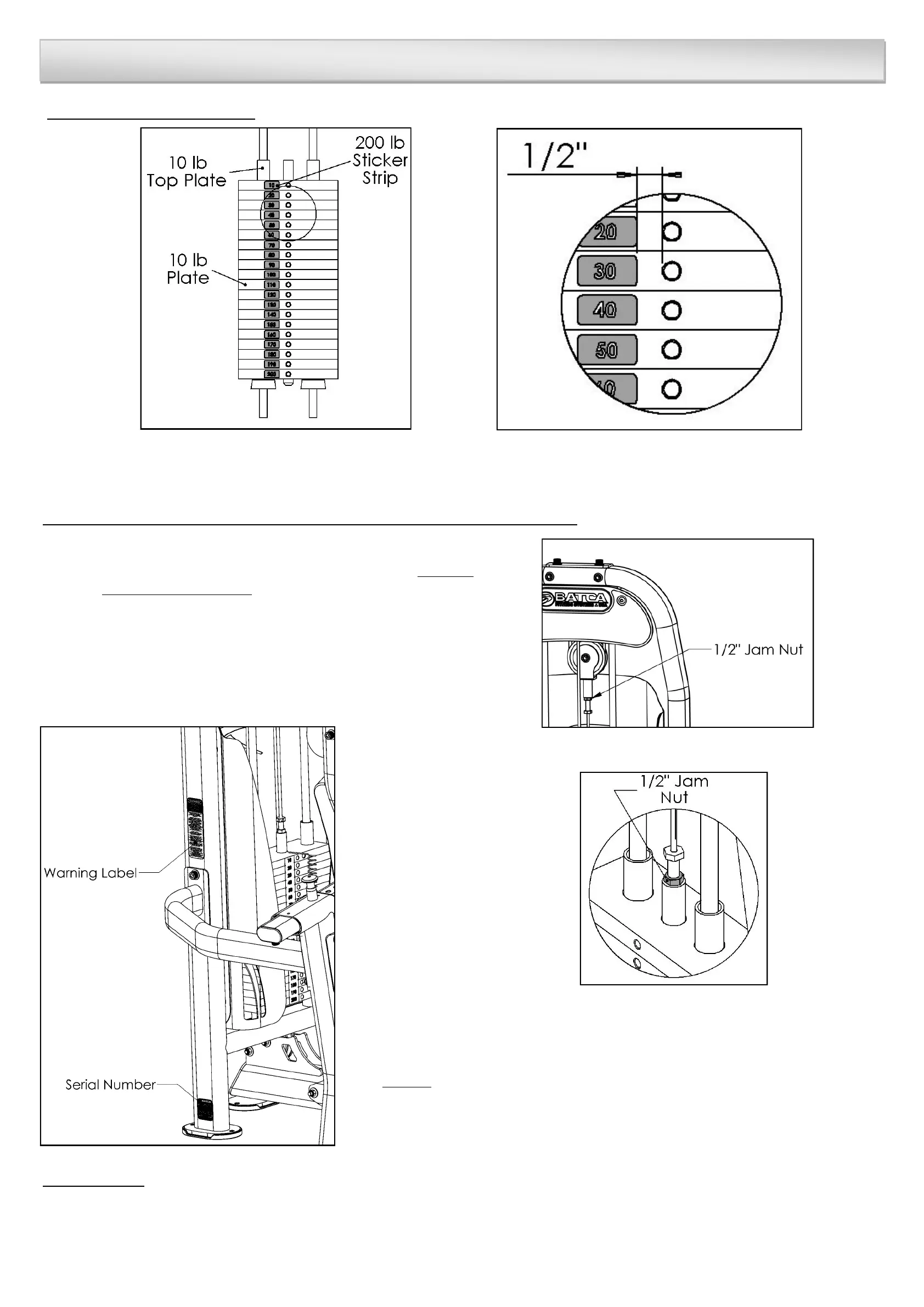

200lb Stack
Weight Stack Decals:
IMPORTANT - Check These Components Before Using
• Each Cable with a threaded bolt on either end must be
threaded at least 1/2” into its attachment, whether it be a
Free Floater, Lockout Free Floater, or the Top Plate of the
weight stack. Each must also be secured with a 1/2” Jam
Nut to ensure a safe and proper connection.
Top Plate
• Record your serial number on the front of this manual and keep for
your records. The serial number can be found on the side of the
cage as seen in the gure to the left.
Guide Rod
• Clean guide rods with a lint-free cloth and apply a thin layer of silicone lubricant (Part # BFH-50262)
to each guide rod. This will ensure a glass smooth performance from your weight stack.
